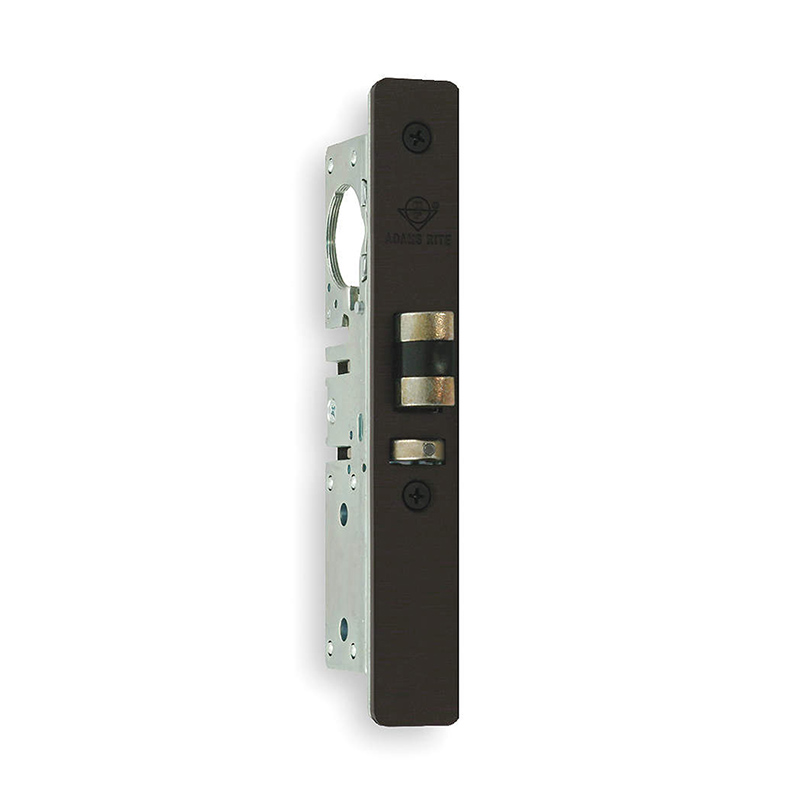

Adams Rite 4511-36-201-313 Mortise Lock

Adams Rite 4511-36-201-313 Mortise Lock

Turn key or operate handle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS dimensioned cam.

• Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
• Cylinder Backset: 7/8", 31/32", 1-1/8" or 1-1/2" only
• Case: Measures 1" x 5-13/16" x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
• Latchbolt: 1/2" x 1" x 1/2" throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
• Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent "loiding" or case-knife entry.
• Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush.
• Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam
• Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
• Standard Package: Individually boxed with strike, and machine screws for mounting. Cylinders, paddles, and handles available separately.
