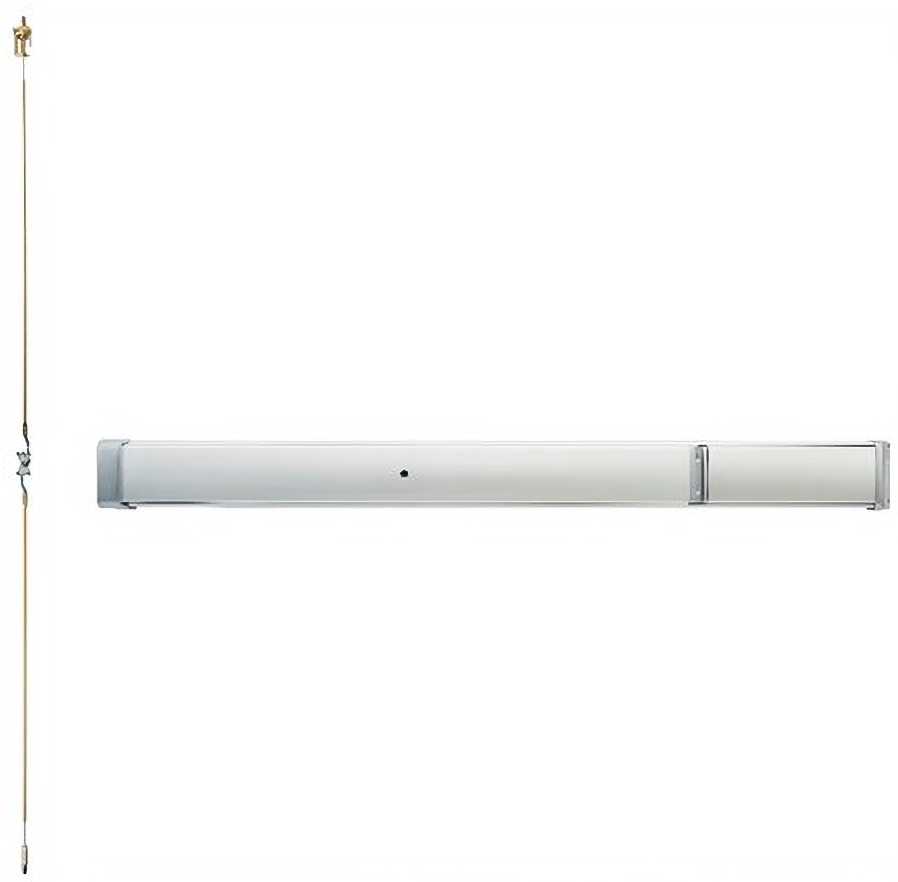

Adams Rite EX76-R628 Exit Device

0 Review(s) Write a Review
Your Price: $458.46
Retail Price:$849.00
You Save:$390.54(46%)

Adams Rite EX76-R628 Exit Device

EX Series Concealed Vertical Rod Exit Device, Regular, 36 In., Satin Aluminum Clear Anodized
Part Number: ADR_EX76R628
Availability: In Stock.
Adams Rite EX76-R628 Exit Device

EX Series Concealed Vertical Rod Exit Device, Regular, 36 In., Satin Aluminum Clear Anodized

  • Materials: Active pushbar and back bar made of extruded aluminum. Matching metal angled end caps.
  • Handing: Device is non-handed.
  • Door Thickness: Suits 1-3/4" standard, up to 2-3/4" door thickness. Thick door kit required when used with cylinder in doors over 1-3/4".
  • Door Height:
  • Standard unit adjustable to maximum 96" door height with device mounted at 34" centerline above finished floor, up to 62" above the selected bar height.
  • Tall door kit required when used in doors taller than 96". Maximum door height 120".
  • Bolt projection easily adjustable. Projection will change 1/8" for every 3 full rotations of the bolt, to a maximum of 5/8" throw.
  • Stile Width: Minimum 2-1/2" stile. Fits narrow, medium and wide stile aluminum doors.
  • Stile Wall: Suitable for doors with up to 3/16" stile wall thickness.
  • Bar Height: Standard model adjusts from 34" to 44" above finished floor.
  • Projection: 2-1/2" when fully projected, 1-3/4" when dogged.
  • Dogging: Standard dogging with 3/16" hex key.
  • Fasteners: Device mounted using standard type 'F' self-tapping screws and machine screws. Hardware is not visible from back when installed. Adhesive templates for mounting included.
  • End Caps: Mounting end cap with 1/4" overlap for cut coverage.
  • Universal Hardware Kit: Hardeware kit is suitable for aluminum, hollow metal, and wood door applications.
  • Strike:
  • Header strike made of hardened steel
  • When properly adjusted to 1/8" door gap the supplied curved strike functions to consistently engage the bolt, which enhances the reliability of the door latching function.
  • Trim: Compatible with Adams Rite 3080 Series Entry Trim and 3090 Series Entry Trim.
  • Noise Reduction:
  • Impact bumpers to reduce noise from the initial device activation
  • Return control to dampen the sound and control the device returning to its resting state
  • Horizontal and vertical guides decrease the scraping sound of the active push bar on the static back bar
  • Standard Package: Individually boxed.
  • Shipping weight: 11 lbs


Ship via: Can Ship UPS

Alternate Codes: EX76-R628, EX76R628

Device Length: 36 In.

Device Type: Concealed Vertical Rod

Door Material: Hollow Metal

Door Thickness: 1-3/4 In.

Finish: 628/US28

Finish Description: Satin Aluminum Clear Anodized

Fire Rated: No

Hand: Non-Handed

Includes Trim: No

Physical Appearance: Narrow Stile Pushpad

Reversible: Yes

Series: EX Series Exit Devices

Subtype: Exit Device
