Alarm Lock DL1200ET/10B Access Control

Alarm Lock DL1200ET/10B Access Control

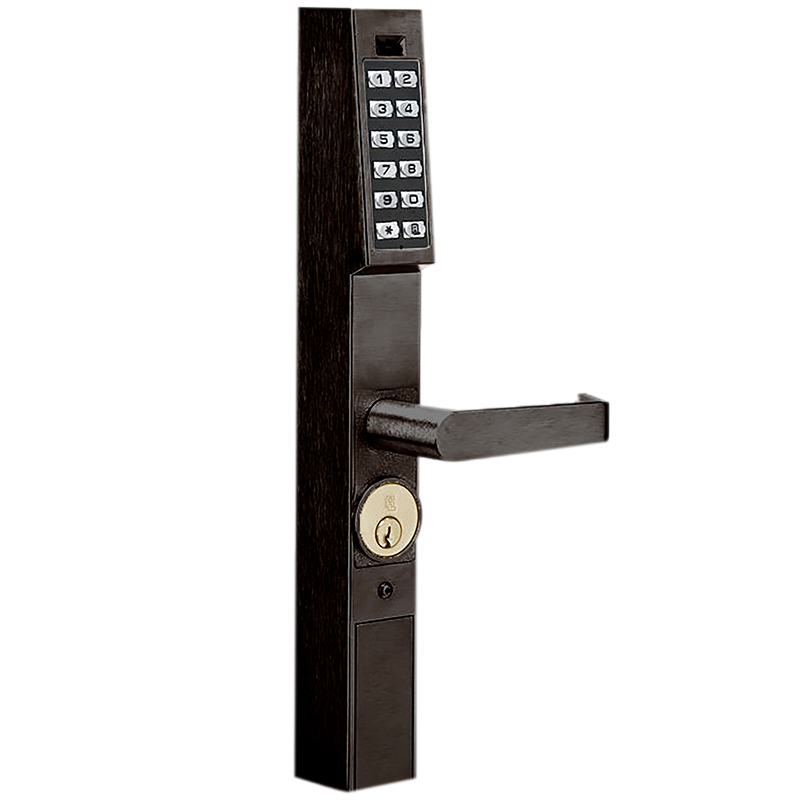

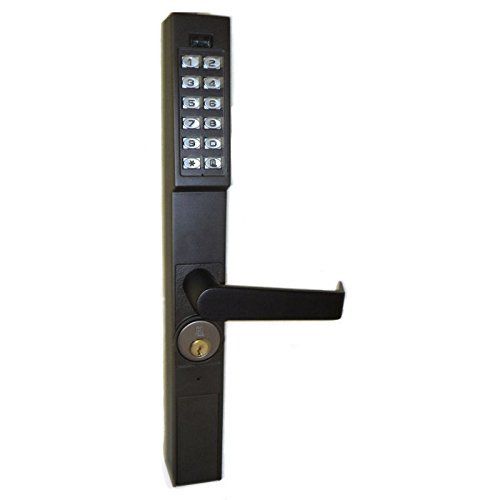

Alarm Lock DL1200ET10B Trilogy Narrow Stile Digital Lock ET Trim Oil Rubbed Bronze Finish

• Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
• Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
• DL1200 supports 100 3-6 digit PIN user codes, fingertip programmable
• DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
• Weatherproof -31 deg. to +151 deg.F (-35 deg. to +66 deg.C)
• Long-life, battery- operated for 100,000 and 80,000 cycles respectively, 2 lithium 3V batteries, supplied; low battery alert
• Compact styling, 14-3/8"H x 1-5/8"D x 1-3/4"W
• Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
• Backsets 31/32", 1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
• Non-handed; fully field-reversible
• Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze
• 100 3-6 Digit PIN User Codes
• Finger Tip Programmable
• Battery Operated for 100,000 Cycles
• 1-1/4" Key Override
• Fully Reversible

Resources

• DL1200ET Programming Instructions
• DL-Windows Event Log Viewer: "Still Locked _ No Override" Event (Tech Tip)
• DL1200ET, DL1300ET, PDL1300ET Installation Instructions
• Trilogy Narrow Stile marketing materials
• School Brochure (ALA491).
• DL-Windows V5.0.0 Initial Release (Changes and New Features)
• DL-Windows User Manual
• DL-Windows 4.1 Upgrade Notice
• DL-Windows for Trilogy Networx V5 User's Guide
• DL-WINDOWS v3.5 Upgrade Information
• Trilogy Networx Locks DL-Windows Quick Start
• DL-Windows Timezone Scheduling Scenario Examples (v4.1x)
• 2019 Alarm Lock Price Book
• DL-Windows V4.0.1 User Guide
• Health Care Brochure (ALA488)
• DL-Windows 3.5 (or Higher) Expanded Features
• DL-Windows Security Password Recommendation
• DL-Windows V5 User Guide
• DL-Windows for Trilogy Networx V4 User's Guide
• DL-Windows Holiday Planning Worksheet
• Trilogy Narrow Stile Marketing Materials
• 2020 Alarm Lock Product Catalog
• Alarm Lock Product Catalog
