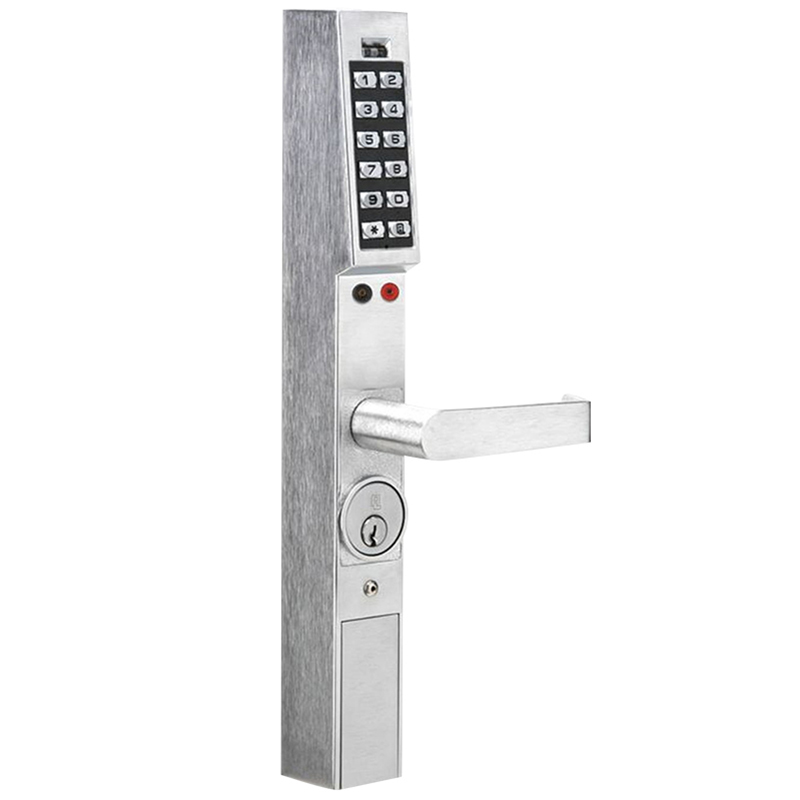

Alarm Lock DL1300/26D1 Access Control

Alarm Lock DL1300/26D1 Access Control

Trilogy Narrow Stile Locks Aluminum door retrofit outside trim for Adam Rite latch locks. Digital Keypad 2000 users 40,000 event audit trail Vandal-resistant Weatherproof Non-handed, fully field-reversible. PC & Keypad programable

• Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
• Add keyless convenience to mechanical latch locks from Trilogy's all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
• DL1200 supports 100 3-6 digit PIN user codes , fingertip programmable
• DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
• Weatherproof -31 deg. to +151 deg.F (-35 deg. to +66 deg.C)
• Long-life, battery- operated for 100,000 and 80,000 cycles respectively, on 2 lithium 3V batteries, supplied; low battery alert
• Compact styling 14-3/8"H x 1-5/8"D x 1-3/4"W
• Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
• Backsets 31/32",1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
• Non-handed; fully field-reversible
• Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze
