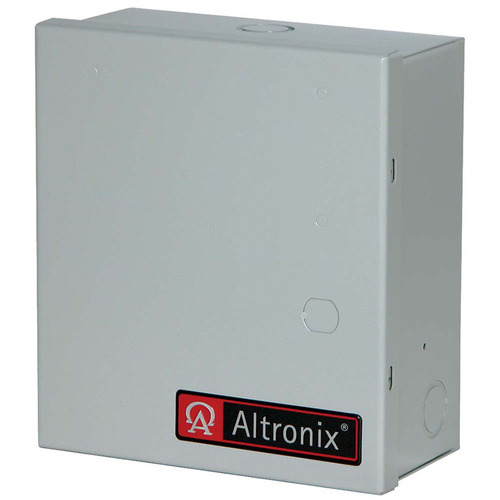

Altronix AL624 Power Supply

Altronix AL624 Power Supply

Model AL624 power supply/charger converts a low voltage AC input to a 1.2A of continuous supply current 6VDC or 12VDC or .75A of continuous supply current 24VDC. Model DPS1 is a DIN Rail Mount version of this product.

• Input: 16VAC to 24VAC, 20VA to 40VA (Transformer Selection Table).
• 16VAC to 24VAC, 20VA to 40VA (Transformer Selection Table).
• Output: Switch selectable 6VDC-12VDC-24VDC. 6VDC or 12VDC @ 1.2 amp supply current or 24VDC @ 0.75 amp supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.
• Switch selectable 6VDC-12VDC-24VDC.
• 6VDC or 12VDC @ 1.2 amp supply current or 24VDC @ 0.75 amp supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current 0.3 amp. PTC battery protection.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.3 amp.
• PTC battery protection.
• Visual Indicators: AC input and DC output LED indicators.
• AC input and DC output LED indicators.
