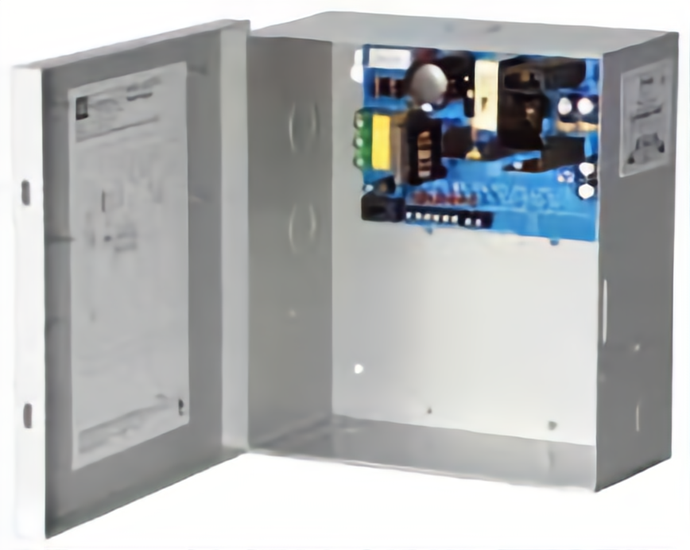

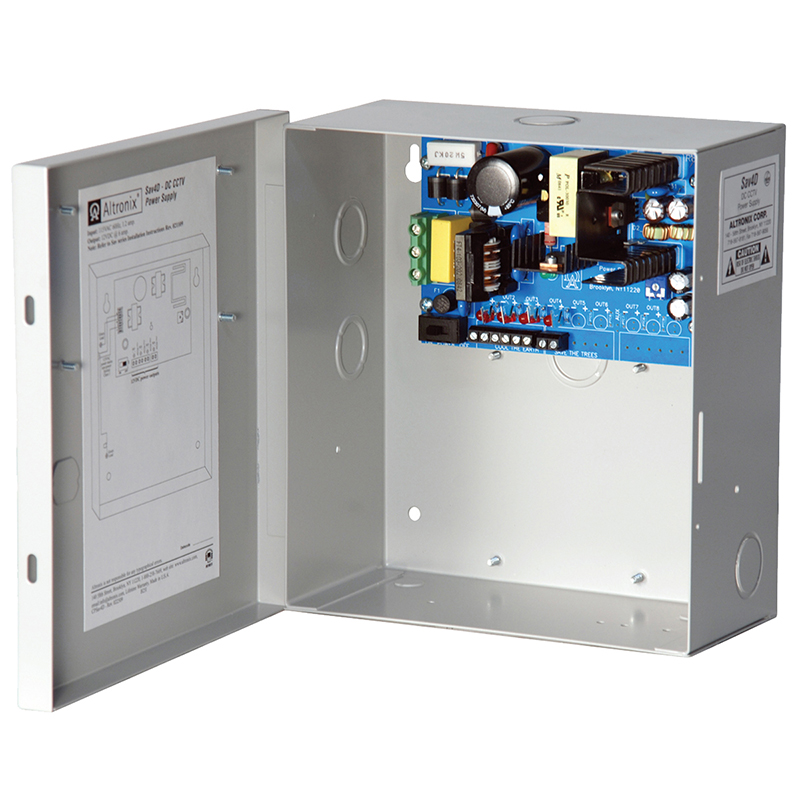

Altronix SAV4D Power Supply

• Input:
• 115VAC 60Hz, 1.5 amp /230VAC 50Hz, 0.75 amp.
• Output:
• 12VDC @ 5 amp total output current (0.27 amp per device, 2.5 amp max.).
• Four (4) Class 2 Rated PTC protected power limited outputs.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Electrical:
• Operating temperature: 0° C to 49° C ambient.
• 30.71 BTU/Hr.
• System AC input VA requirement: 172.5VA.
• Features:
• Four (4) power LEDs.
• Field installable 3-wire line cord with integral strain relief.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.
• Mechanical:
• NEMA1 enclosure.
• Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
• Product weight (approx.): 4.1 lbs. (1.86 kg).
• Shipping weight (approx.): 4.6 lbs. (2.09 kg).
