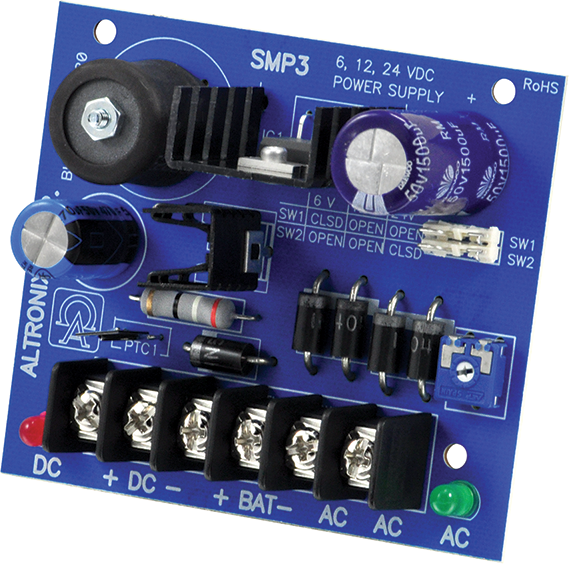

Altronix SMP3 Power Supply

Altronix SMP3 Power Supply

6VDC, 12VDC or 24VDC output @ 2.5 amp supply current. Filtered and electronically regulated output. AC input and DC output LED indicators.

• Input:
• 16VAC to 28VAC.
• Output:
• 6VDC, 12VDC or 24VDC selectable output.
• 2.5 amp continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.3 amp.
• Battery short circuit protection (circuit breaker).
• Visual Indicators:
• AC input and DC output LED indicators.
• Electrical:
• Operating temperature: —20° C to 49° C ambient.
• BTU/Hr.:
• 6VDC: 7.68 BTU/Hr.
• 12VDC: 15.35 BTU/Hr.
• 24VDC: 30.71 BTU/Hr.
• System AC input VA requirement:
• 6VDC/12VDC: 55.2VA.
• 24VDC: 115VA.
• Features:
• Extremely compact design.
• Includes battery leads.
• Snap Track compatible (order Altronix model number ST3).
• Mechanical:
• Board Dimensions (L x W x H approx.): 3.5" x 3" x 2" (88.9mm x 76.2mm x 50.8mm)
• Product weight (approx.): 0.25 lbs. (0.113 kg).
• Shipping weight (approx.): 0.35 lbs. (0.158 kg).
