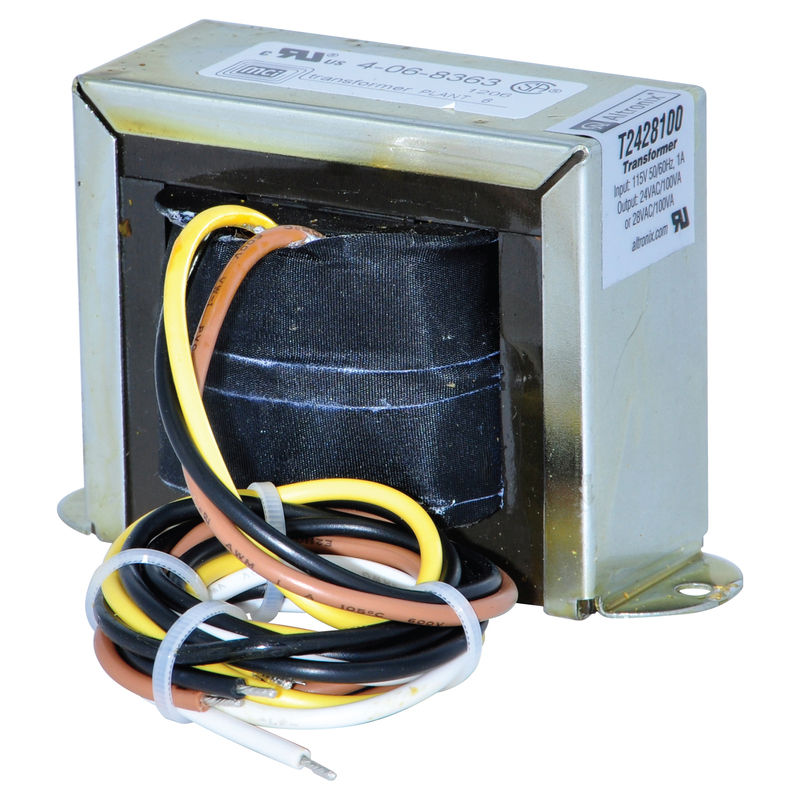

Altronix T2428100 Power Supply

Altronix T2428100 Power Supply

T2428100 open frame transformer provides power for electronic power supplies and equipment including security, access control and surveillance devices. This model replaces T2885

• Input
• 115VAC 50/60 Hz, 1A.
• Output
• 24VAC/100VA (4A.) or 28VAC/100VA (3.5A.) supply current.
• Temperature
• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: 85% +/- 5%.
• BTU/Hr. (approx.): 52 BTU/Hr.
• System AC input VA requirement: 115VA.
• Dimensions (approximate):
• 2.6"W x 4"L x 2.5"H (66 mm W x 102 mm L x 64 mm H).
• Weights (approximate):
• Product Weigtht: 2.95 Lbs. (1.34 kg).
• Shipping Weigtht: 3.55 Lbs. (1.61 kg).
