BEA 10MS21HS1 Activation Plates

BEA 10MS21HS1 Activation Plates

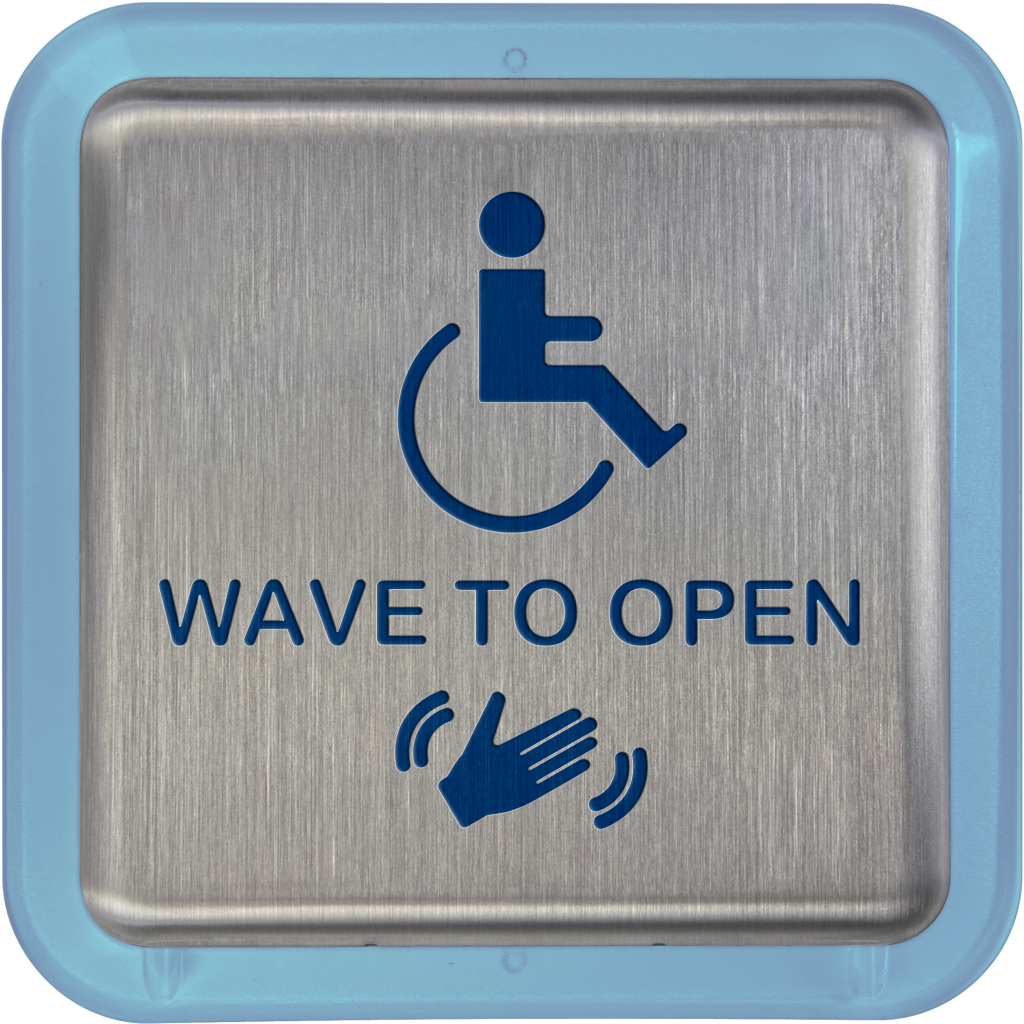

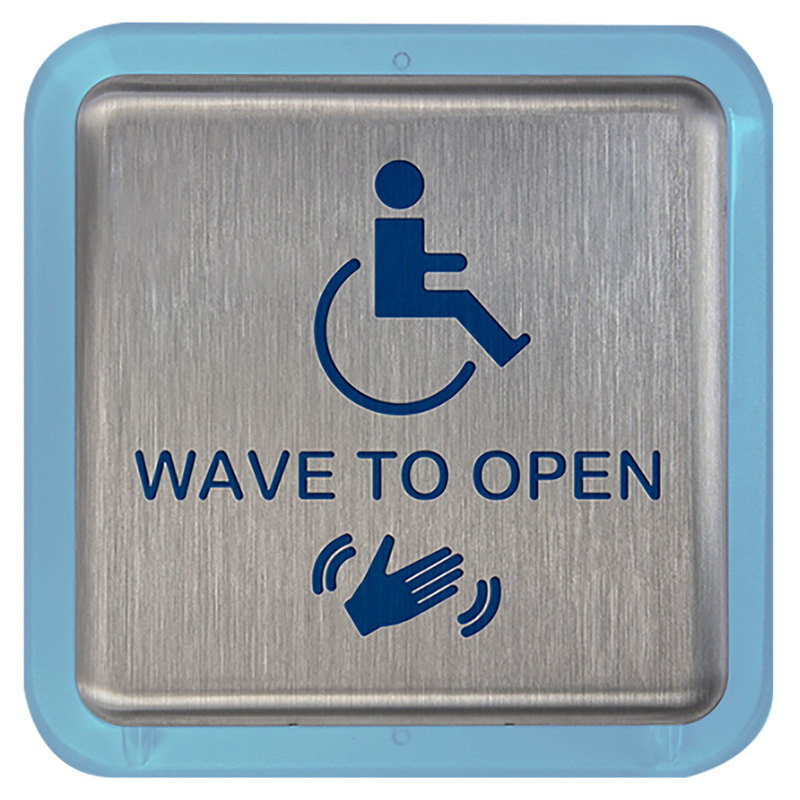

The MS21 is a state-of-the-art touchless activation plate that utilizes capacitance technology to detect and trigger activation in automatic doors. The low profile, hands-free MS21 includes a stainless steel faceplate and illuminated LED mounting ring for maximum durability and visibility. Other innovative features include adjustable detection zones, audible alerts, NEMA 4-rated enclosure and customizable faceplate text and logos.

• 4.75" diameter plate with text and logo
• Temper persistent - No visible screws
• Extremely thin profile
• Activation range: from 0.5" to 5"
• Min distance of 0 inches (Touch)
• Max distance of 5 inches (Touchless)
• Utilizes Capacitance Technology
• LED indicator illuminates the mounting ring, increasing visibility and awareness
• Stainless steel faceplate reduces deterioration and damage caused by liquids and cleaning agents
• Low profile, beveled design reduces accidental damage
• Power: 12-24V AC/DC
