Richelieu 100T90 Lid Stay

Richelieu 100T90 Lid Stay

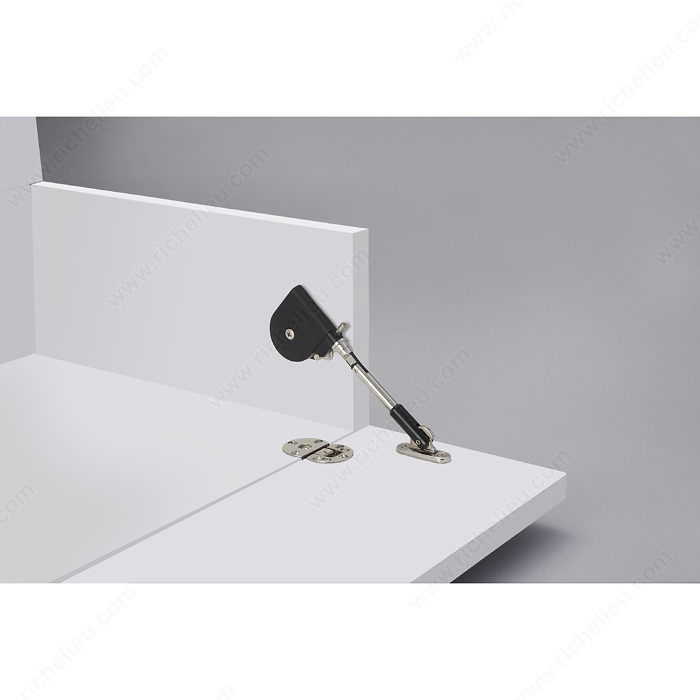

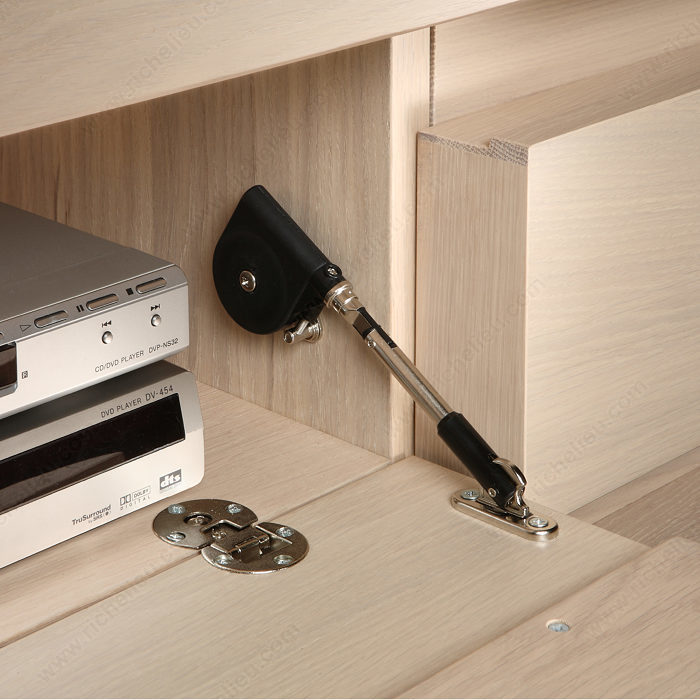

Soft-down lid stay. For DOWNWARD-OPENING FLAP DOOR with piano, butt or drop hinges.
Short arm type designed for short door applications.
Non-Handed.

Important information

Torque calculation:
Torque = Door height x 1/2 x Door weight
Per piece: 0.5 to 12.0 kg.cm (0.45 to 10.4 lbs.inch
Per pair: 10.0 to 24.0 kg.cm (8.7 to 20.1 lbs.inch)

Application

For downward-opening flap doors with piano, butt, or drop hinges.
Short arm designed for low-height door applications.

Resources

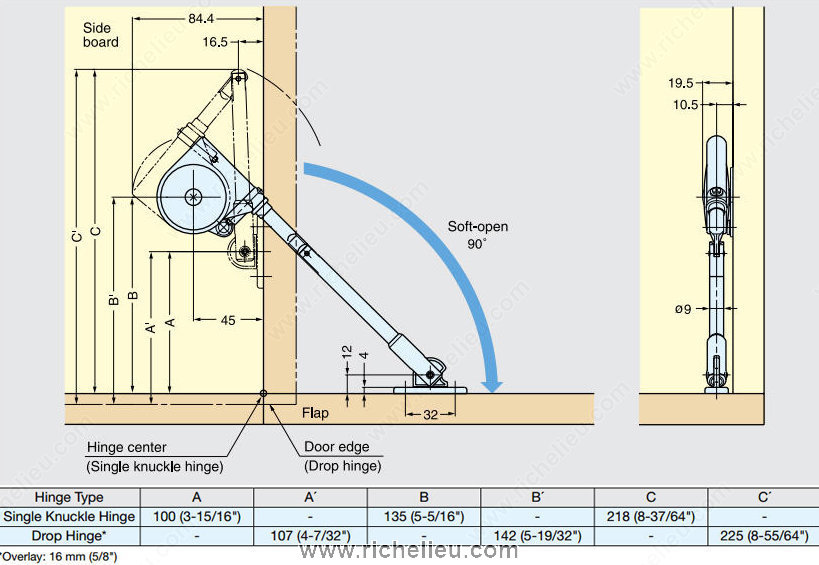

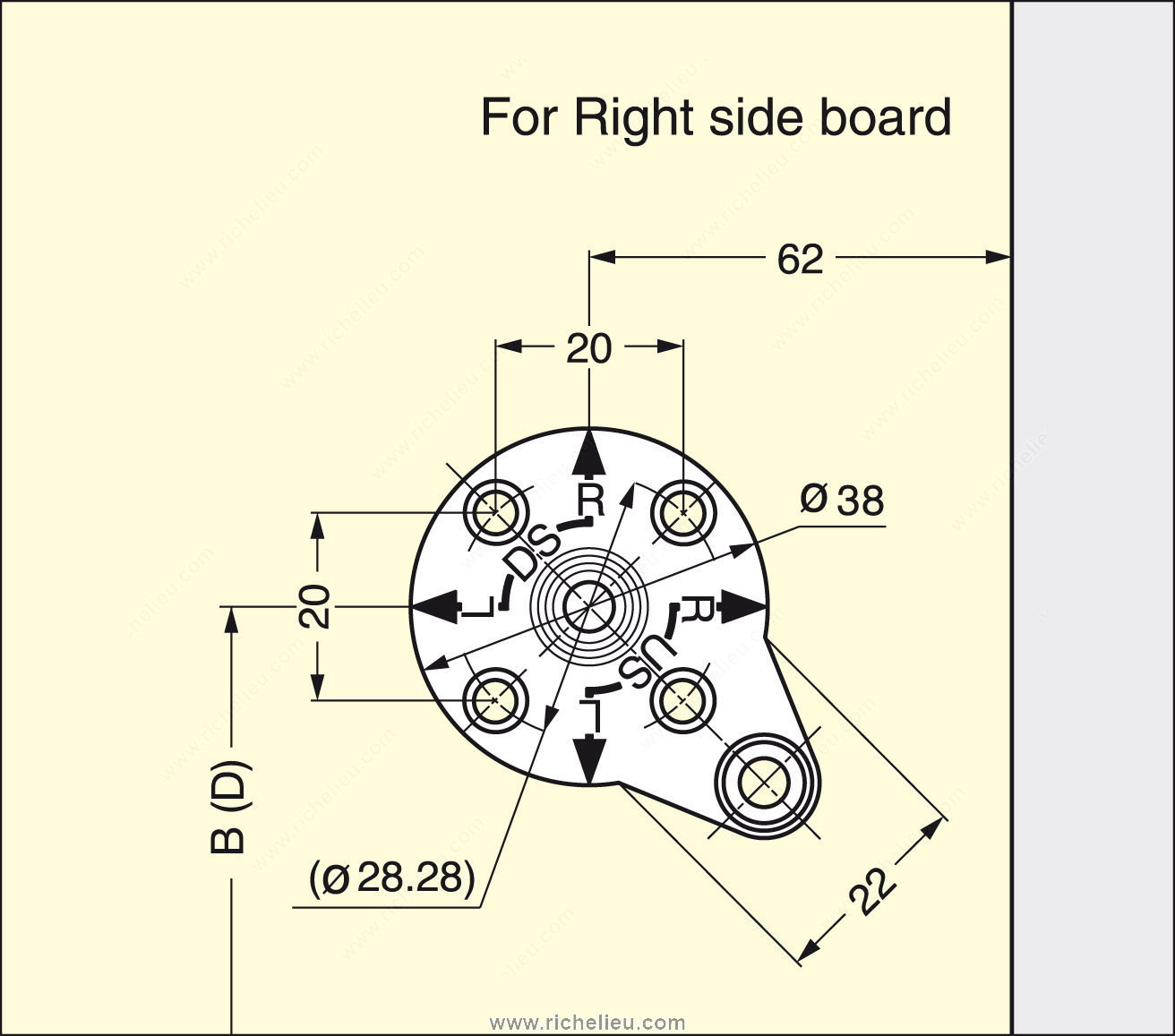

• Line art
• Line art
