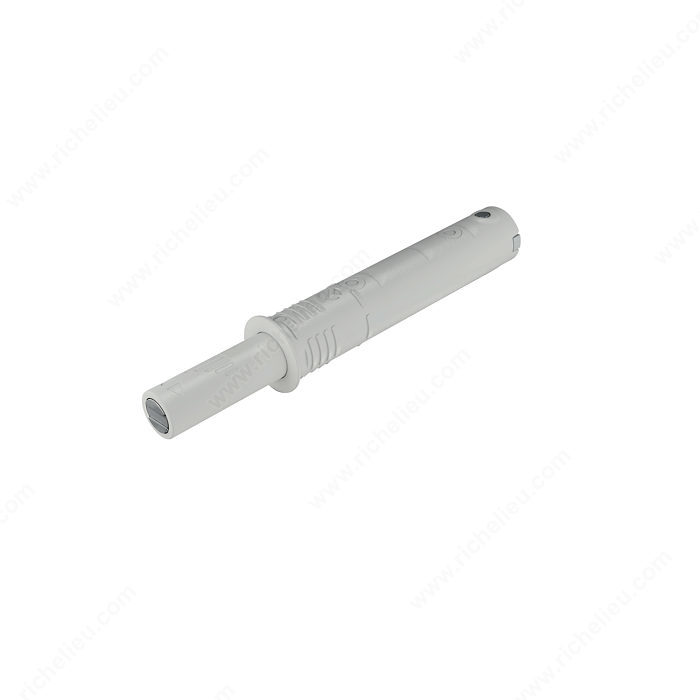

Richelieu 11828100 K PUSH TECH - Push-to-Open Motion

Richelieu 11828100 K PUSH TECH - Push-to-Open Motion

Push to Open Technology K Push Tech is the perfect new silent automatic opening system for doors without handles or knobs. The perfect solution for all "push-to-open" cabinet doors.

Available with:
- Buffer for spring hinges
- Magnet for unsprung or negative hinges

The visible version comes with an adapter housing and screws (2).

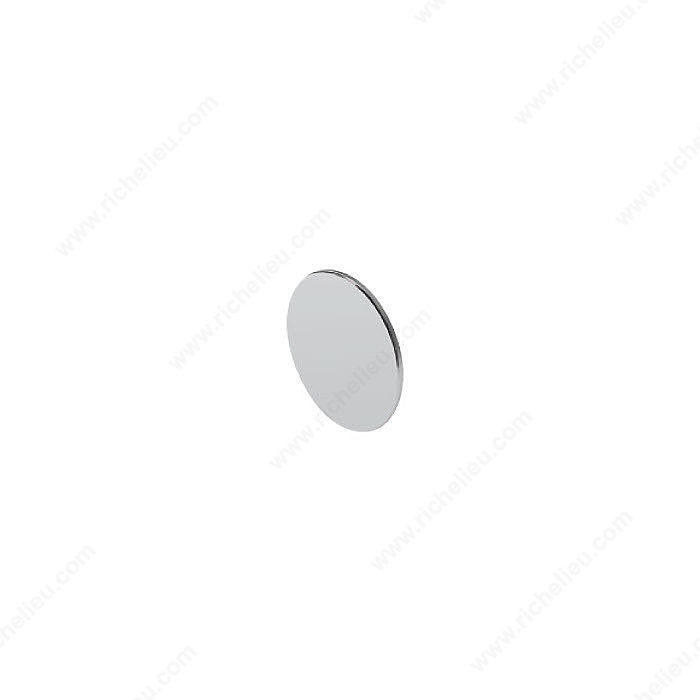

The concealed version comes with a magnet door plate.

Advantages and benefits

-Wide adjustment features -0.45/6 mm.
-Click-stop indicates the maximum adjustment range.
-The gap between door and cabinet is reduced to 1.4 mm.
-A special inner mechanism provides a silent yet powerful utilization, with long life.
-Fresh and clean new captivating design.
-Light gray and black anthracite finishes matching all styles and colors.
-Easy installation.

Hidden version:

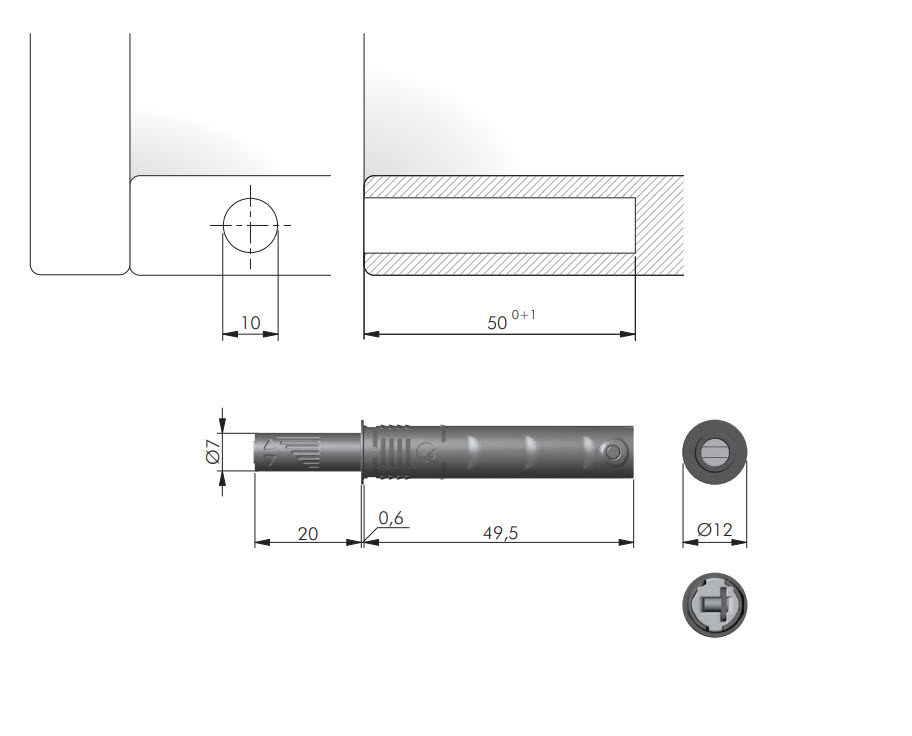

Drill a 10-mm diameter hole

Important information

- Body is made of engineering plastic.
- Interior mechanism is made of steel.
- Visible version: 2 screws included.

Application

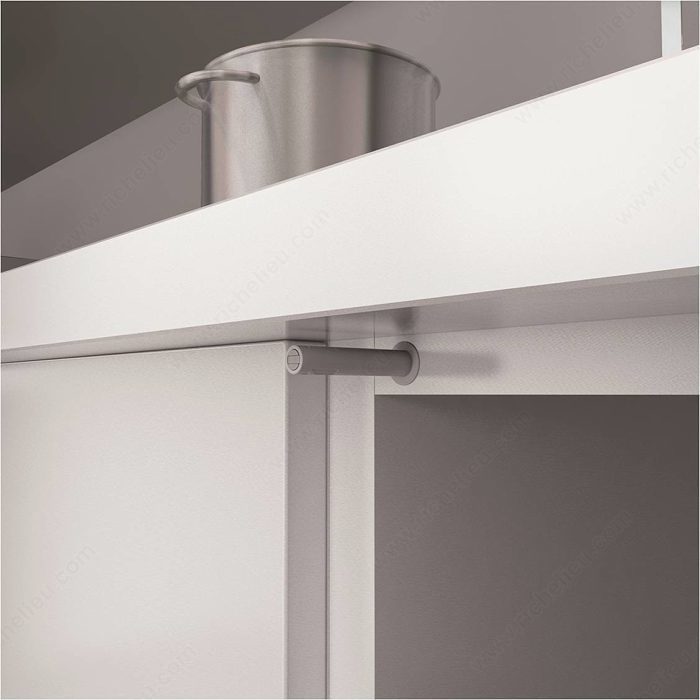

The perfect solution for all "push to open" cabinet doors.

Resources

• Line art
• Instructions
