Richelieu 20K1101 Aventos Lift Mechanism HK-XS

Richelieu 20K1101 Aventos Lift Mechanism HK-XS

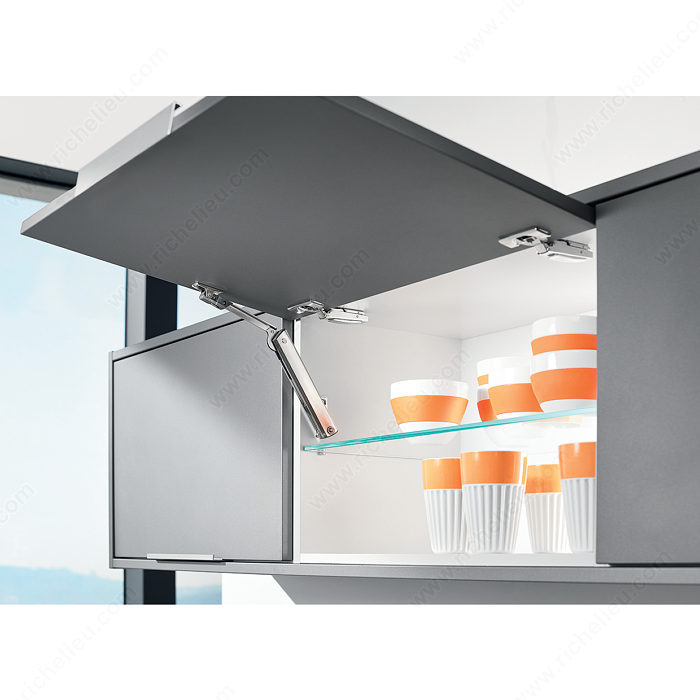

Aventos HK-XS is a smaller, cost-effective lift system which can be used in applications ranging from shallow depth wall cabinets above a refrigerator to pantries - all with varying front designs and materials.

Advantages and benefits

- Suitable for wall cabinets and pantries.
- Height: between 240 and 600 mm.
- Minimum interior depth: 125 mm.
- Closes silently and effortlessly in conjunction with Clip top Blumotion hinges.
- Smooth, soft-close feature. Requires very light effort to open.
- Easy adjustment. Simple and mostly tool-free assembly.
- Can be installed on either side (one unit) or on both sides (requires two units).
- High-end design.

Important information

Power factor LF = cabinet height KH (mm) x front weight including double handle weight (kg).

If this mechanism is used on both ends of the door, the power factor is doubled.

For applications where an individual lift mechanism will be operating at the limit of its specifications, a trial/test application is recommended.
