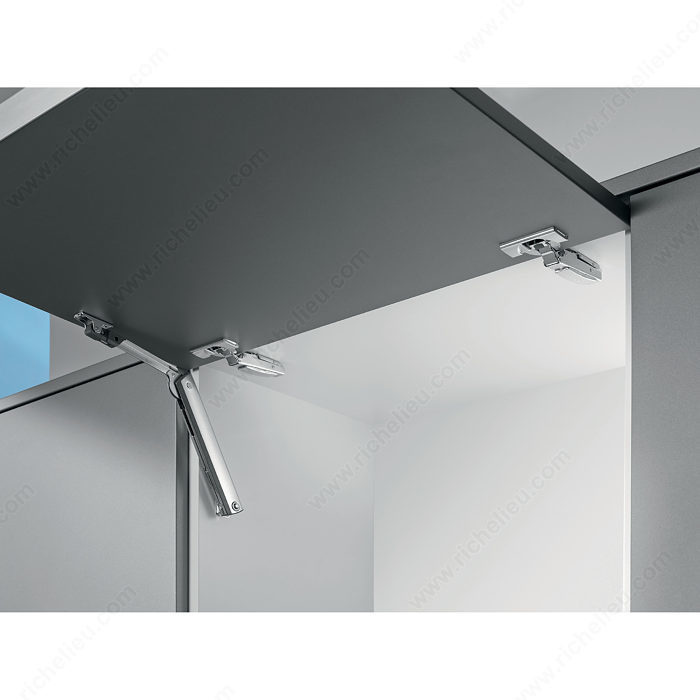

Richelieu 20K1501T Aventos HK-XS Mechanism for Tip-On Door

Richelieu 20K1501T Aventos HK-XS Mechanism for Tip-On Door

Aventos HK-XS is a smaller, cost-effective lift system which can be used in applications ranging from shallow-depth cabinets above a refrigerator, to pantries - all with varying front designs and materials.

Advantages and benefits

- Designed for tall furniture and high cabinets.
- Height: between 240 and 600 mm.
- Minimum interior depth: 125 mm.
- Easy-open arm: light pressure on face of door causes it to open upwards.
- Arm tension is screw-adjustable
- Easy installation and adjustment: almost no tools required.
- Can be installed on either side (one unit) or on both sides (requires two units).
- High-end design.

Important information

Power factor LF = cabinet height KH (mm) x front weight inluding double handle weight (kg).

The power factor is doubled when used on two sides.

For installations where an individual lift mechanism will be operating at the limits of its specifications, a trial application/test is recommended.

Resources

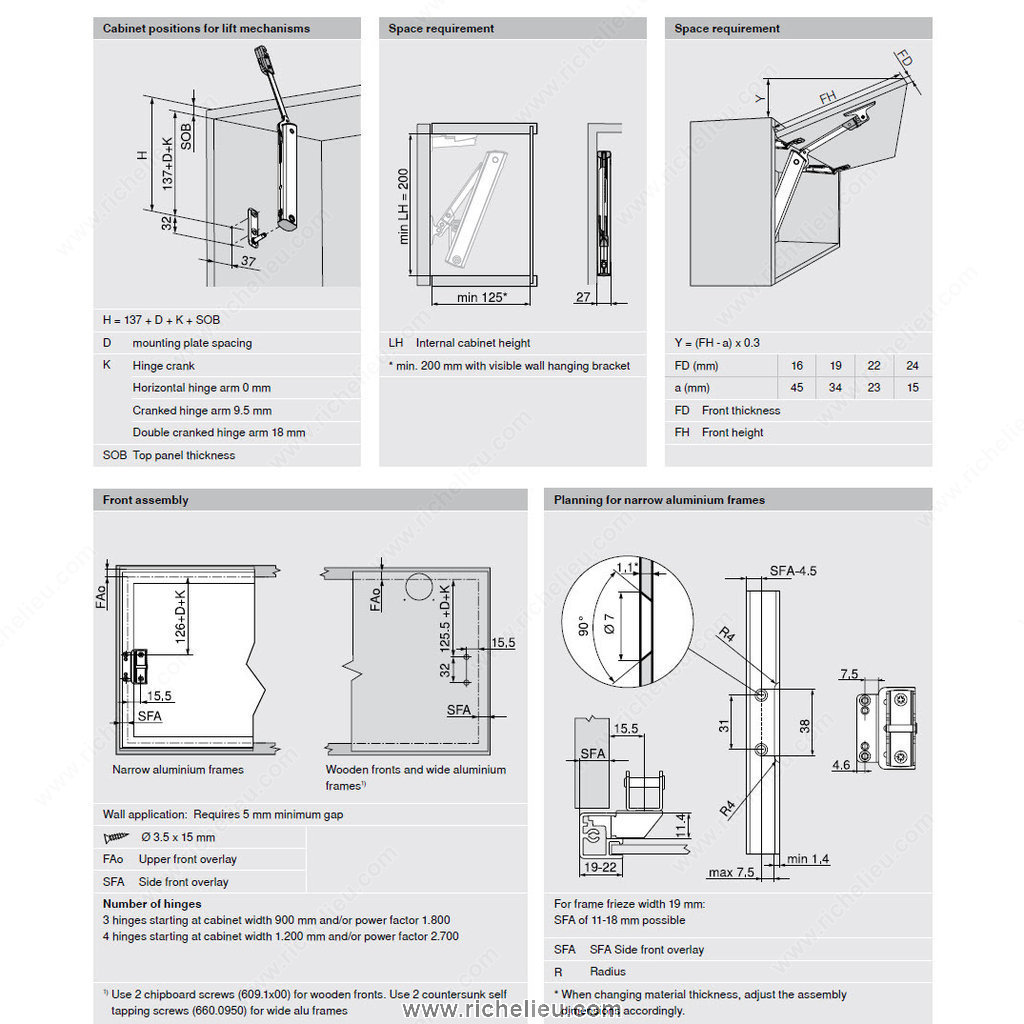

• Line art

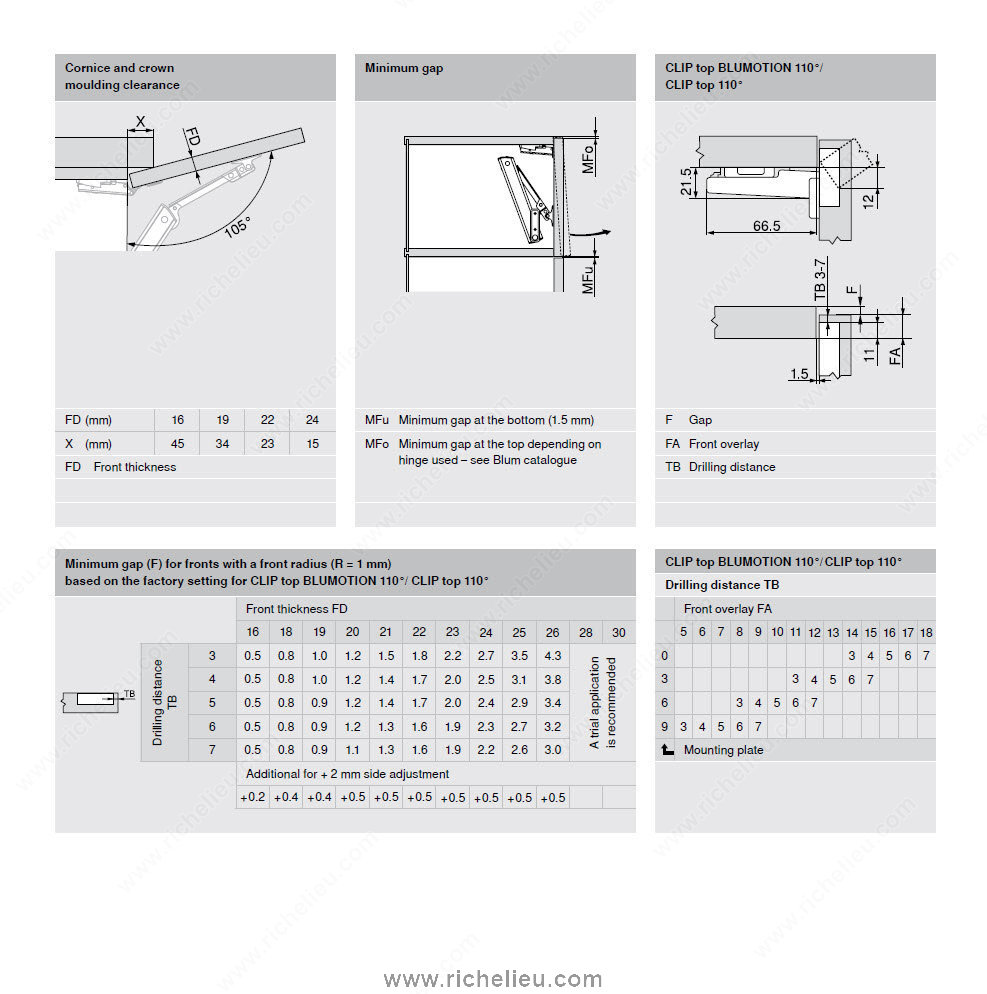

• Line art

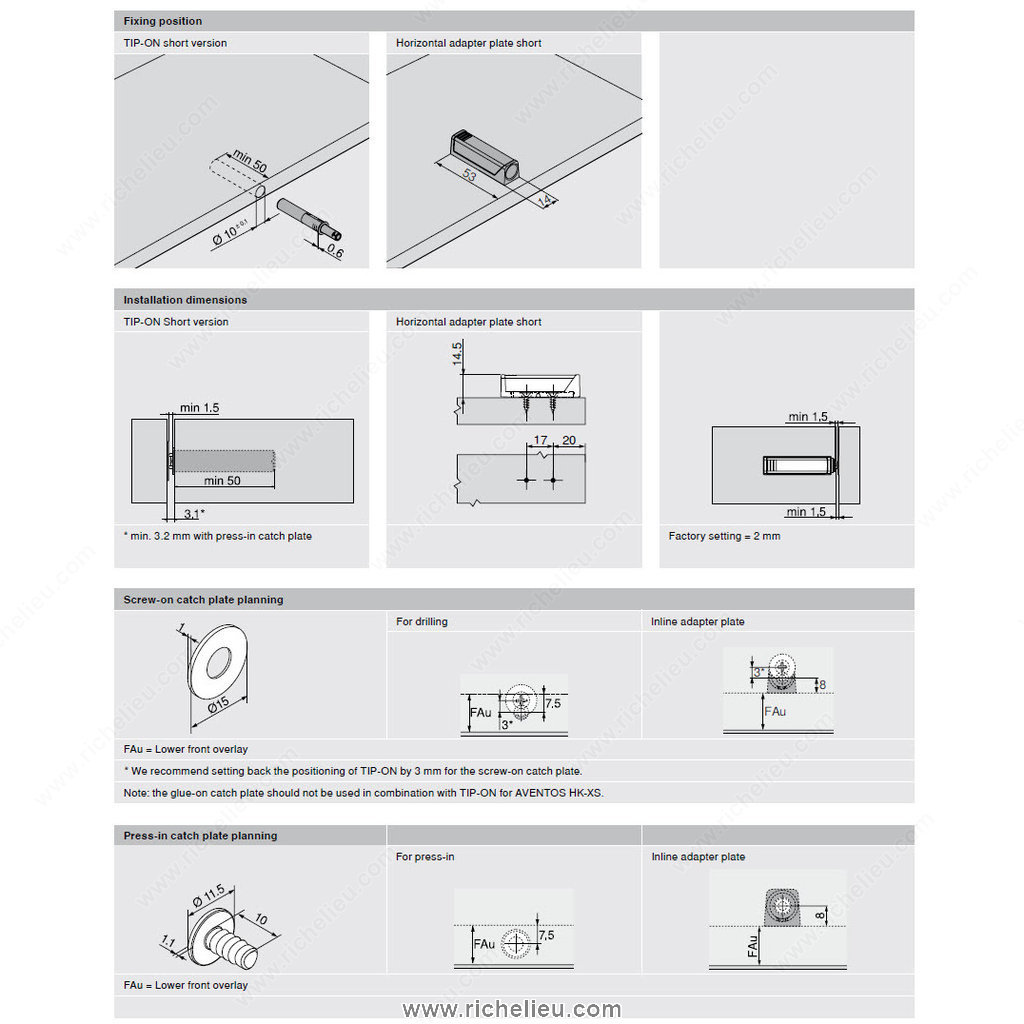

• Line art
