Richelieu 22K2500 AVENTOS HK top Mechanism

Richelieu 22K2500 AVENTOS HK top Mechanism

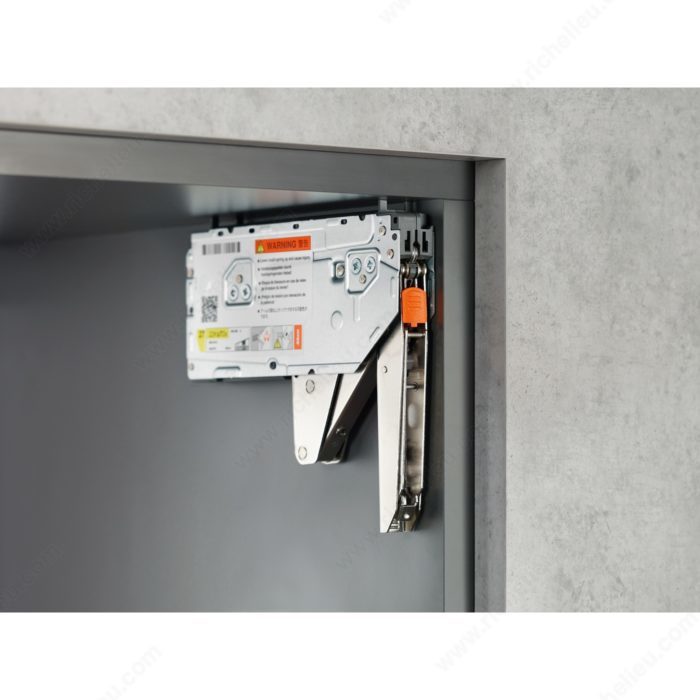

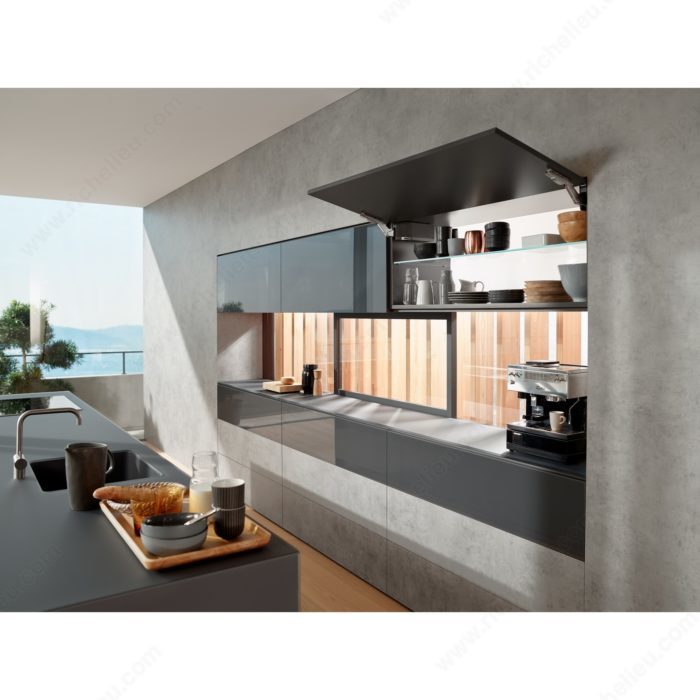

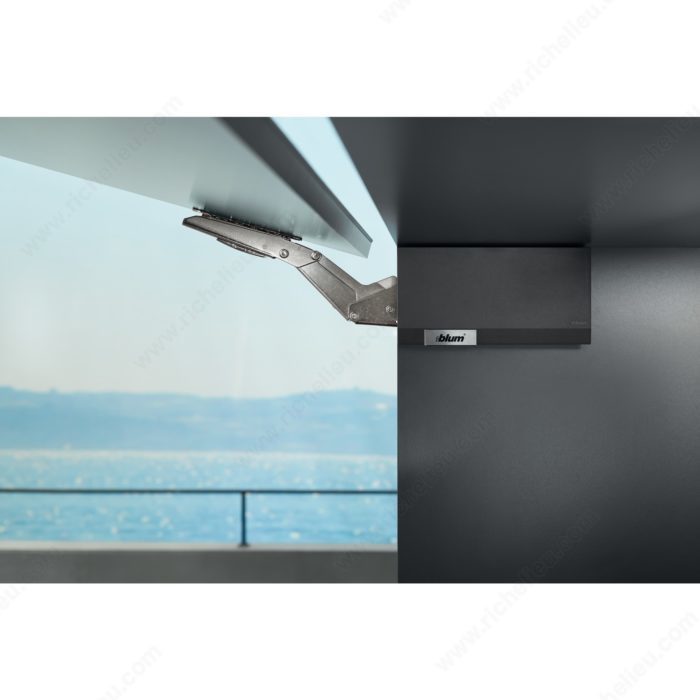

Linear design AVENTOS HK top blends discreetly into top wall cabinets, thus placing even greater focus on the design of the furniture. The size of AVENTOS HK top makes it ideal for small cabinets. This compact yet powerful fitting is even suitable for large wall cabinets. The opening angle stop is already integrated with AVENTOS HK top. The opening distance of the front is infinitely variable and can therefore be set exactly as required.

Advantages and benefits

An innovative mechanism prevents the lever arm from folding out unintentionally. This helps ensure safe installation.
Adjust the lift mechanism precisely to the weight of the front and the stay lift remains exactly where you want it to, meaning it is always easy to reach.
Two different lift mechanisms are available: with positioning template or with pre-mounted system screws (reversible).
AVENTOS HK top offers many opportunities for creating a space that's even more unique.

Important information

Please consult the supplier's documents in order to properly calculate the Power factor (LF) required for your project. Always round up to the highest number for your selection.

Formula:
(LF) = Cabinet height (KH) mm x Front weight including double handle weight (kg)

Blum recommends using a torque screwdriver. This type of screwdriver is not available yet from Richelieu.

Application

For door thicknesses up to 30 mm
Distinctive style in cabinet interior
Unrestricted range of motion
Ample storage space
Enhanced ease of use

Included products

HK top with pre-mounted system Euro screws are reversible (four drill holes in the 32 mm system are required).
HK top with the positioning template are not reversible (no pre-drilling necessary).
