Automatic and adjustable opening The K12 pneumatic suspension arm is a completely new way to open flap doors. It is specially designed for standard automatic drilling processes. The arm can be installed directly on solid doors or wider aluminum door frames.

Advantages and benefits

- Available in three lengths: 164 mm (6-7/16"), 244 mm (9-5/8") and 355 mm (14"), adapted for small, medium and large doors.
- For doors with an aluminum frame, a special adapter (#100013180) is sold separately.
- Enables a smooth and continuous movement of the door until it is fully opened.
- A rotating ring is integrated in the arm to allow an adjustment of the opening angle. Ideal for when several doors are aligned.
- The installation does not require additional screws, saving time and producing a more aesthetically pleasing look.
- All parts are made of a nickel-zinc alloy, steel and plastic.
- Minimalist design: 13 mm (33/64") diameter cylinder.
- Exclusive to Richelieu.

Important information

Please refer to the technical documents for additional information.

** Recommended drilling diameter for side panel: 9/16 in (15 mm) **

Application

For upward- or downward-opening doors

Included products

Two mounting options:
- Screw-on
- With dowel

Resources

• Line art
• Instructions

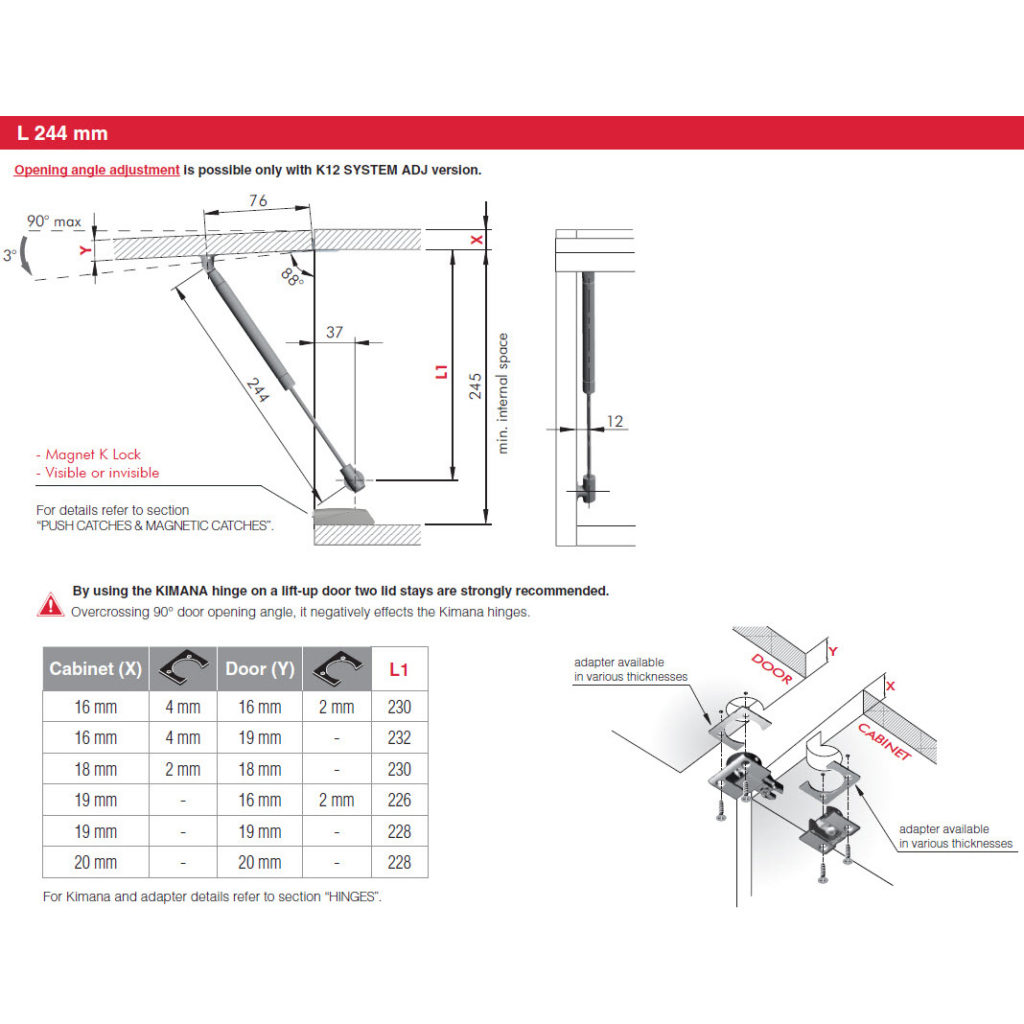

• Drilling Template with Kimana Hinges - Handle Opening

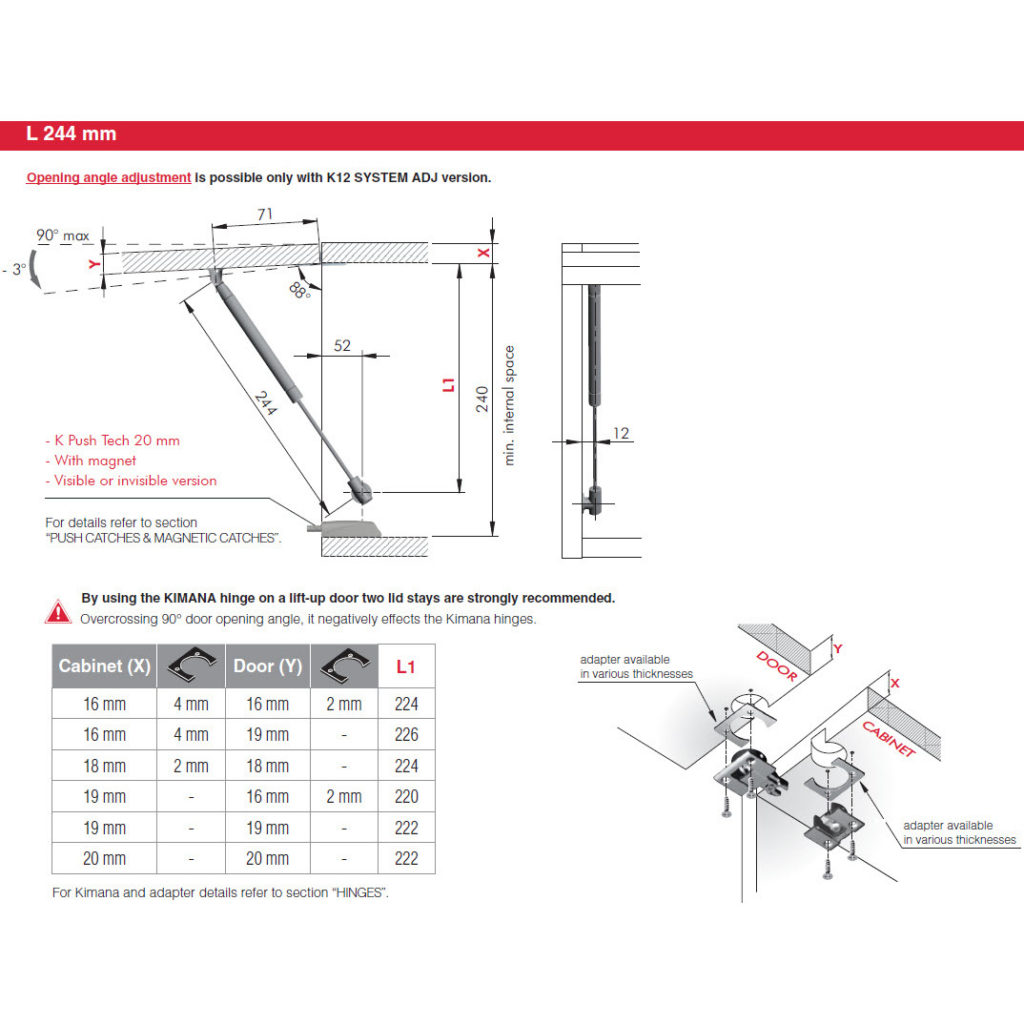

• Drilling Template with Kimana Hinges - Push-to-Open

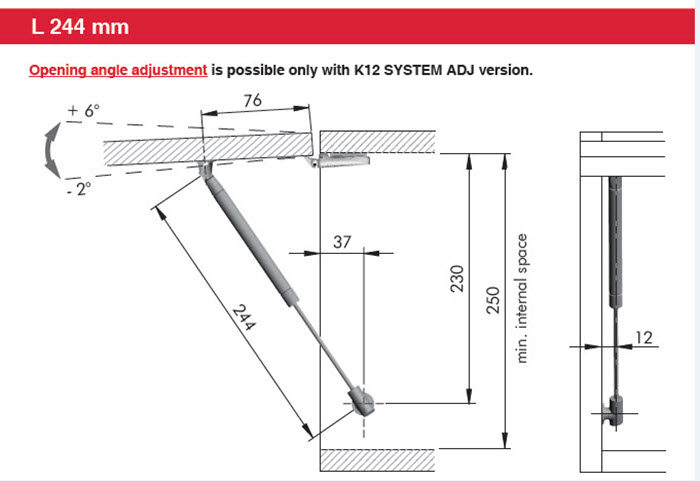

• Drilling Template with Standard Hinges - Handle Opening

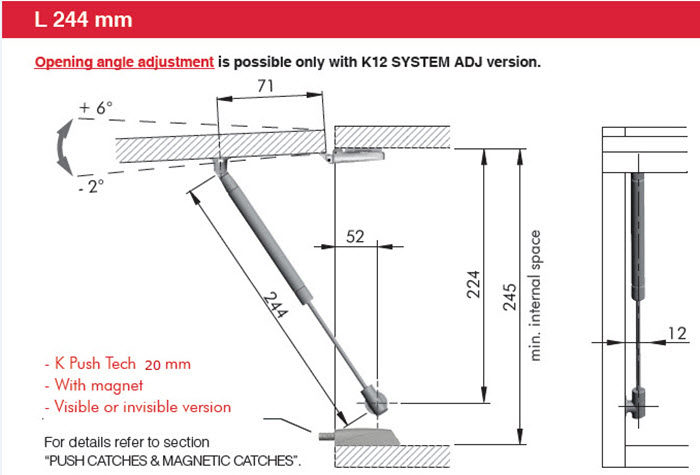

• Drilling Template with Standard Hinges - Push-to-Open
• Instructions
