Richelieu 244120185 K12 Arms for Upward Opening

0 Review(s) Write a Review
Your Price: $49.28
Retail Price:$56.64
You Save:$7.36(13%)

Richelieu 244120185 K12 Arms for Upward Opening

Richelieu K12 Arms for Upward Opening
Part Number: RIC_244120185
Availability: In Stock.
Richelieu 244120185 K12 Arms for Upward Opening

Automatic and adjustable opening The K12 pneumatic suspension arm is a completely new way to open flap doors. It is specially designed for standard automatic drilling processes. The arm can be installed directly on solid doors or wider aluminum door frames.

Advantages and benefits

- Available in three lengths: 164 mm (6-7/16"), 244 mm (9-5/8") and 355 mm (14"), adapted for small, medium and large doors.
- For doors with an aluminum frame, a special adapter (#100013180) is sold separately.
- Enables a smooth and continuous movement of the door until it is fully opened.

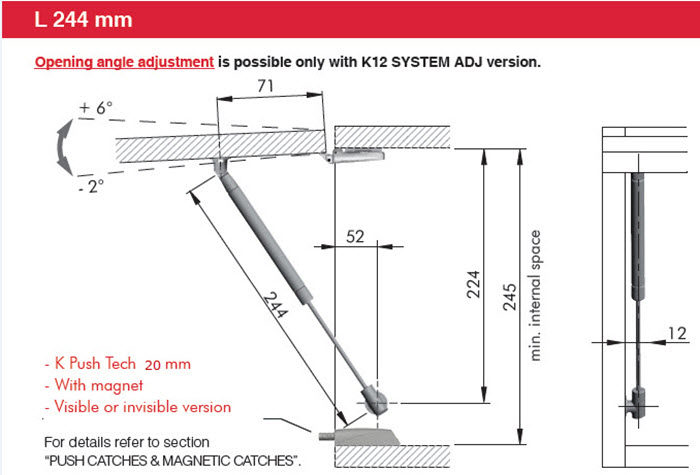

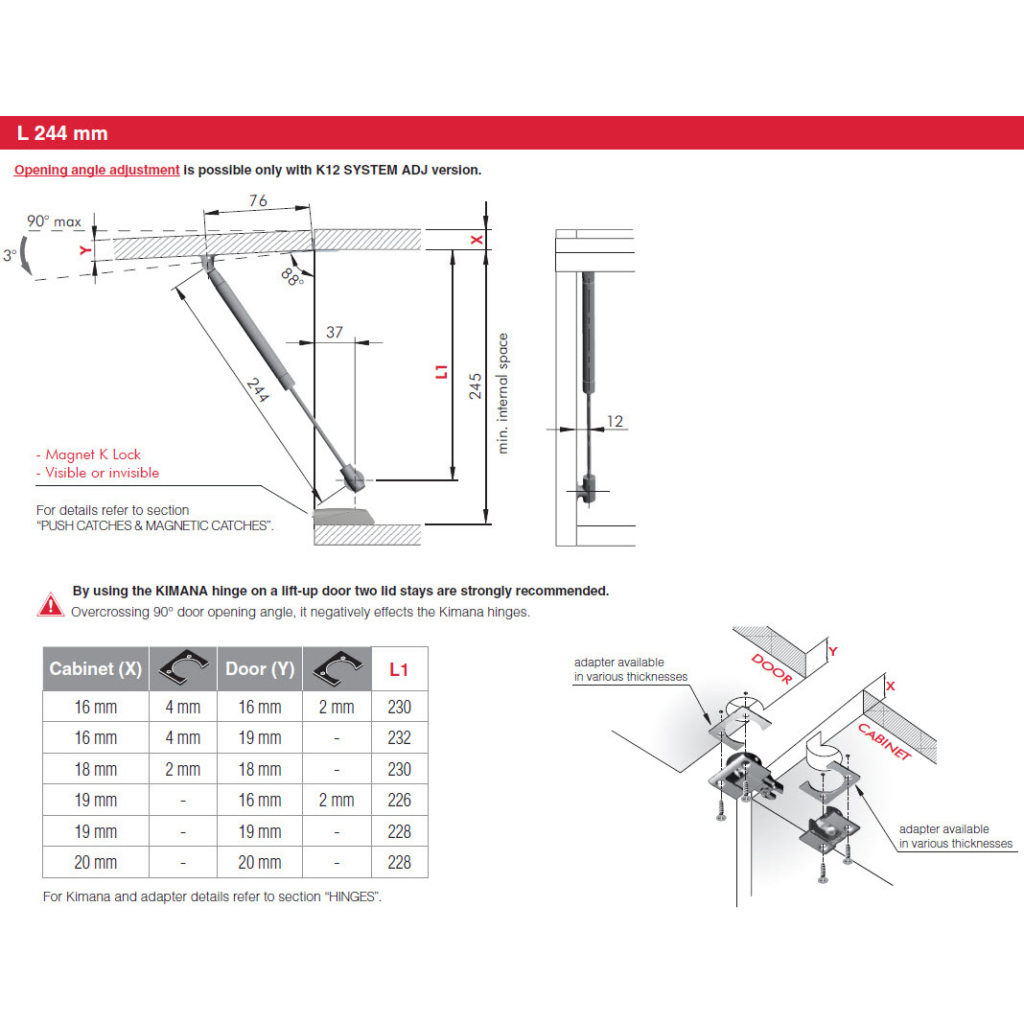

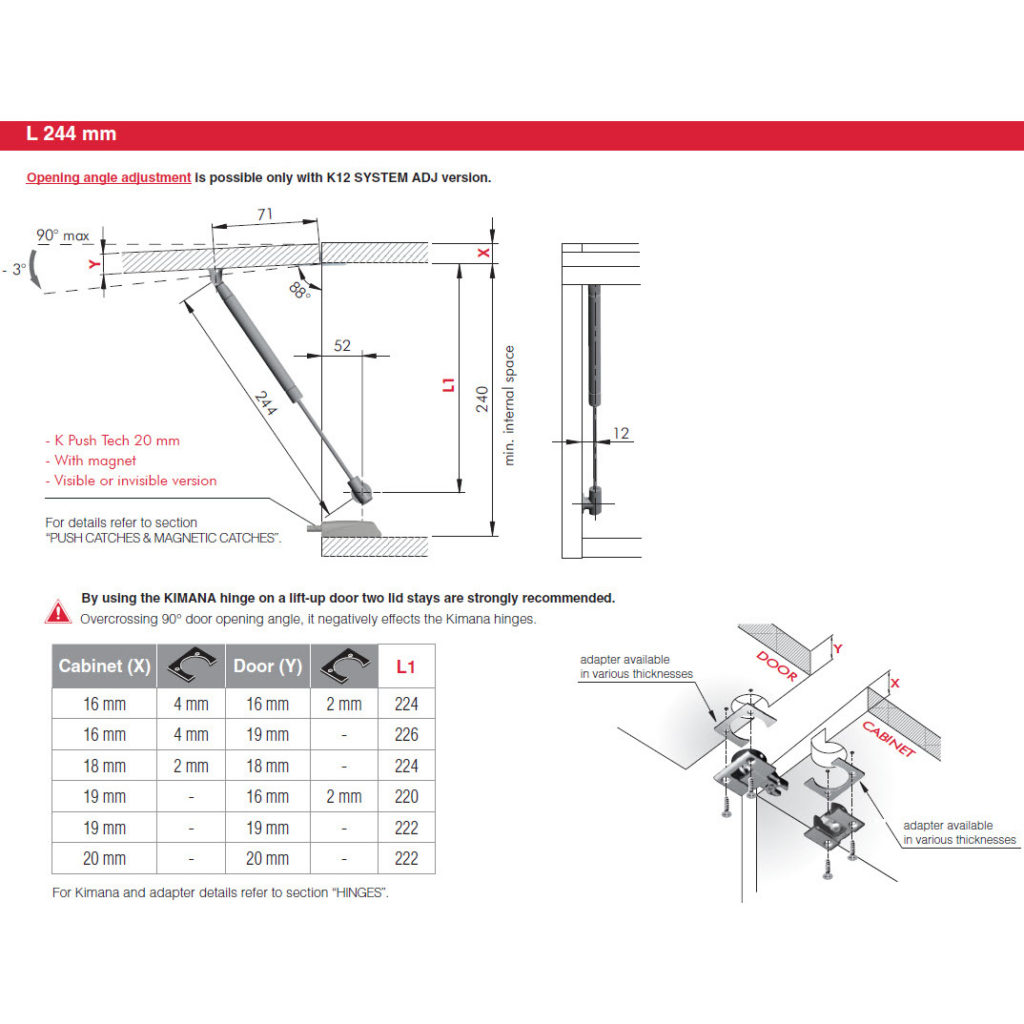

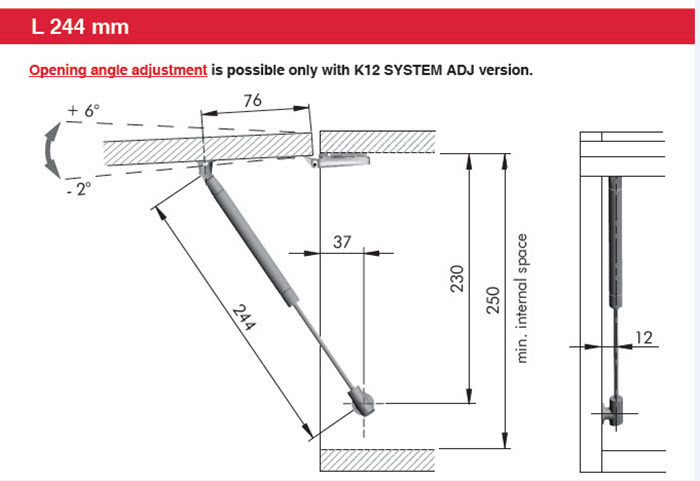

- A rotating ring is integrated in the arm to allow an adjustment of the opening angle. Ideal for when several doors are aligned.
- The installation does not require additional screws, saving time and producing a more aesthetically pleasing look.
- All parts are made of a nickel-zinc alloy, steel and plastic.
- Minimalist design: 13 mm (33/64") diameter cylinder.
- Exclusive to Richelieu.

Important information

Please refer to the technical documents for additional information.

** Recommended drilling diameter for side panel: 9/16 in (15 mm) **


For upward- or downward-opening doors

Included products

Two mounting options:
- Screw-on
- With dowel


Ship via: Can Ship UPS

Brand: Italiana Ferramenta

Force: 12.23 kg

Force ( N): 120 Newton

Length: 244 mm

Opening Style: Upward opening

Opening Type: Lift-up Door

Opening Types NEW: Lift-Up Opening

Product number: 244120185

Product №: 244120185

Type of Opening: Lift-Up Opening

Unit: Bag

Unit 1: case - 25

Unit 2: case - 25
