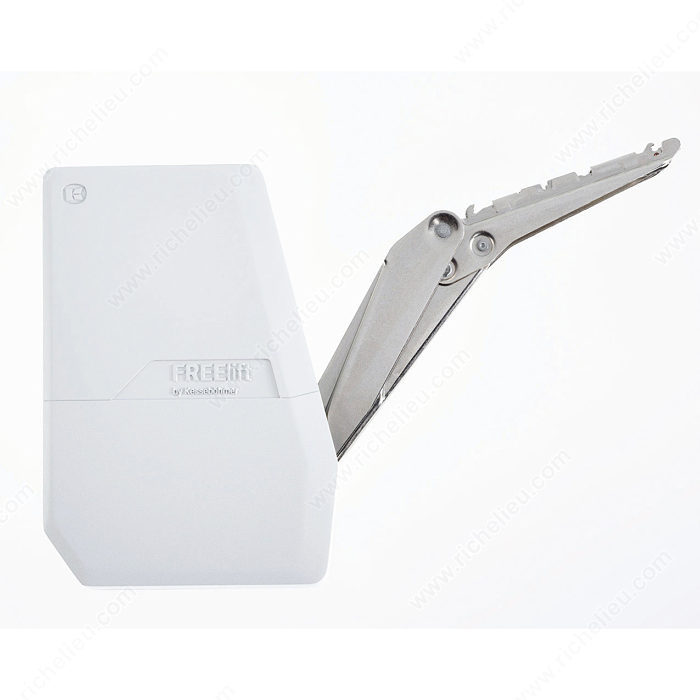

Richelieu 271665930 FREEflap Forte Opening SystemPractical, balanced and compact, FREEflap is the "little toughie" in the lifter family. The integrated multi-position-stop guarantees that the front will stop securely in any position.
Advantages and benefits
- Minimum installation depth (118 mm)
- Generates 27 kg lift force
- 90º & 107º opening angles
- Soft and fluid movement
- Multi-position stop
- German Design Award Special Mention 2015
- Compact design, easy assembly
Important information
- Total opening angle: 107º
- 90º opening angle limiter integrated into the fitting
* Support for aluminum frame sold separately.
Included products
- 2 Freeflap forte fittings (right and left)
- 2 Dress caps for fittings (right and left)
- 2 Door connector plates
- Drilling template
Attributes
Ship via: Can Ship UPS
Brand: Richelieu
Door Height: 400 to 600 mm
Finish: White
Max weight for door height <= to 350 mm: 6.7 to 14.3 kg
Max weight for door height <= to 375 mm: 6.3 to 13.1 kg
Max weight for door height <= to 400 mm: 5.9 to 12.4 kg
Max weight for door height <= to 425 mm: 5.6 to 11.6 kg
Max weight for door height <= to 450 mm: 5.2 to 10.9 kg
Max weight for door height <= to 475 mm: 4.9 to 10.3 kg
Max weight for door height <= to 500 mm: 4.7 to 9.7 kg
Max weight for door height <= to 525 mm: 4.4 to 9.2 kg
Max weight for door height <= to 550 mm: 4.2 to 8.8 kg
Max weight for door height <= to 575 mm: 4 to 8.4 kg
Max weight for door height <= to 600 mm: 3.8 to 8 kg
Max weight for door height <= to 625 mm: 3.6 to 7.6 kg
Max weight for door height <= to 650 mm: 3.4 to 7.3 kg
Opening Angle: 107°
Opening Types NEW: Lift-Up Opening
Power Factor: 3 041 to 4 180
Product number: 271665930
Product №: 271665930
System Name: E
System Type: Soft-Close
Unit: Box
Unit 1: skid - 152
Unit 2: skid - 152
