Richelieu 272034100 FREElight Opening System

Richelieu 272034100 FREElight Opening System

The new FREElight model is a versatile lifter that can be used together with widely available flaps or door hinges. The FREElight is capable of lifting and lowering front panels on wall units and other high units weighing up to 10.5 kg and measuring up to 600 mm in height. The FREElight has a wide range of applications, from kitchens to living rooms.

- Offers a soft-close opening and closing system.

Advantages and benefits

- Simple, tried, and tested technology
- High-quality appearance
- Simple assembly
- Flexible opportunities for use
- Can be installed on right or left

Important information

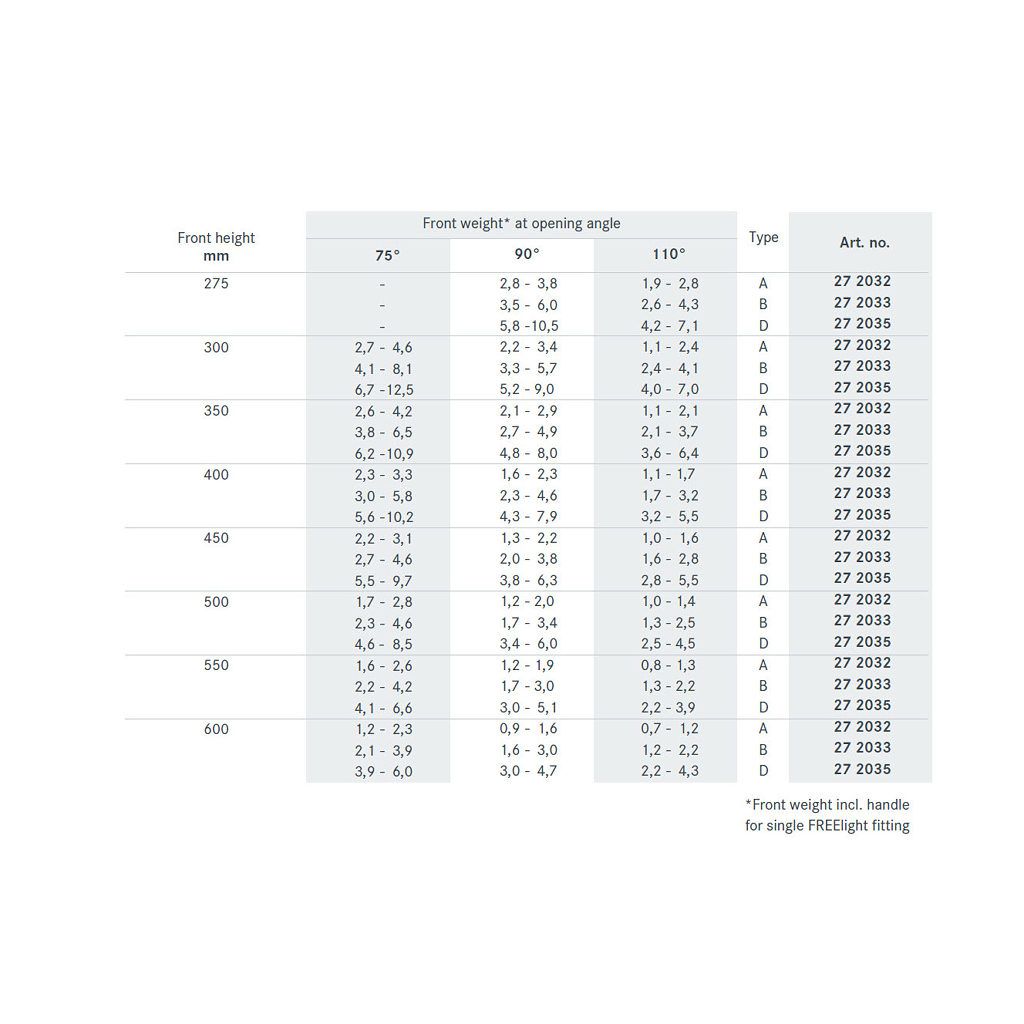

SEE WEIGHT CHART TO CHOOSE THE RIGHT LIFTER.
Possible opening of 90° or 110°.

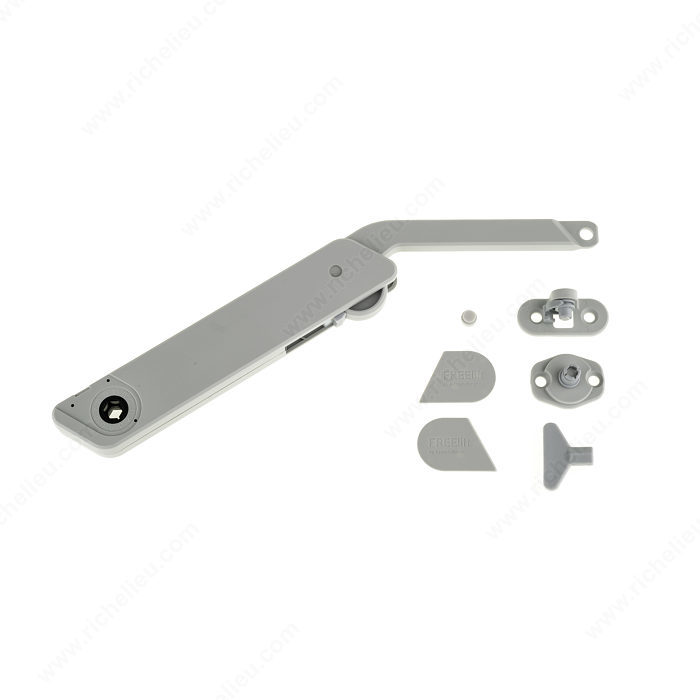

Included products

- One FREElight fitting
- One dress cap, right
- One dress cap, left
- One front connector (for wood or euro screws)
- One carcase connector (for wood or euro screws)
- One adjustment key

Resources

• Instructions
• Weight table
• Instructions
