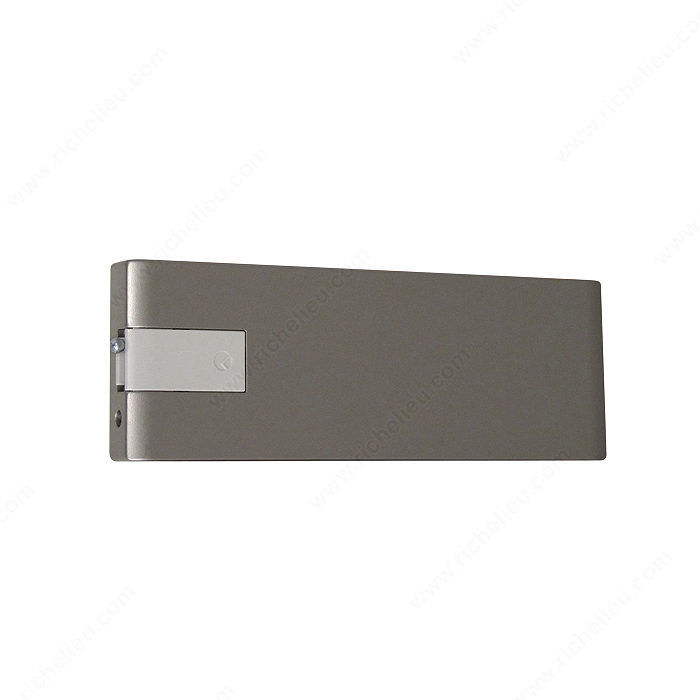

Richelieu 47030020184 LINK Drop-Down Door

Richelieu 47030020184 LINK Drop-Down Door

Opening mechanism for folding door. The only product on the market that guarantees both soft door-opening and a smooth door-closing.

Advantages and benefits

- Simple installation
- Smooth closing and soft opening
- Minimum cabinet depth: 200 mm
- Doesn't require milling or grooves
- Vertical adjustment up to 2 degrees
- Can be installed on either left or right-side panel

Important information

To identify the appropriated mechanism «Link» it is necesary for us to gather the following informations:

- Door dimensions
- Door weight with handle (*)
- Type of hinges

(*) If you don't have the actual weight of the door, it is possible to estimate the weight by considering the density of the material.

Common materials:
- Chipboard door 650 Kg/m3 (average value)
- MDF door 780 Kg/m3 (average value)

Application

As well as providing smooth operation, this new-generation drop-down system suits all door weights and dimensions and will add style to your cabinetry.

Included products

LINK is supplied in a cardboard box and includes 1 mechanism, 1 door bracket, Ø 4 x 18 mm countersunk screws, a cover cap and fitting guide.
