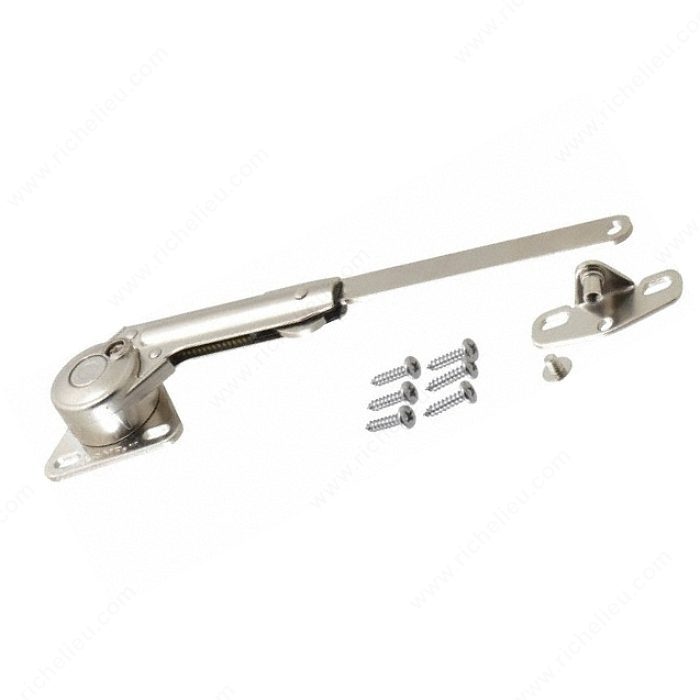

Richelieu 493503180 Adjustable Soft-Down Stay (upward opening)

Richelieu 493503180 Adjustable Soft-Down Stay (upward opening)

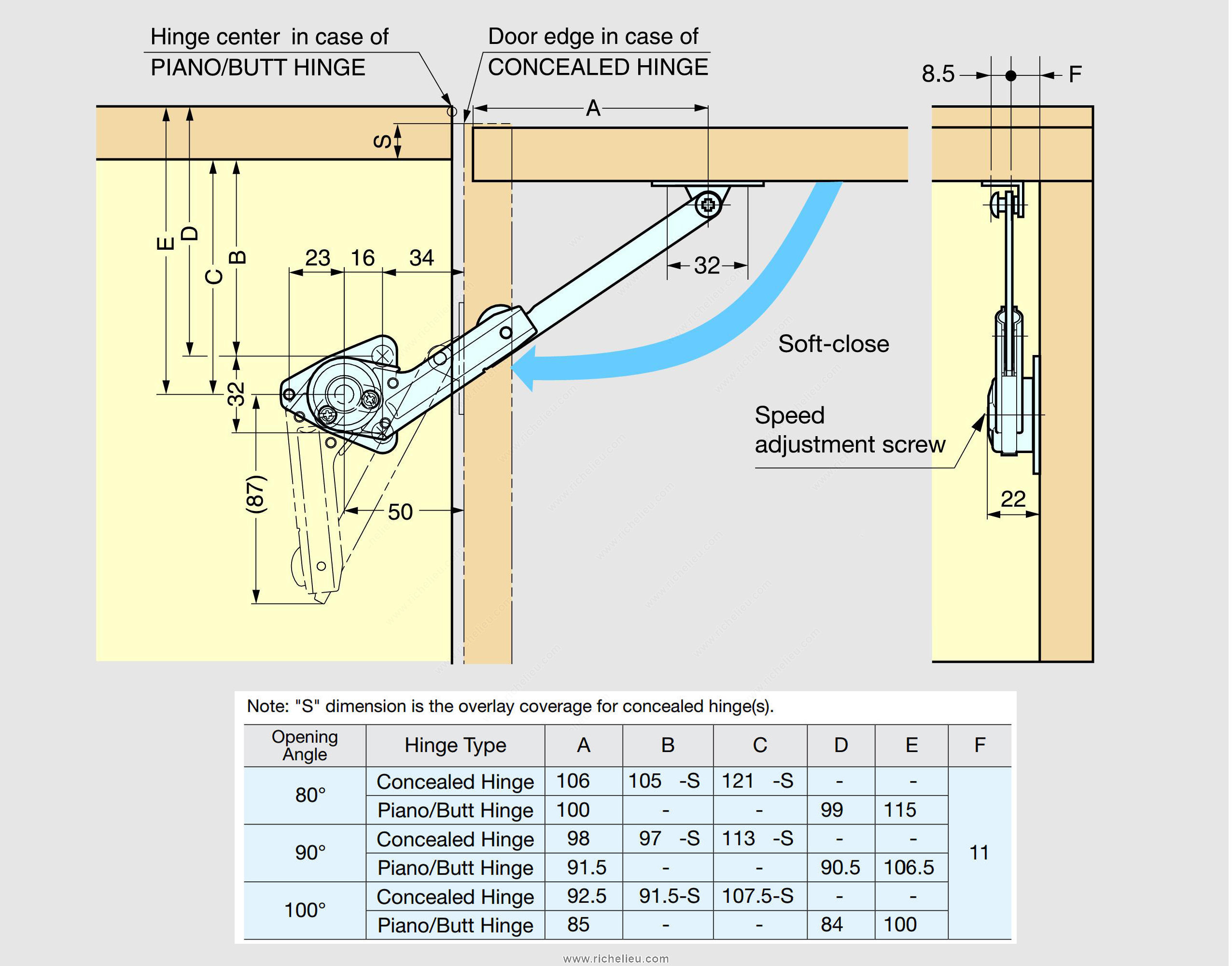

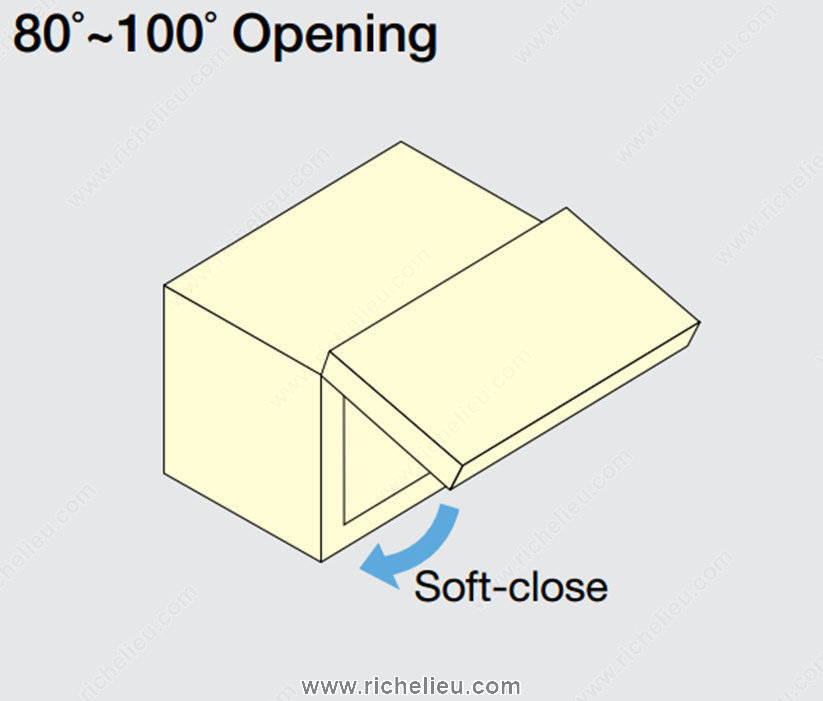

Opening angle 80°, 90° or 100° For upward-opening flap door with piano, butt or concealed hinges
Designed to hold door in fully opened position.
Speed adjustment screw located on front for easy adjustment.

Advantages and benefits

Opening angle 80°, 90° or 100°. Speed adjustment screw located on front for easy adjustment.

Important information

Hinge not included.
Torque Calculation:
Torque = Door Height × 1/2 × Door Weight
Per Piece: 20~70 kg·cm (19~60 lb·inch)
Per Pair: 40~140 kg·cm (38~120 lb·inch)

Application

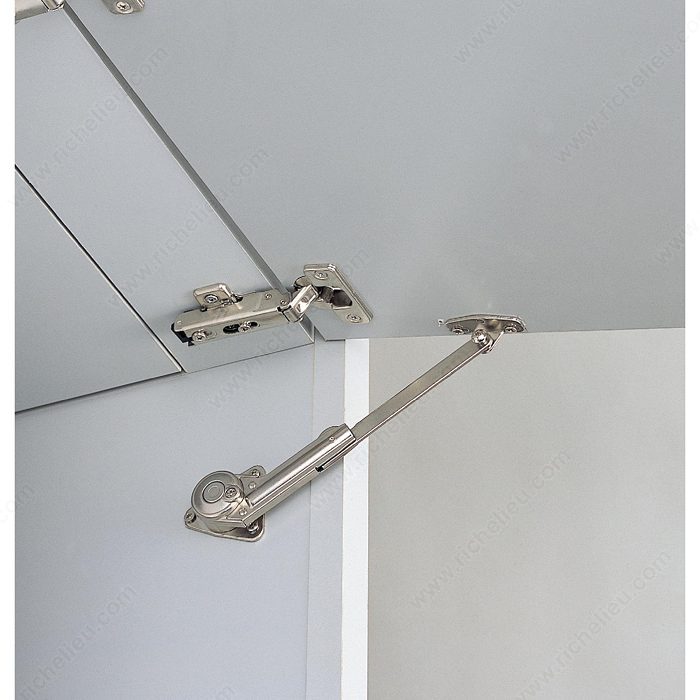

For upward-opening flap door with piano, butt, or concealed hinges.

Resources

• Line art
• Line art
• Line art
