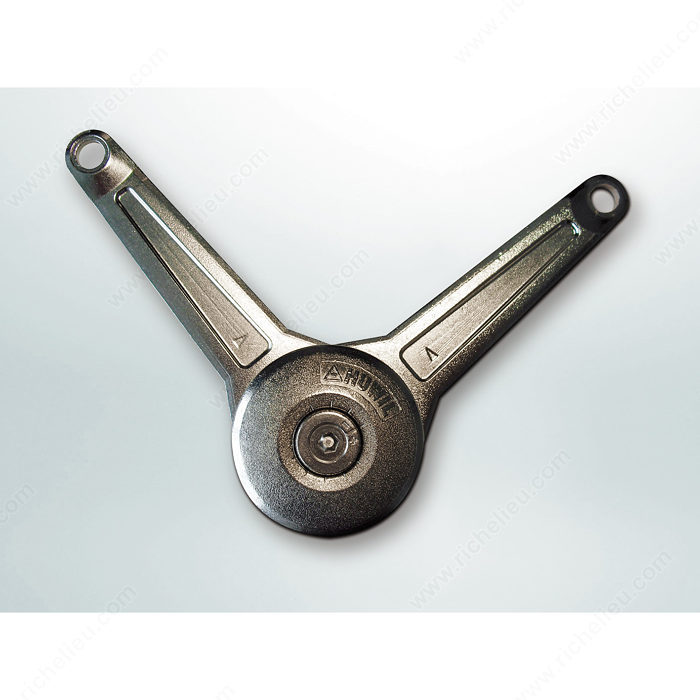

Richelieu 5010532G Duo Flap Stay

Richelieu 5010532G Duo Flap Stay

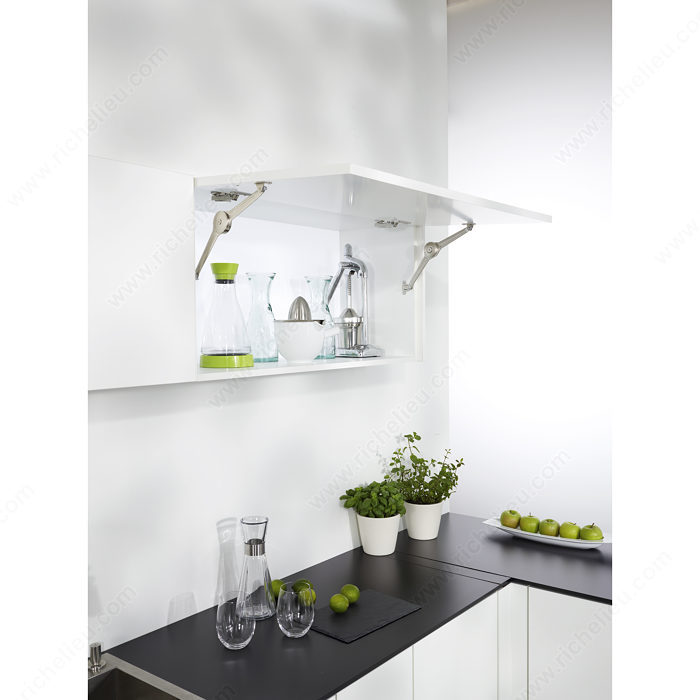

Push hinge for Touch Latch style use Duo horizontal opening system. Hold-open or soft-close. Simple adjustment, 75° to 110° opening.

Advantages and benefits

- Mount for either flap support or bar counter function.
- Holding force can be set steplessly.
- Use right or left; simplifies logistics and assembly.

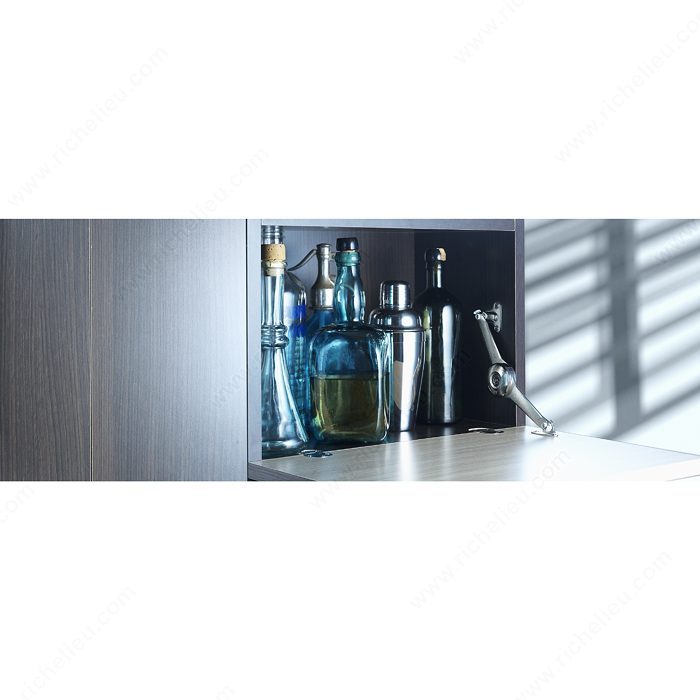

- If the front panel and the fitting are mounted to open downwards, the front can also function as a temporary work surface or bar counter.

Important information

For doors wider than 600 mm, regardless of weight, two flap stays are required.

Application

Door brackets and cabinet brackets are also available separately (see suggested products).

Included products

- Door bracket.
- Cabinet bracket.

Resources

• Line art

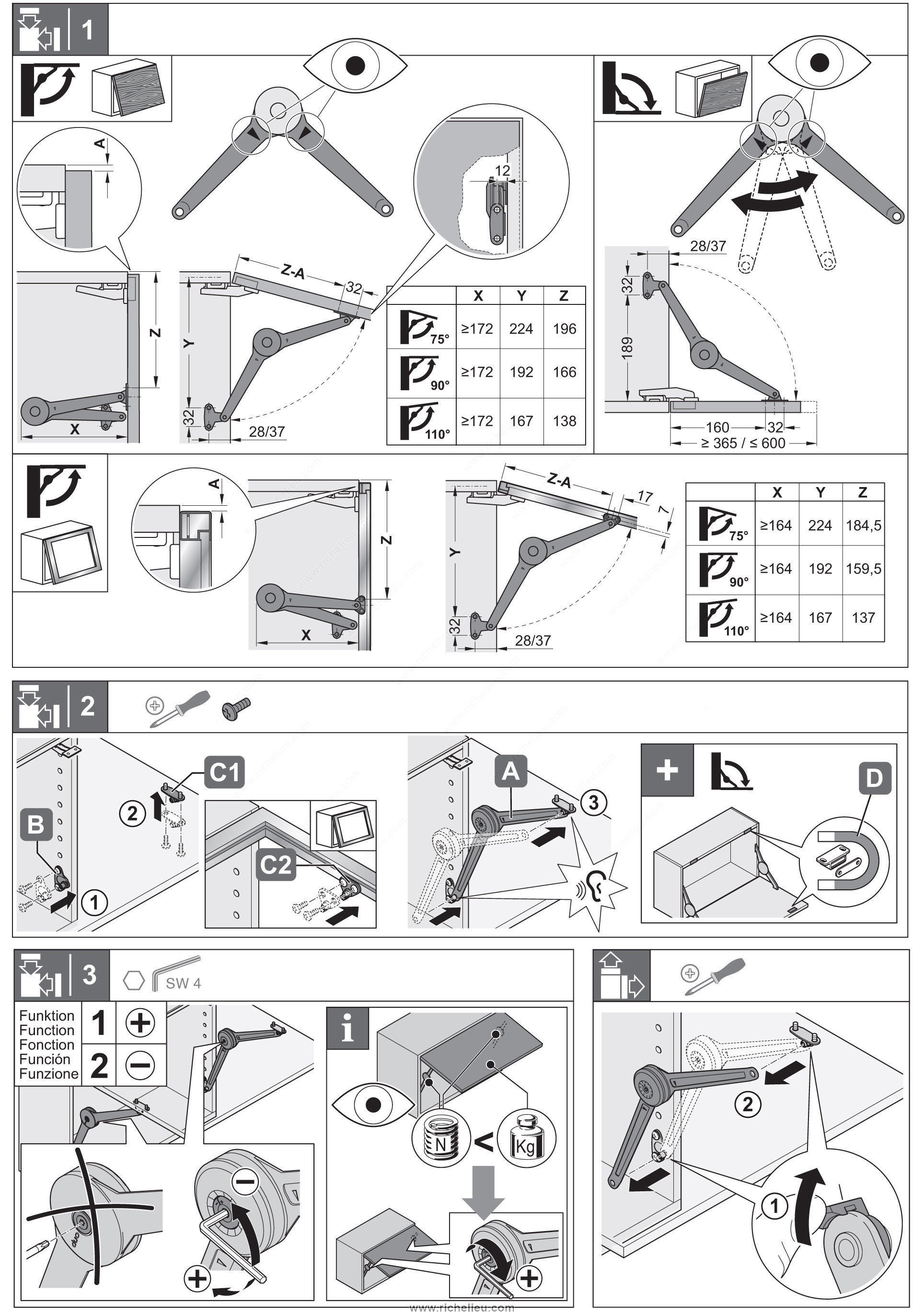

• Mounting instructions, page 2
• Instructions
• Mounting and Adjustment

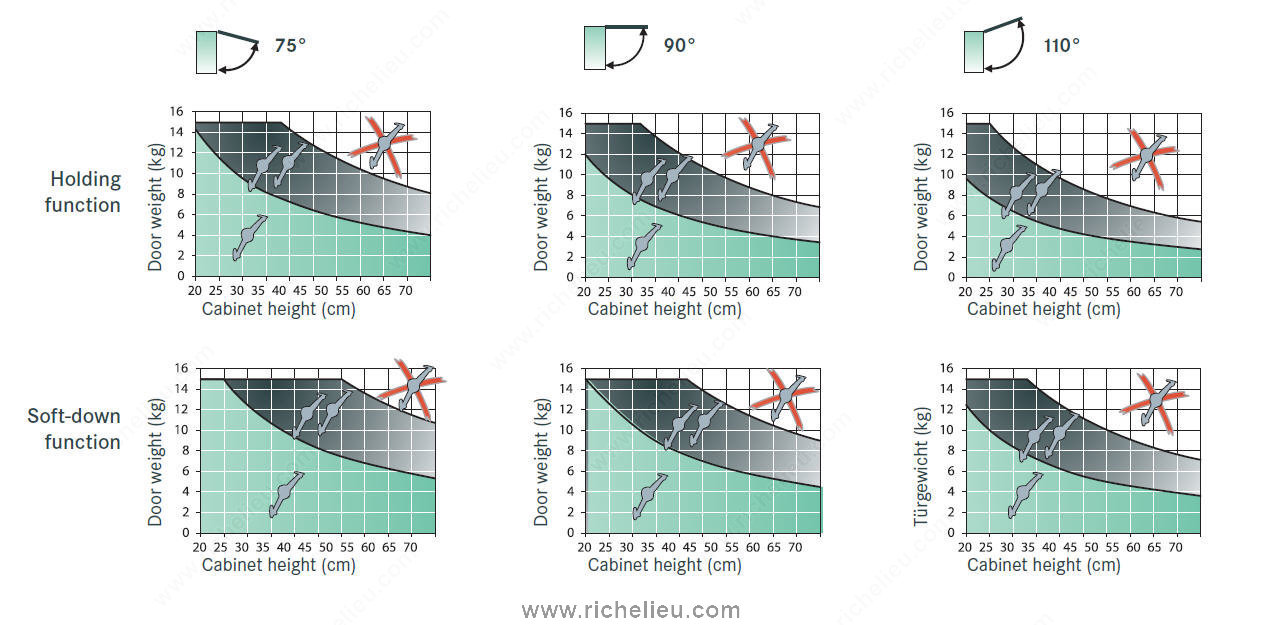

• Technical Information

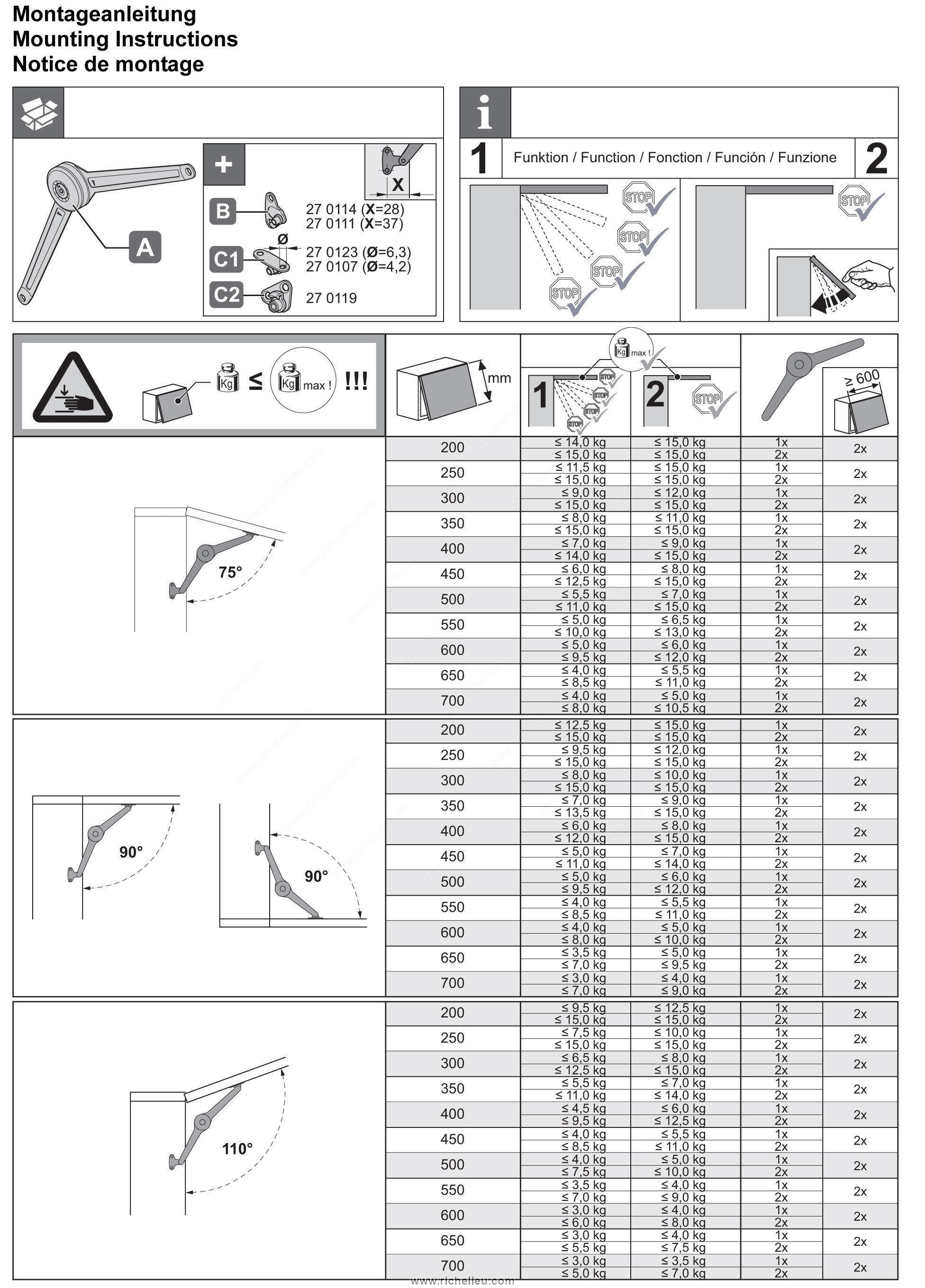

• Mounting instructions, page 1
