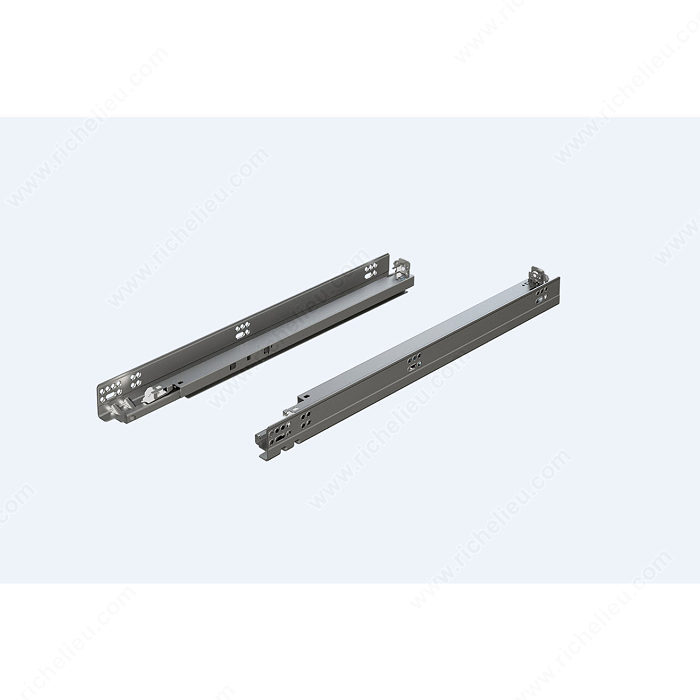

Richelieu 563H2290B TANDEM plus 563H Full Extension Concealed Undermount Slide with Blumotion for Face Frame Cabinet

Richelieu 563H2290B TANDEM plus 563H Full Extension Concealed Undermount Slide with Blumotion for Face Frame Cabinet

New four-dimensional adjustment
- Side-to-side, 1.5 mm (front and rear)
- Height, 3 mm
- Tilt, 5 mm
- Depth, with optional locking device, 2.5 mm
- Depth, with elongated holes, plus or minus 4.5 mm

Advantages and benefits

- Integrated BLUMOTION soft-close.
- Wide range of drawer lengths from 9" to 30", in 3" increments.
- Runners for 1/2" to 5/8" drawer material thickness.
- Bottom mount holes for mounting to a fixed shelf or a flush bottom cabinet.
- Available for standard and heavy-duty applications.
- Excellent stability and less sag even when drawer is fully loaded.
- Bearing block for consistent reveal even in fully loaded drawer.

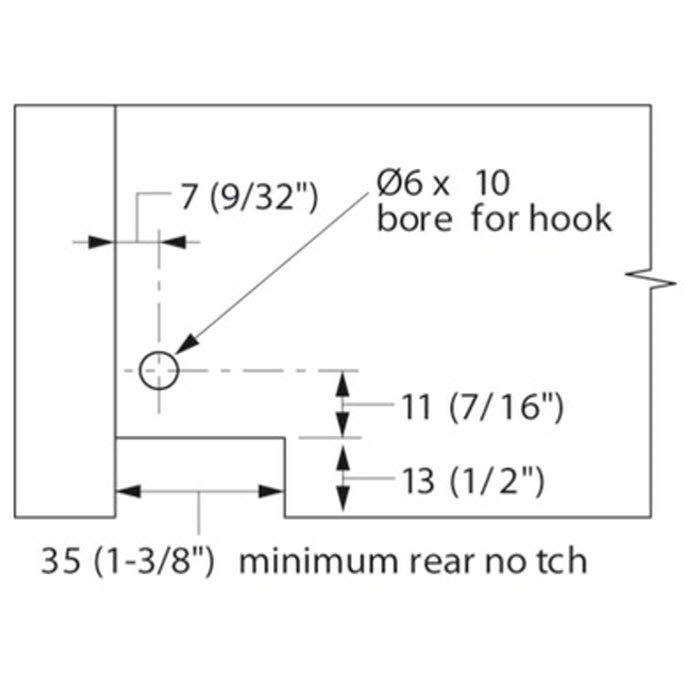

- Rear notch increases to 35 mm to accomodate new side-to-side adjustment.
- Same drawer box construction as the curent TANDEM runners.

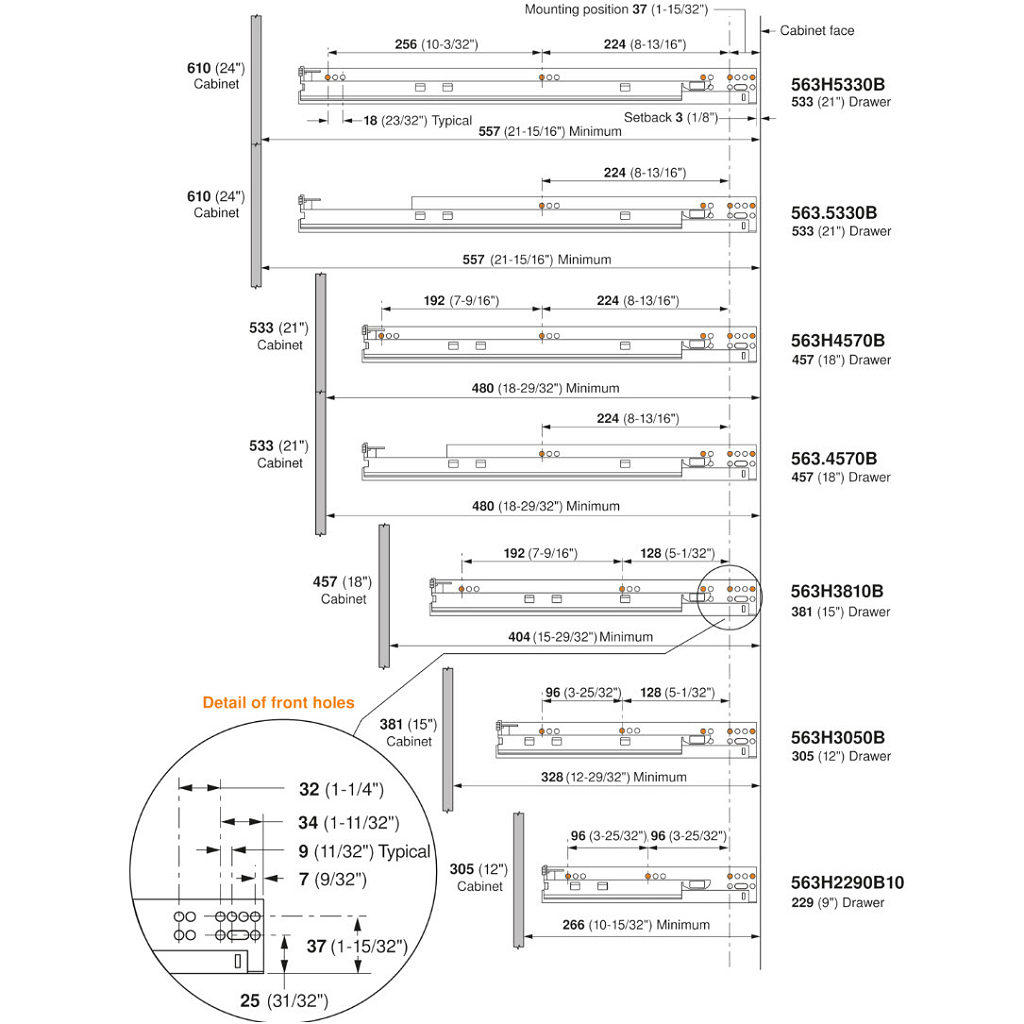

- Same drilling pattern as current 562/568 TANDEM plus BLUMOTION concealed runners.

Resources

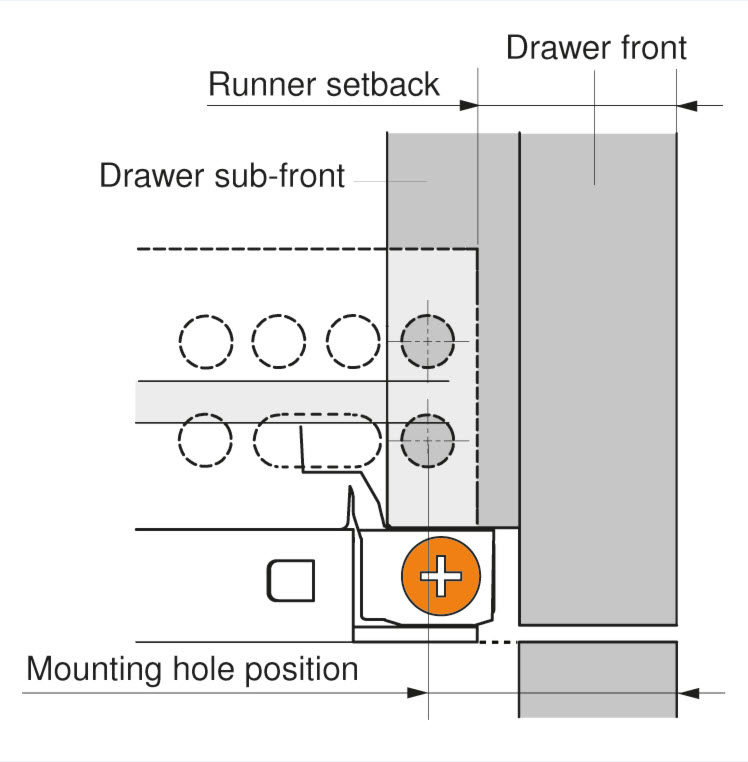

• Line art
