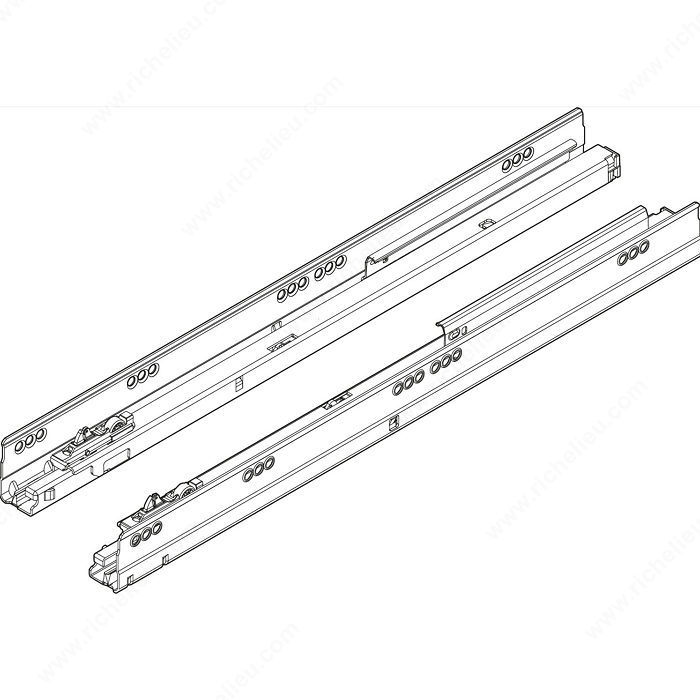

Richelieu 5785001M TANDEMBOX Concealed Undermount Slide with TIP-ON BLUMOTION

Richelieu 5785001M TANDEMBOX Concealed Undermount Slide with TIP-ON BLUMOTION

The focus of our product development: our furniture users' many different needs. The result: a solution that provides optimal support for motion - 100% mechanically assisted, TIP-ON BLUMOTION for TANDEMBOX combines the advantages of the TIP-ON mechanical opening support system with reliable BLUMOTION dampening for silent and effortless closing. Opens with just a light touch, has a smooth running action, and closes silently and effortlessly - experience completely harmonious and convenient motion with TIP-ON BLUMOTION technology for TANDEMBOX. And the best part is the motion is 100% mechanically assisted.

Advantages and benefits

- Small front gap: TIP-ON BLUMOTION can be adjusted to have a small front gap of 2.5 mm, making it ideal for kitchens.
- Four-dimensional adjustment: this adjustment ensures a precise gap layout. The integrated depth adjustment can be made tool-free using the adjustment wheel.
- Intelligent mechanics: TIP-ON BLUMOTION is more user-friendly and gives you the choice to pull or push to open.
- Easy opening: lower opening forces and an even smoother transition to the feather-light glide improve performance from the moment you open the pull-out.
- Quality to the touch: you can feel the increased stability provided by the combination of the optimized drawer side and new front fixing bracket.
- Optimized feather-light glide: components in the drawer side and cabinet profile have been further developed to optimize the feather-light glide of TANDEMBOX and the smooth running action.
- No additional cabinet and drawer assembly: TIP-ON BLUMOTION can be used with standard cabinets and fronts. There is no need for additional assembly (e.g., for recessed grips or handle strips).
- Easy assembly and adjustment: like most components, the TIP-ON BLUMOTION unit is assembled tool-free.
- Optional synchronization: from a cabinet width of 300 mm, the motion is improved through the use of optional synchronization. Assembly is done almost entirely tool-free.
- Precise front gap adjustment: the front gap can be conveniently adjusted to 2.5 mm using the gap checking/adjustment template, regardless of whether the front is already installed.

Application

- Kitchen
- Living room
- Bathroom

Resources

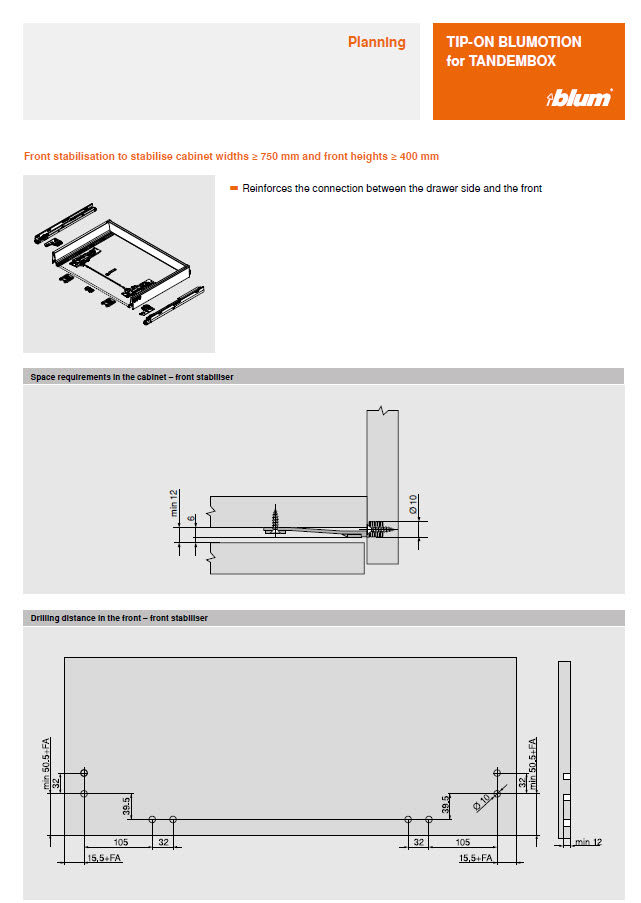

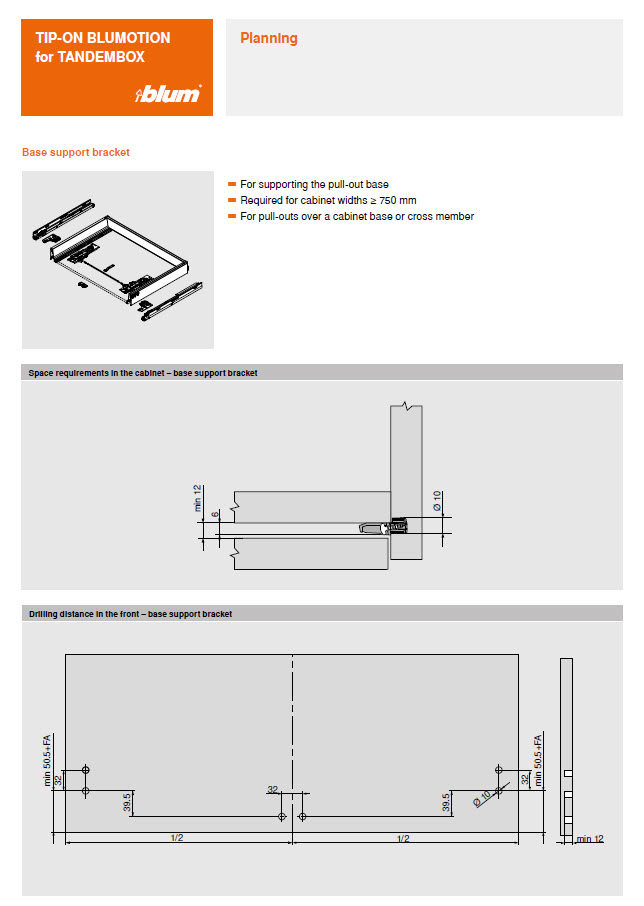

• Plan Page 5

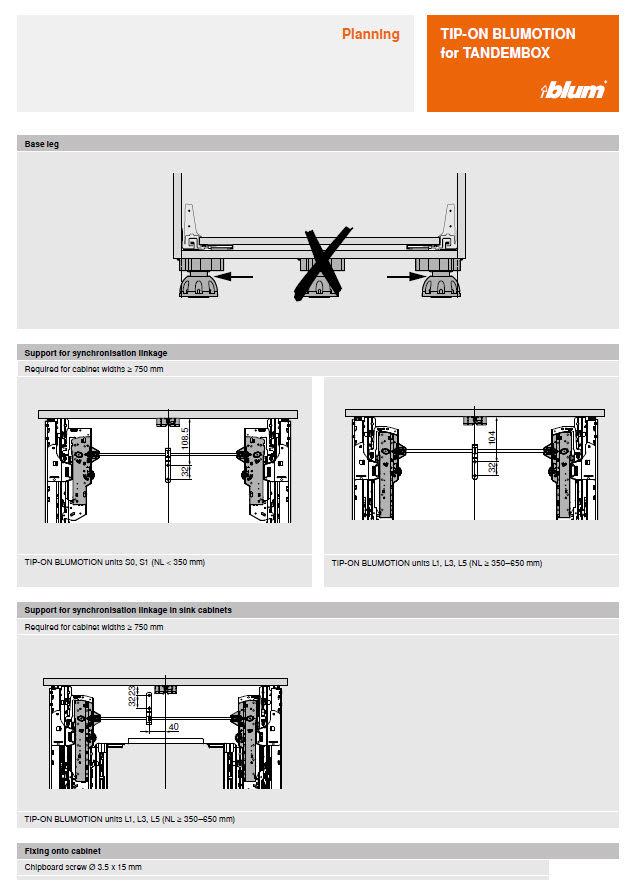

• Plan Page 2

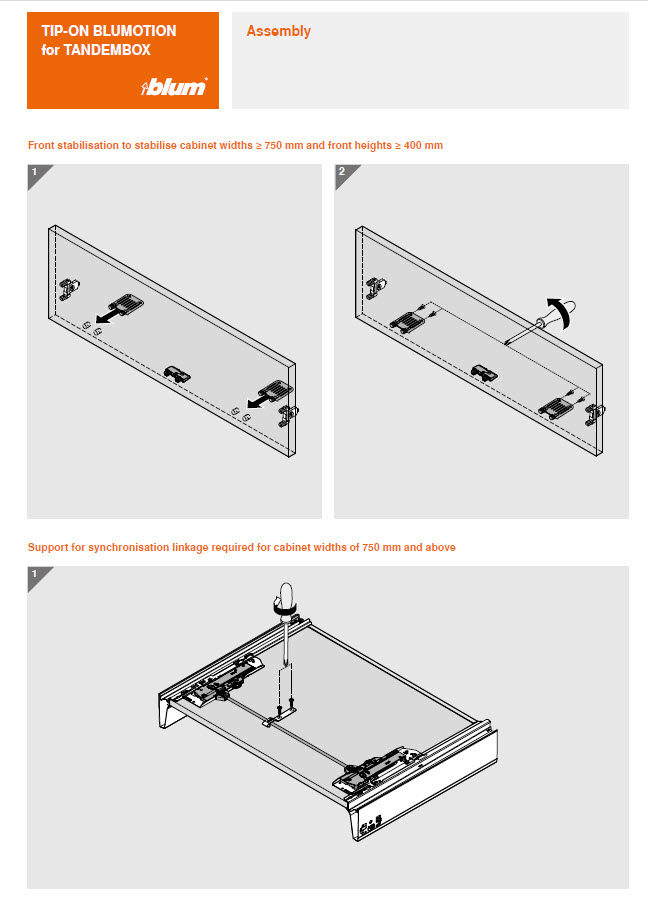

• Mounting of Stabilizer

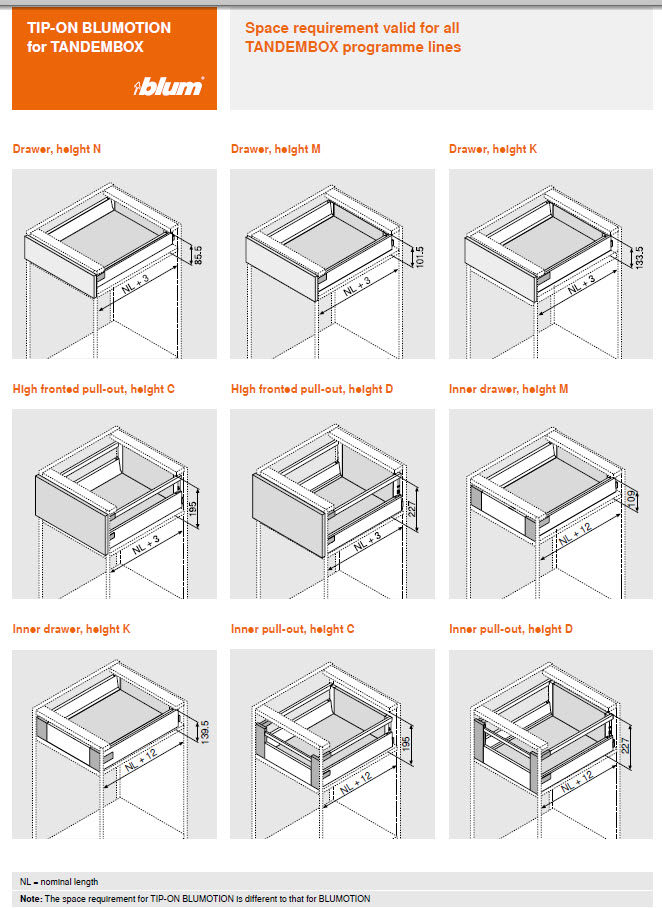

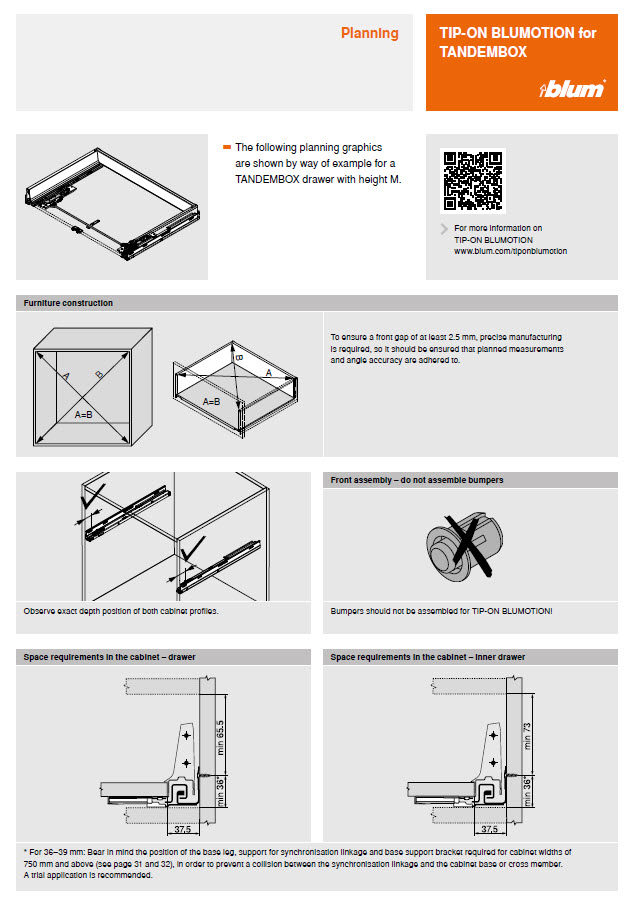

• Required Space

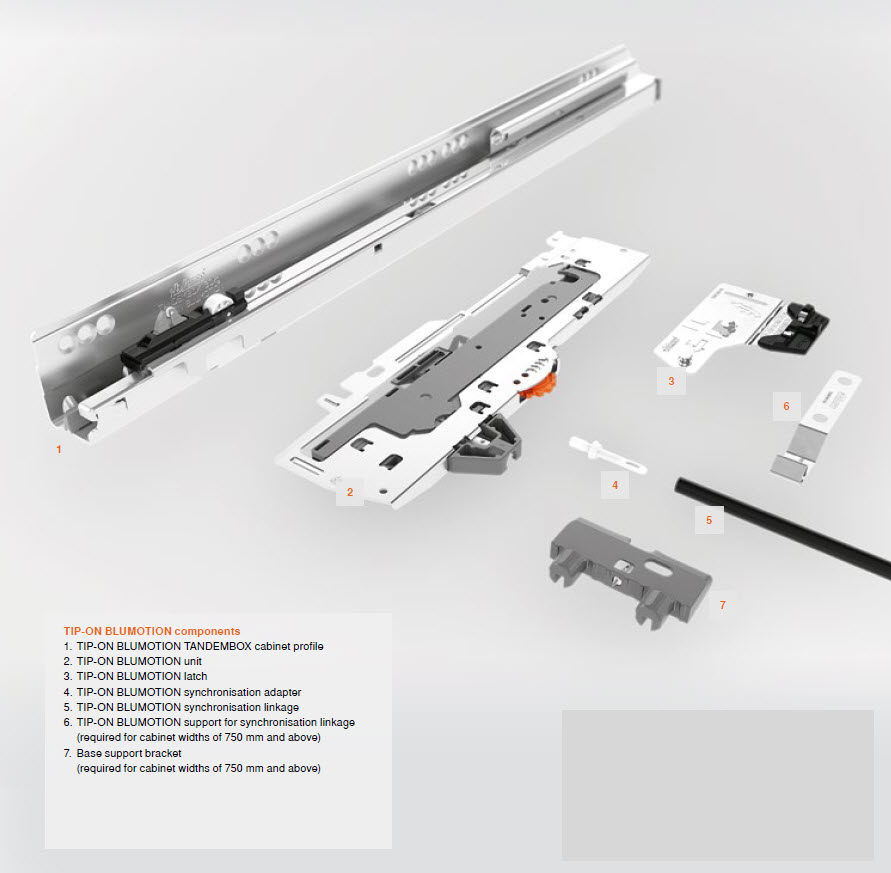

• Tip-On Blumotion Components

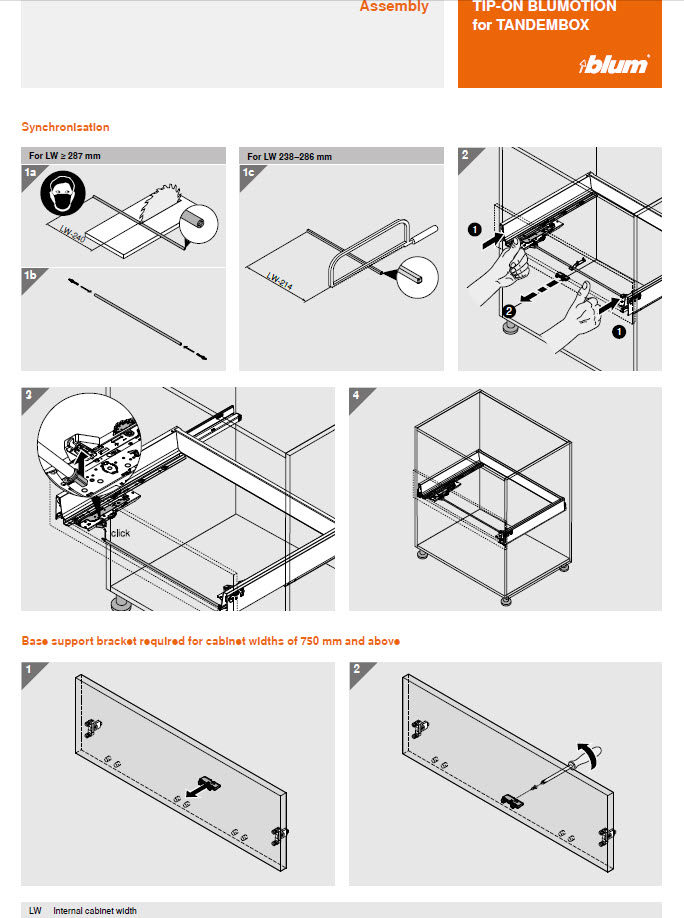

• Mounting of Synchronization Bar

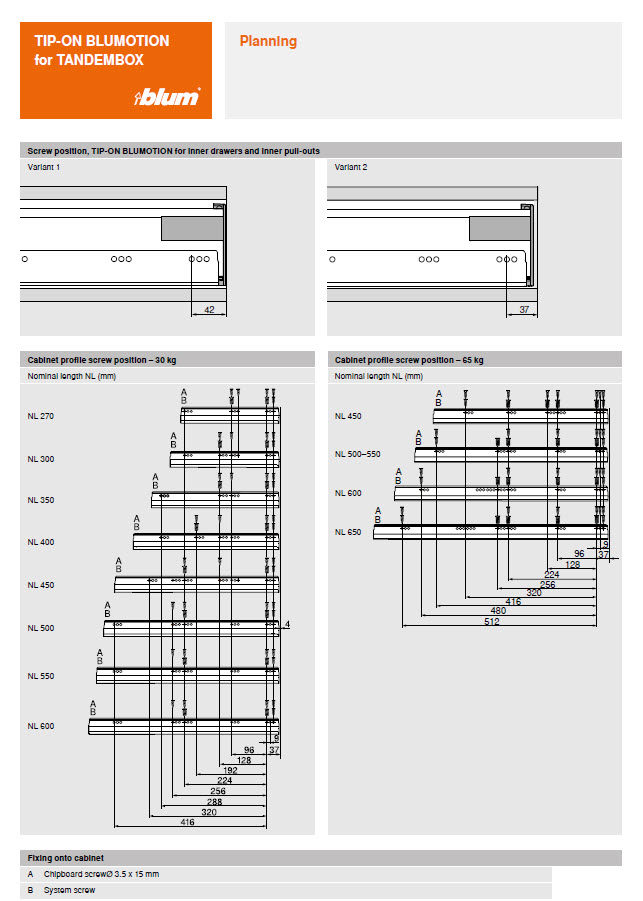

• Plan Page 3
• Plan Page 1

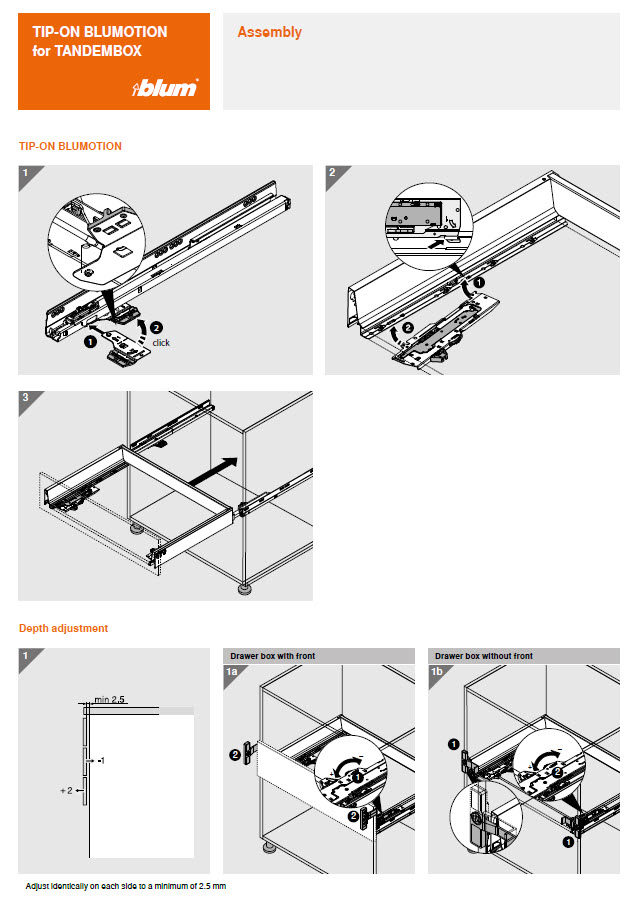

• Mounting of Tip-On Blumotion Unit
• Plan Page 4

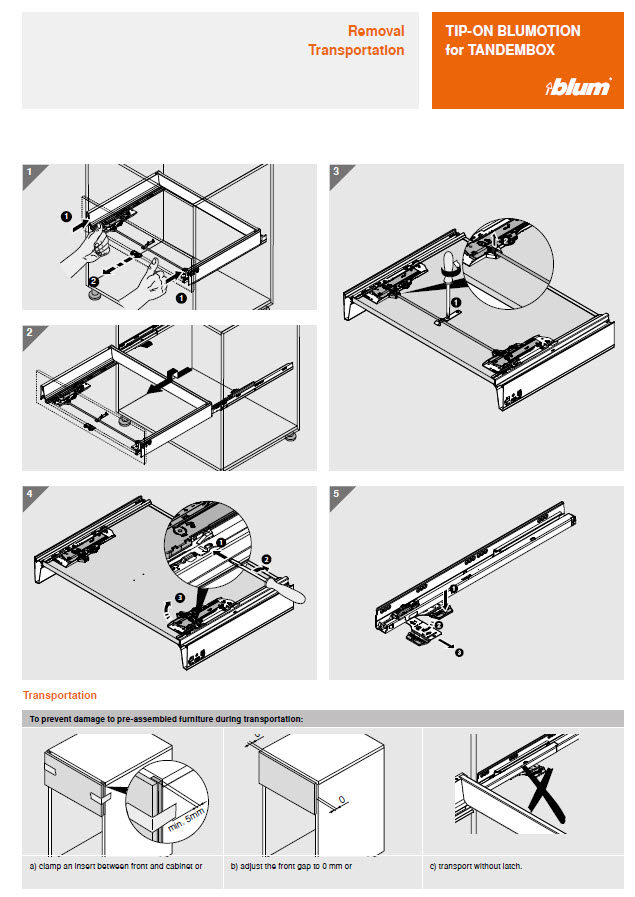

• Disassembly
