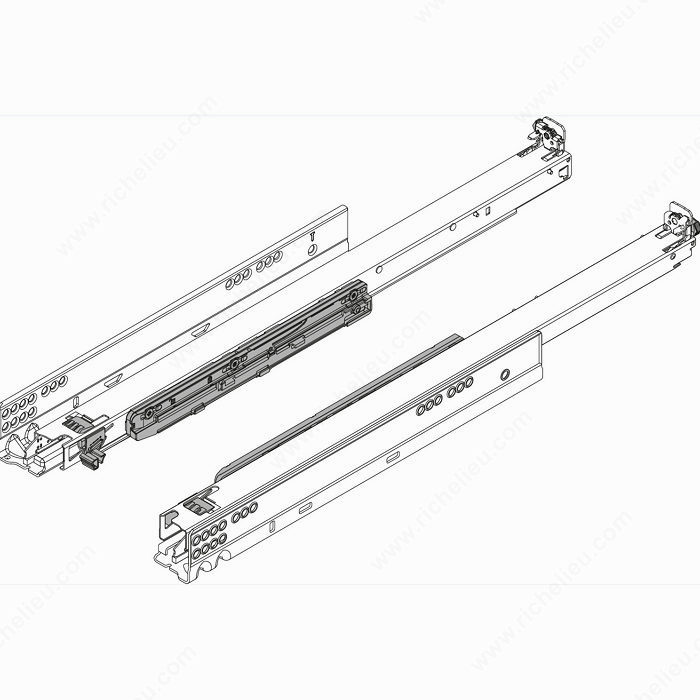

Richelieu 7634570M MOVENTO 763 Full Extension Concealed Undermount Slide - Heavy-Duty

Richelieu 7634570M MOVENTO 763 Full Extension Concealed Undermount Slide - Heavy-Duty

New and advanced full extension concealed runner system designed to be used with TIP-ON BLUMOTION touch-to-open system.
Synchronized MOVENTO smooth running action. BLUMOTION soft-closing.

Advantages and benefits

- Four-dimensional adjustment
- Elongated holes for depth adjustment
- Bottom mount holes
- 125 lb static load capacity
- Frameless or blocked-out face frame cabinets
- Blumotion soft-closing
- Movento smooth running action
- 16 (5/8") drawer thickness

Important information

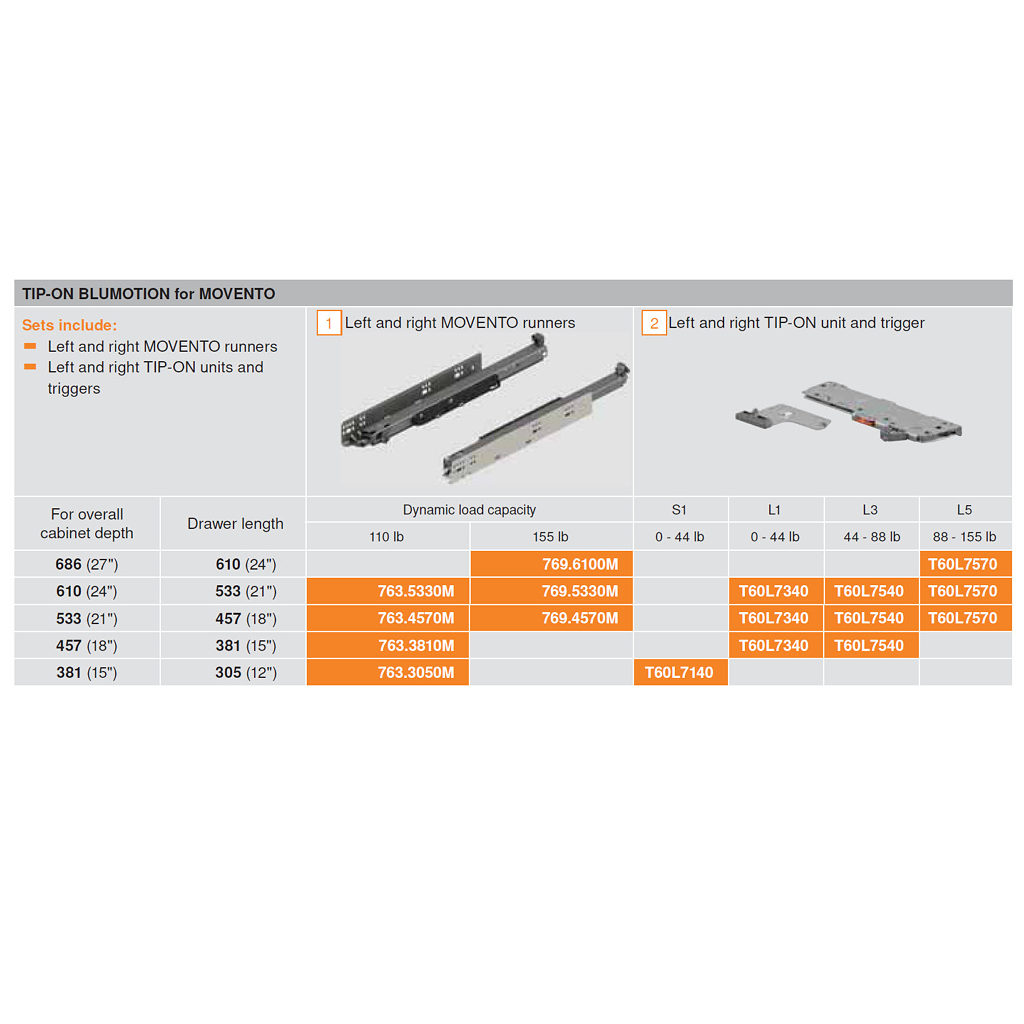

*** TO CHOOSE THE RIGHT TIP-ON BLUMOTION UNIT, SEE CHART FOR "TIP-ON BLUMOTION FOR MOVENTO" ***

Application

For frameless or blocked-out face frame cabinets.

Resources

• MOVENTO adjustments and removal
• TIP-ON BLUMOTION for MOVENTO - Manufacturer tips
• CHART for TIP-ON BLUMOTION for MOVENTO
• MOVENTO installation
• TIP-ON for MOVENTO - Drawer preparation and installation differences
