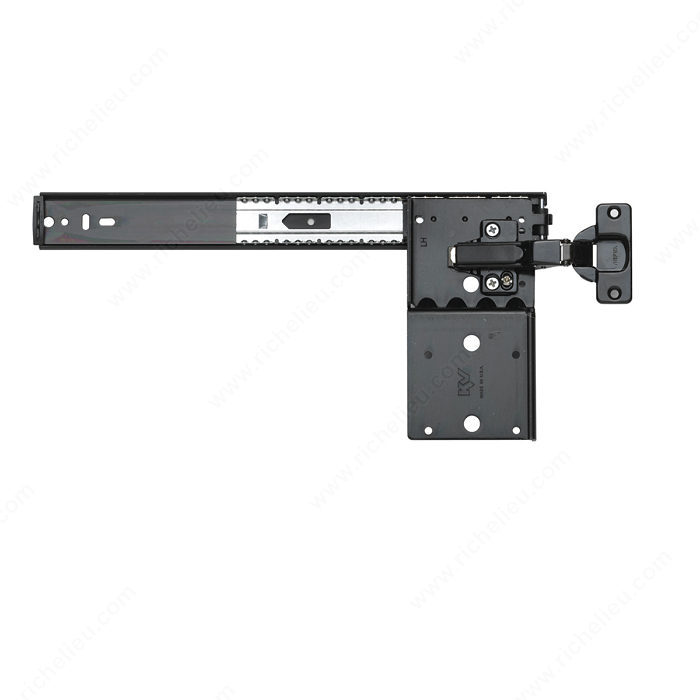

Richelieu 8070PEZEB24 8070/8071 Series Pocket Door Slide

Richelieu 8070PEZEB24 8070/8071 Series Pocket Door Slide

- Cabinet acts as installation template
- Cushioned stops and door hold-out
- Door hinge adjustable 3 ways
- Follower strip is attached to slide bracket

Important information

- One set per door required.
- Sold in pairs.
- 24" high x 48" wide maximum dimension for horizontal pivot
- 42" x 24" wide maximum dimension for vertical doors
- Maximum weight load is not to exceed 30 pounds

Application

Ideal for media and entertainment centers, these slides provide full access to the front of the unit in sliding-door cabinet applications.

Included products

- Screws included.

Resources

• Instructions
