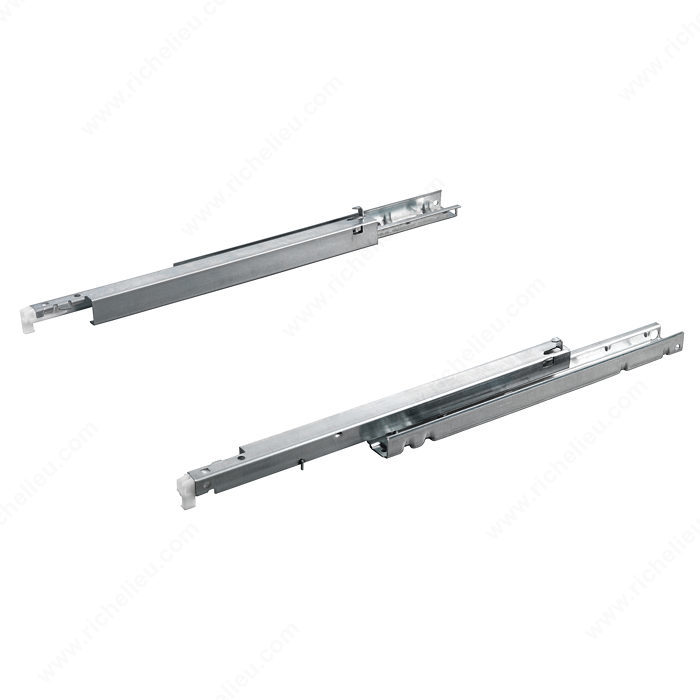

Richelieu A6555940 FUTURA Slide with Soft-Close for Sliding Shelf - Full Extension Concealed Undermount

Richelieu A6555940 FUTURA Slide with Soft-Close for Sliding Shelf - Full Extension Concealed Undermount

The Smove runner for sliding shelves with fixings on the bottom can be used in various contexts such as kitchens, shop display stands, living rooms and offices. This runner enables shelves to slide out for easy access.

Advantages and benefits

- Load capacity: 45 kg (100 lb) static / 34 kg (75 lb) dynamic
- Smove soft-close system
- Safety system that prevents shelves from tilting over
- Shelf height adjustment +2.5 mm with clip 10710
- Shelf height adjustment +2.5 mm, side adjustment ±1.5 mm, depth adjustment ±2 mm with clip 10750
- Finish: bright zinc-plated
- Length: from 350 to 600 mm

Resources

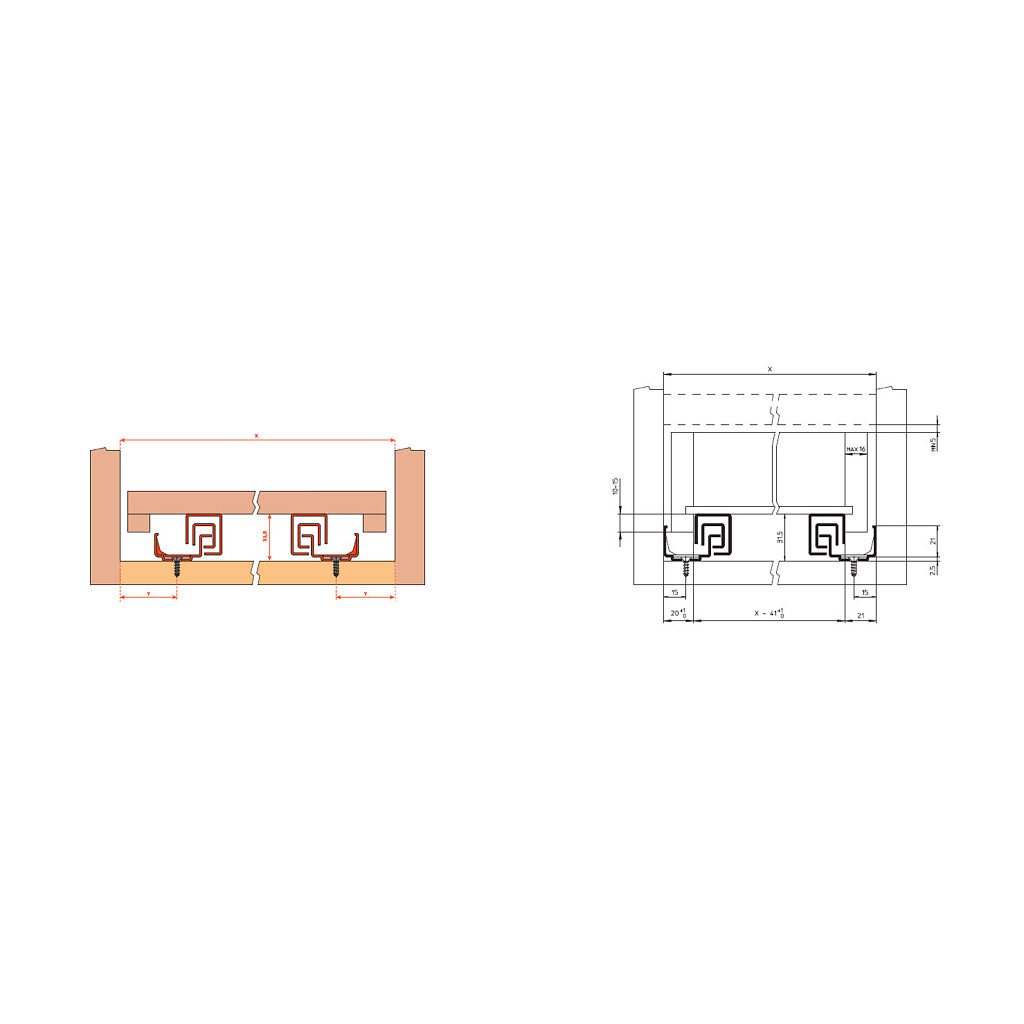

• Shelf overall dimensions

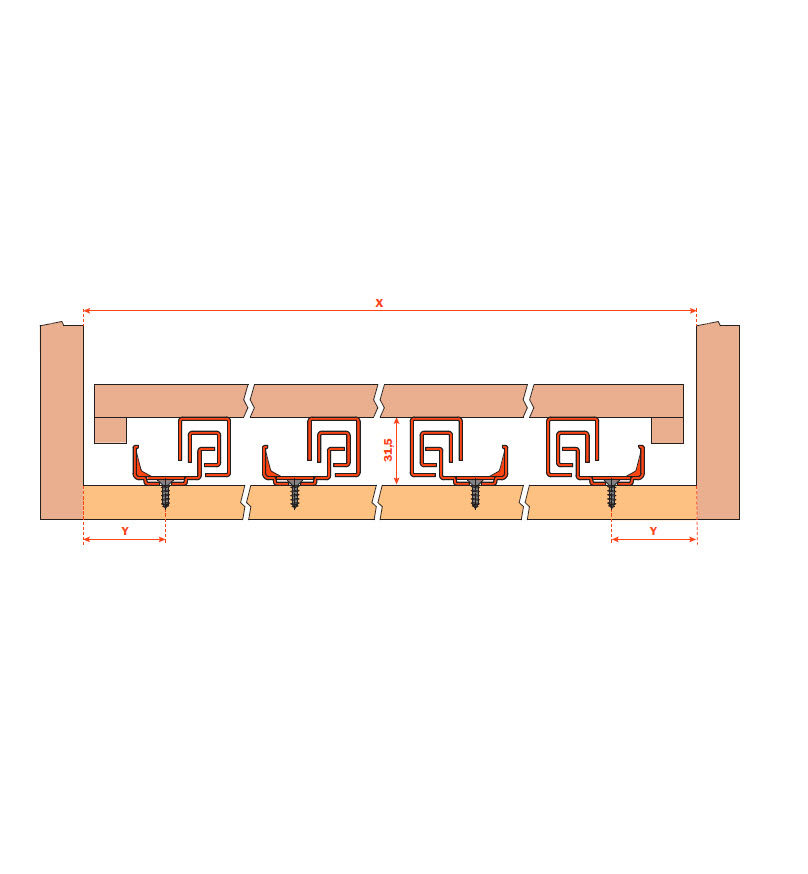

• Shelf overall dimensions - 4 guides

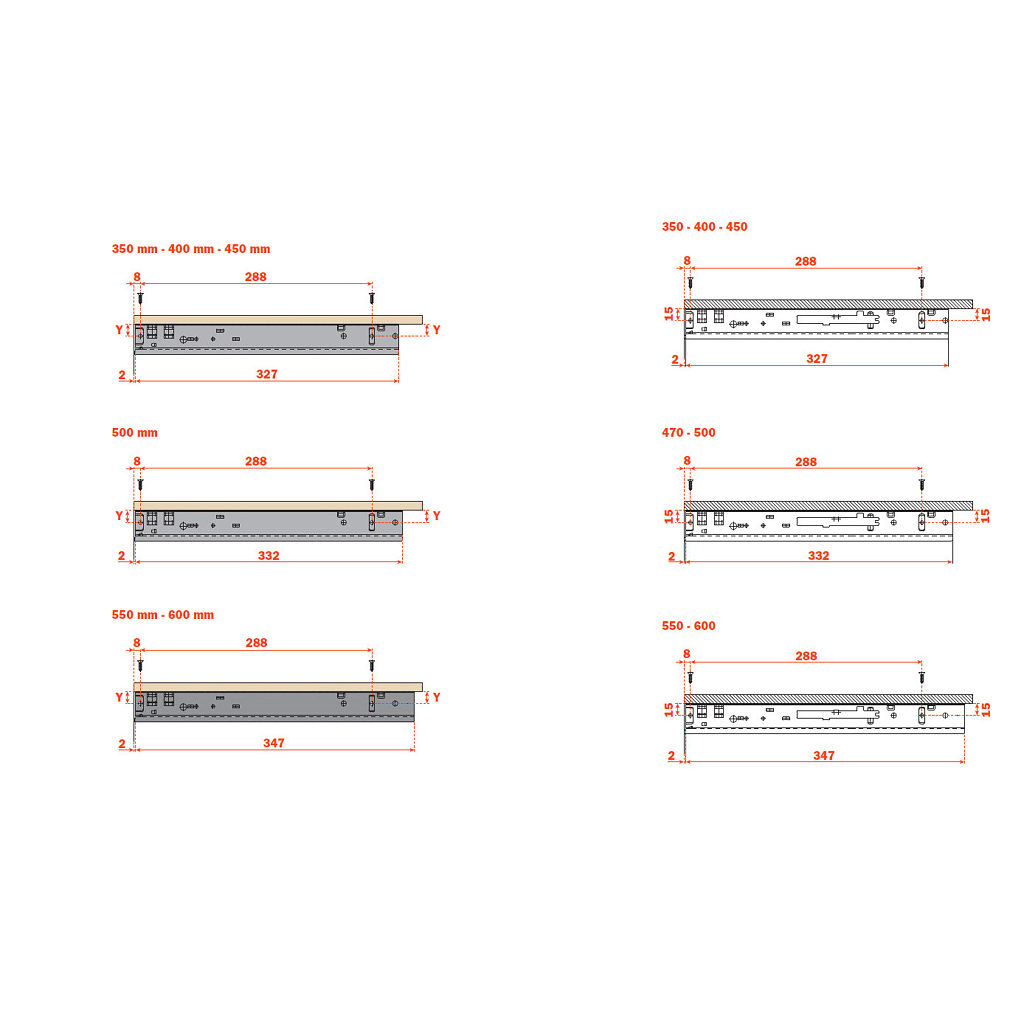

• Shelf rear hook information

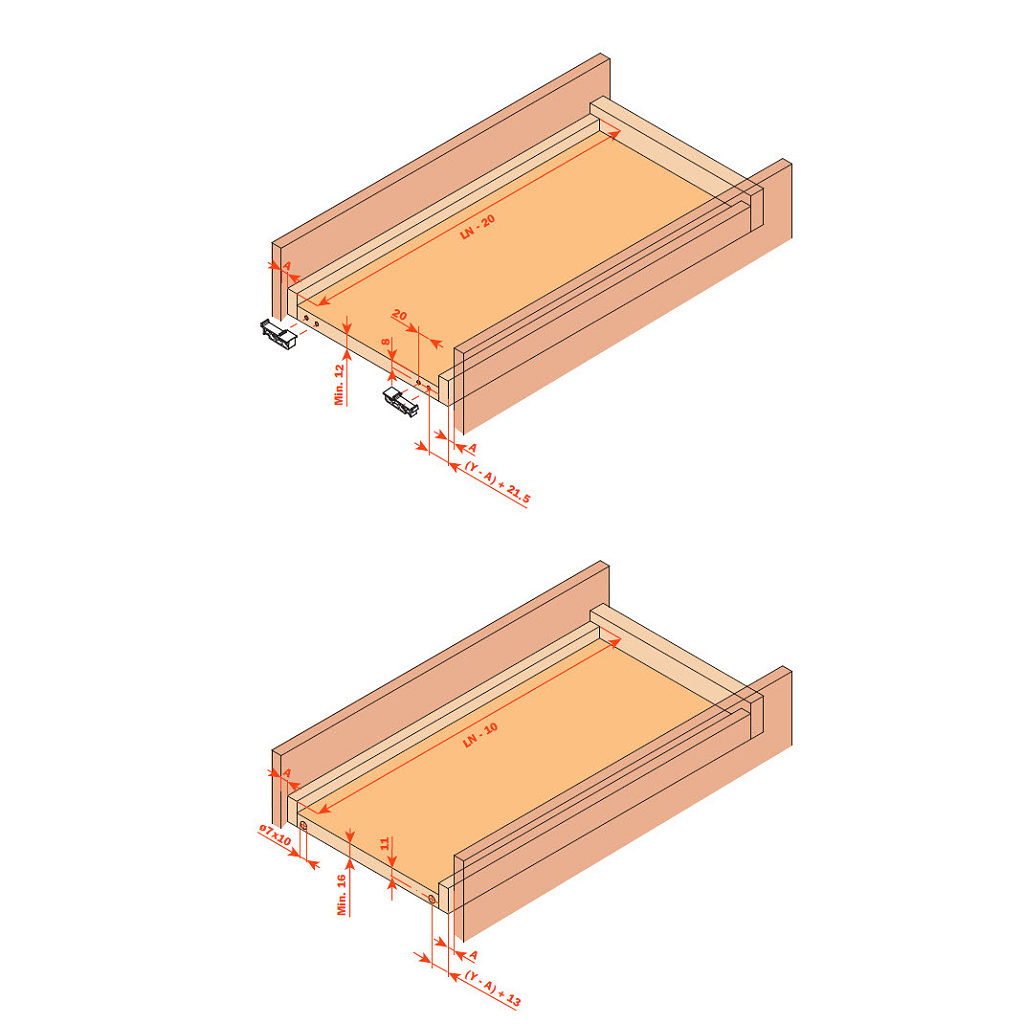

• Shelf dimensions - top view
