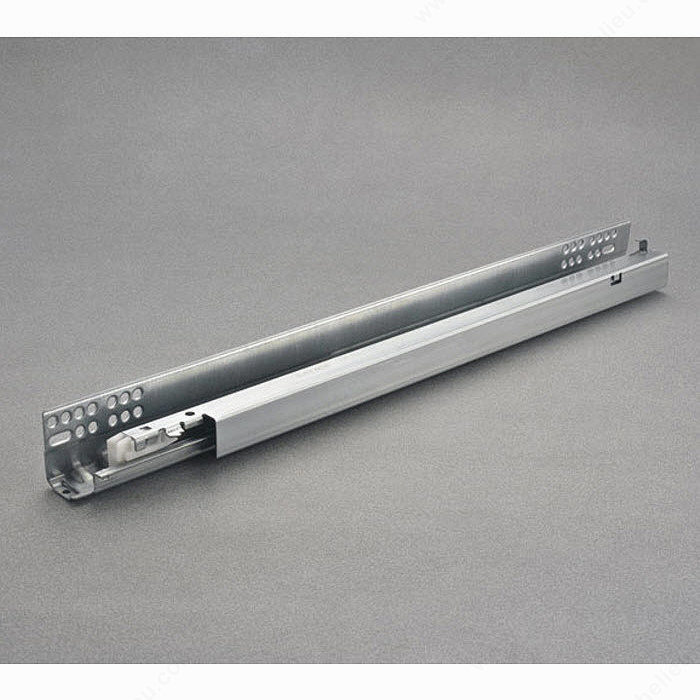

Richelieu A7557381 FUTURA Slide for 5/8 in Material with Push-to-Open System for Frameless Cabinets - Full Extension Concealed Undermount

Richelieu A7557381 FUTURA Slide for 5/8 in Material with Push-to-Open System for Frameless Cabinets - Full Extension Concealed Undermount

PUSH; The opening system is fully integrated in the runner. A slight pressure of the drawer front is enough for the drawer to self-open.

Advantages and benefits

- ANSI - Grade 1
- Load capacity: 100 lbs static/75 lbs dynamic
- With Push opening system
- Adjustable clips allow for easy drawer insertion and removal
- The drawer is latched when closed
- Finish: bright zinc-plated
- For 16 mm (5/8") max. drawer material

Important information

Static weight: 100 lbs.

Dynamic weight: 75 lbs.

Resources

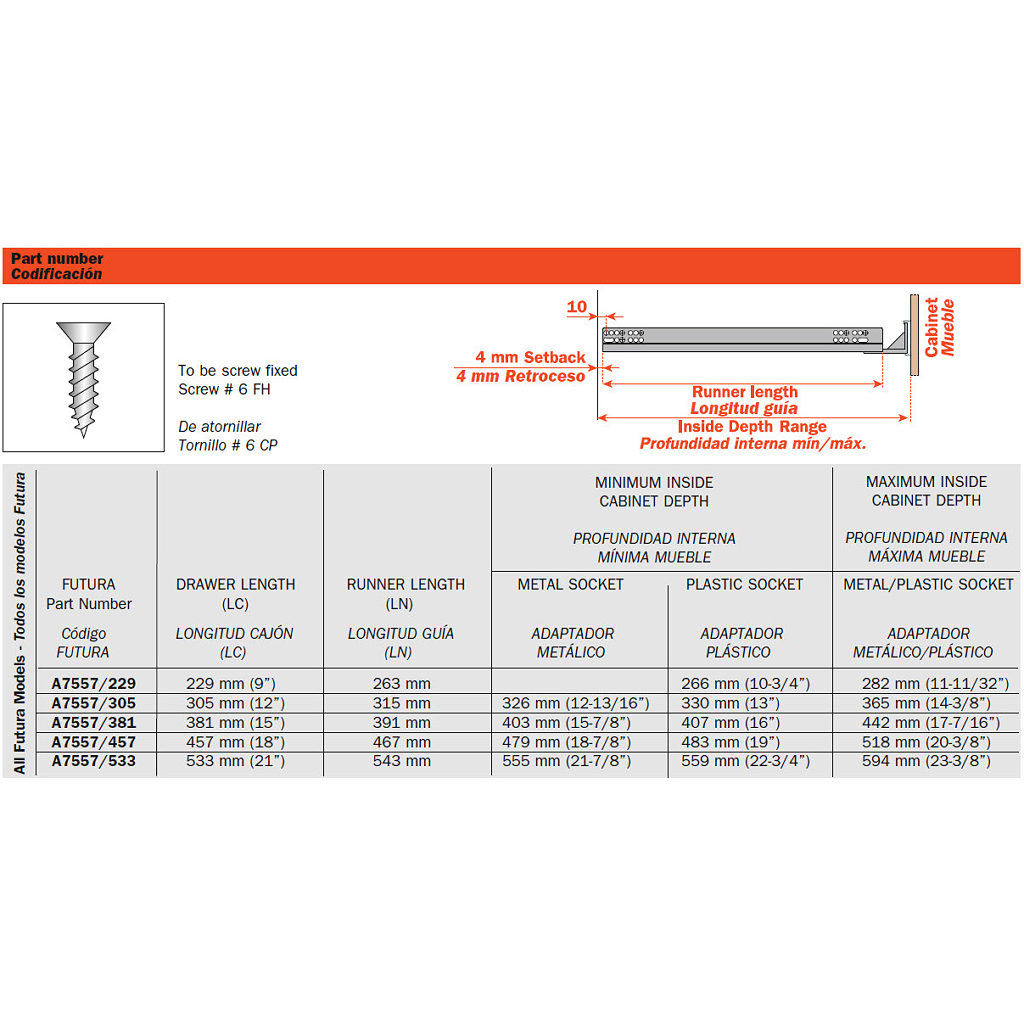

• Line art

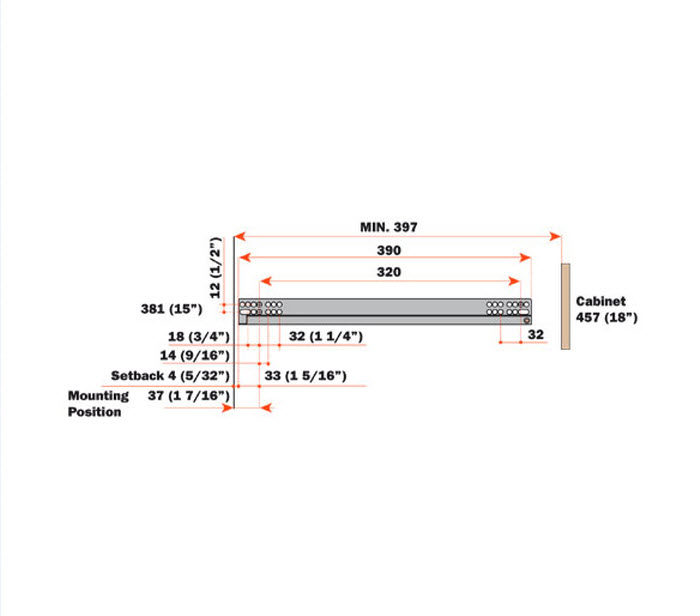

• Line art

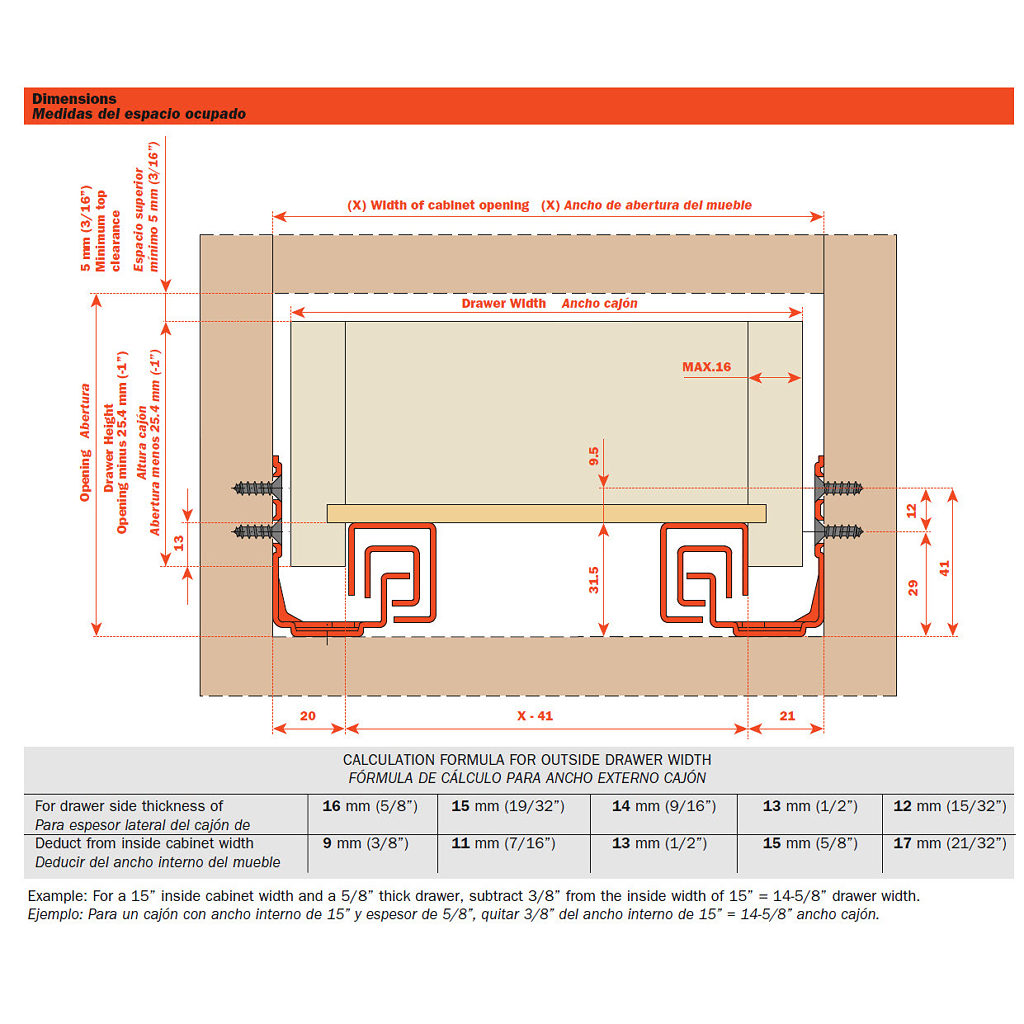

• Line art
