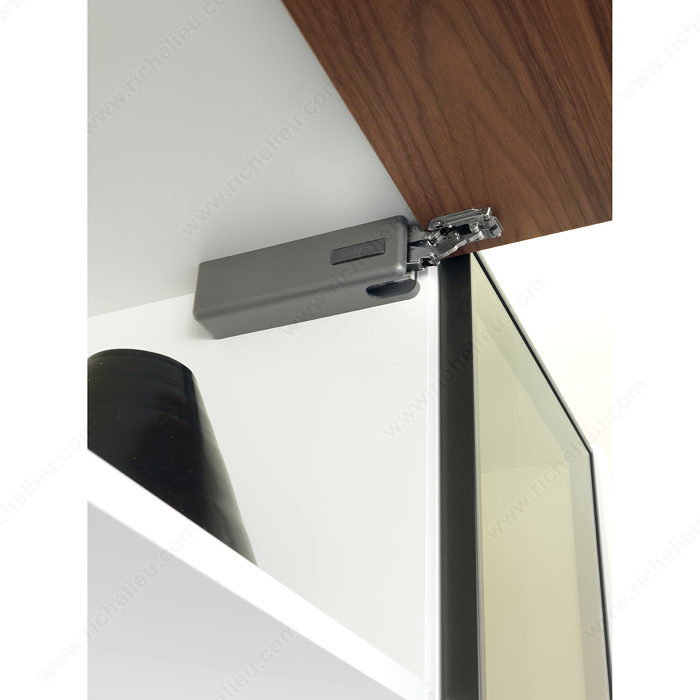

Richelieu FRAKFEPFSN9 Wind Lift System - PushWind is a new innovative lift door system for flap doors. It stands out for its compact size, elegance and discretion. Thanks to its small size, it takes up minimal space, which makes it ideal for flap doors that are common in kitchens. The Wind Lift System contains an integrated damping system, for a soft closing or a push-to-open system for doors without a handle.
- Opening pressure mechanism (Push series)
- Door thickness - maximum: 28 mm (11/8"), minimum: 16 mm (5/8")
- Overlay from 16 mm to 20 mm

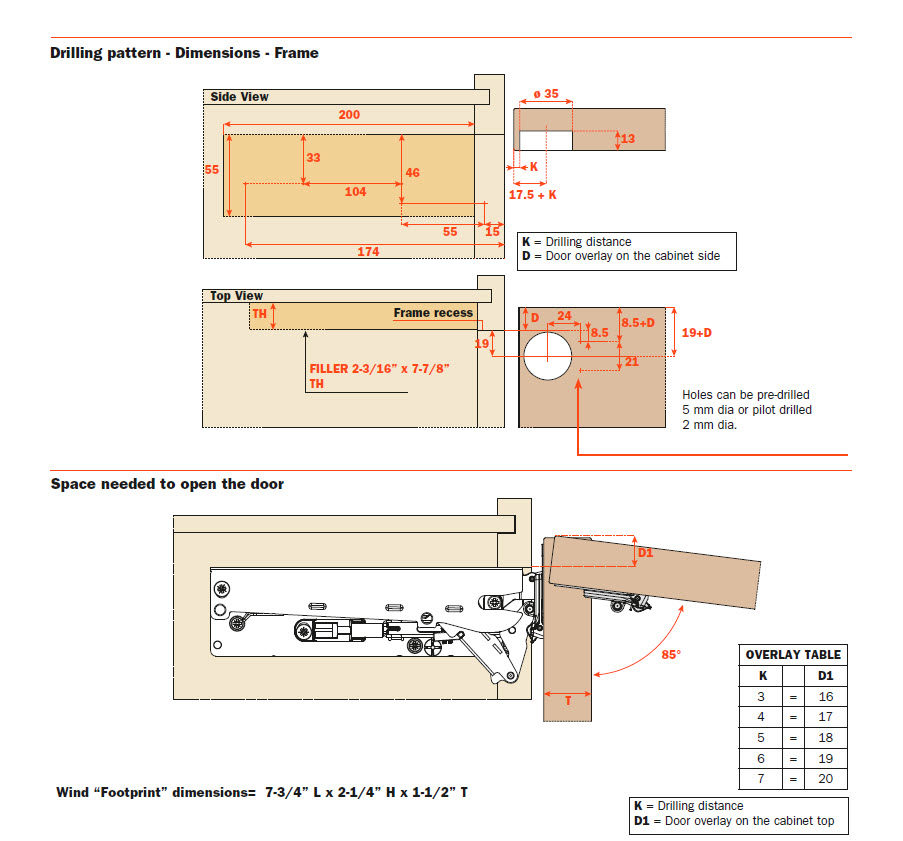

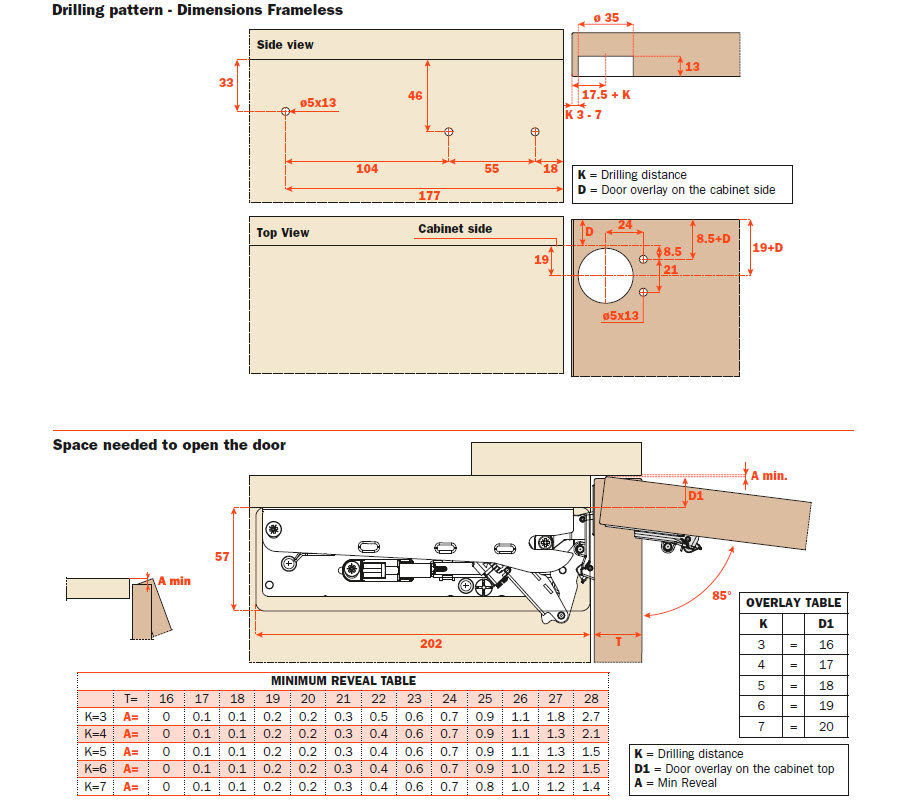

- Drilling of the door from 3 mm to 7 mm of the edge
- Depth adjustment: -1 mm, +3 mm
- Lateral adjustment: +2 mm, -2 mm
- Height adjustment: +2 mm, -2 mm
Advantages and benefits

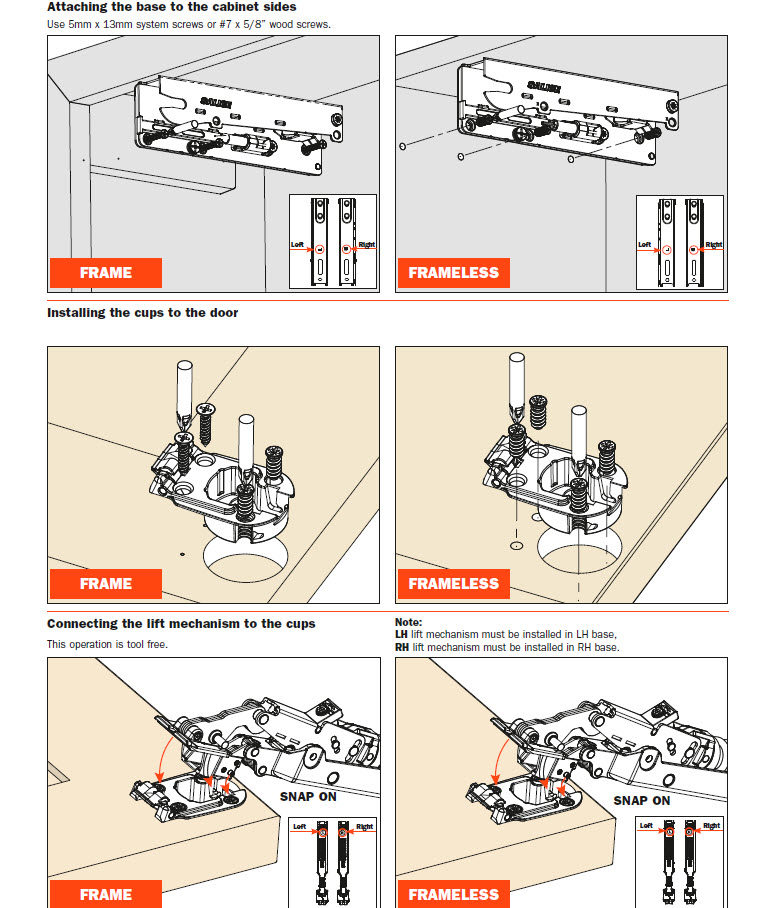

- Installs on the side of the cabinet or under the top
- Possibility of corner furniture
- Minimum space in the box
- Available in version with damper and push opening
- Choice of five tensions
- Quick installation by insertion
- Angle limiter already included
- Soft closure
Important information
Cover kits are sold separately. A cover kit includes a left and right cover plus 2 cover caps.

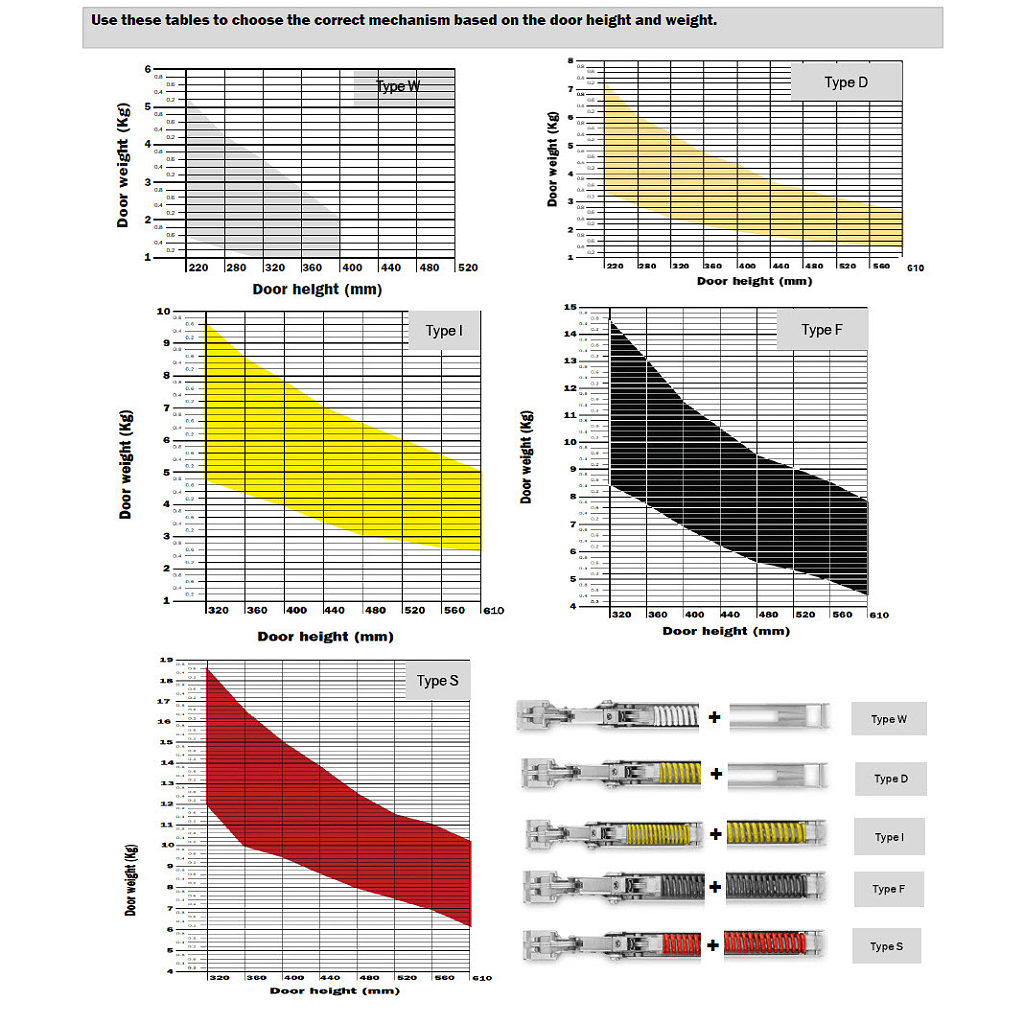

Select the arm according to the type of tension (color springs), the capacity, including the hardware and the height of the door. For more information on spring capacities, refer to the technical documents.
Included products

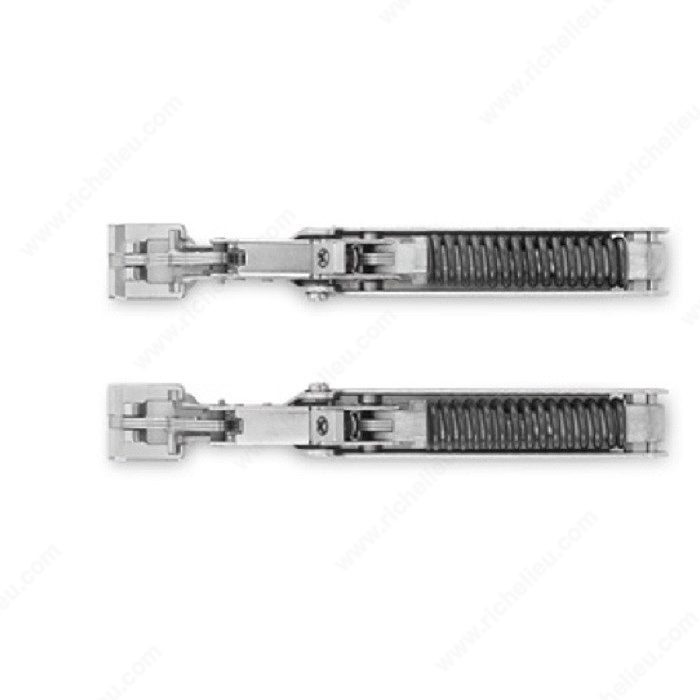

One Wind kit consists of a right and left mechanism, 2 door cups, and a left and right mechanism housing
Attributes
Ship via: Can Ship UPS
Brand: Salice
Door Height: 320 to 610 mm
Door Type: Wood Door
Load Capacity: 4.4 to 14.6 kg
Opening Angle: 94°
Opening Types NEW: Lift-Up Opening
Power Factor: 3 001 to 4 640
Product number: FRAKFEPFSN9
Product №: FRAKFEPFSN9
System Name: Wind F
Unit: Box
Unit 1: case - 10
Unit 2: case - 10
Resources
