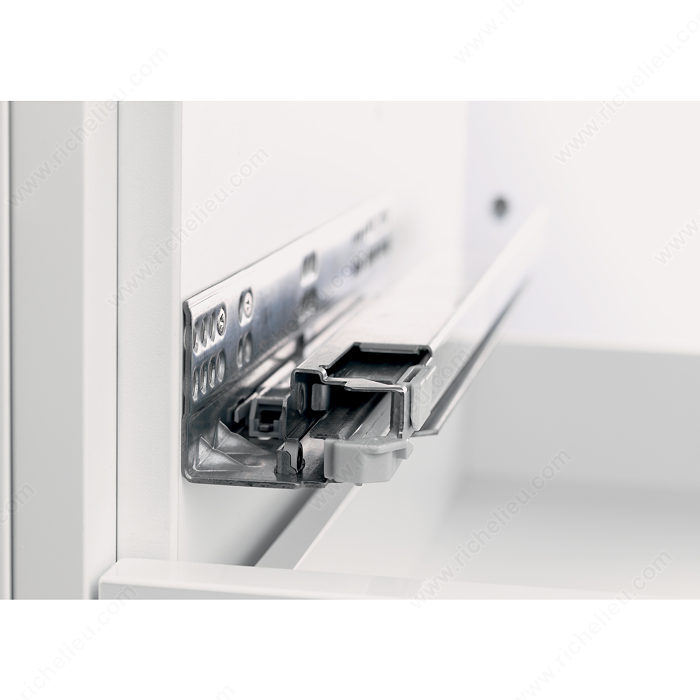

Richelieu GRDY16315 DYNAPRO16 3D Full Extension Concealed Undermount Slide with Soft-Close

Richelieu GRDY16315 DYNAPRO16 3D Full Extension Concealed Undermount Slide with Soft-Close

Integrated soft-close with 3-dimensional tilt adjustment for 5/8" (16 mm) drawer material

Advantages and benefits

- Frameless application for 5/8" (16 mm) drawer material
- Full extension with a synchronized mechanism
- Soft-close damping system
- Maximum connection drawer slide and front locking device
- Integrated 3-dimensional adjustment for alignment
- Height adjustment + 3.5 mm
- Side adjustment +/- 1.5 mm
- Tilt adjustment + 4.0 mm

Resources

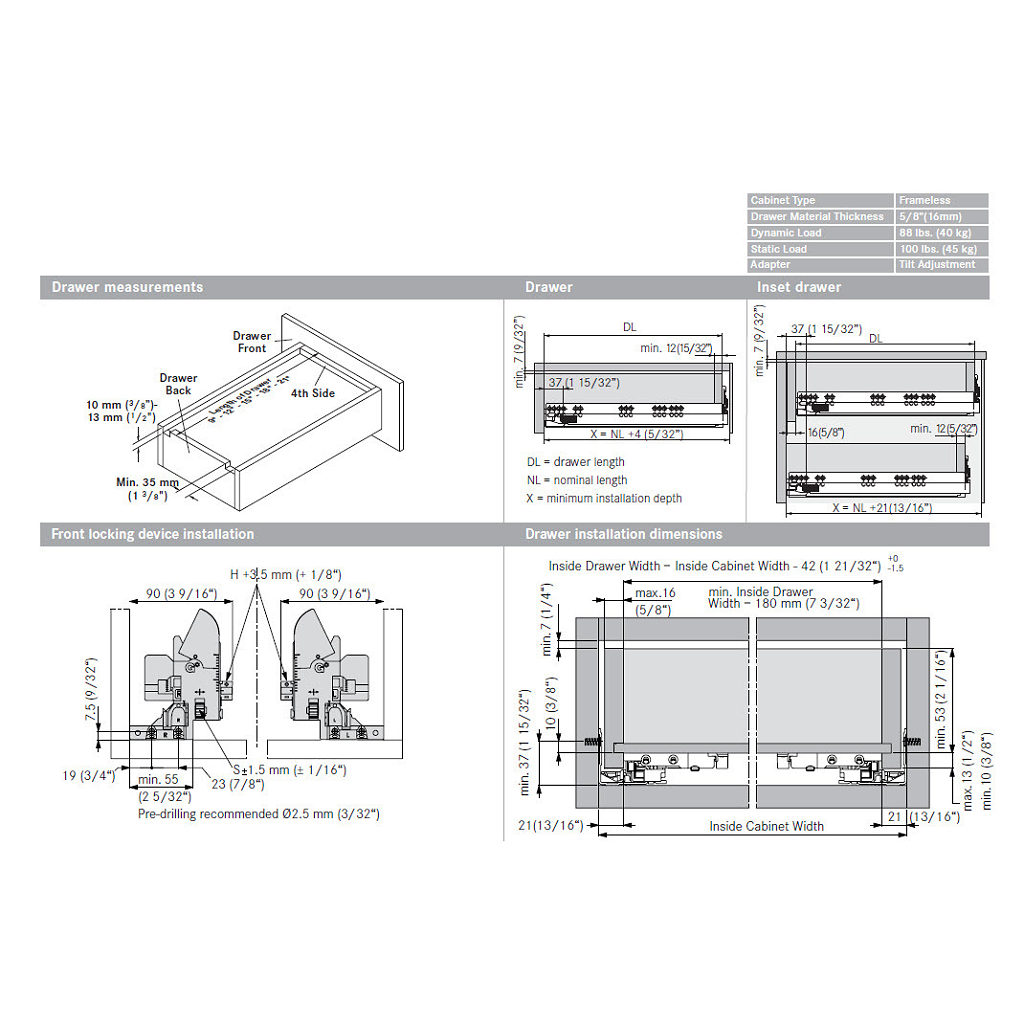

• Line art

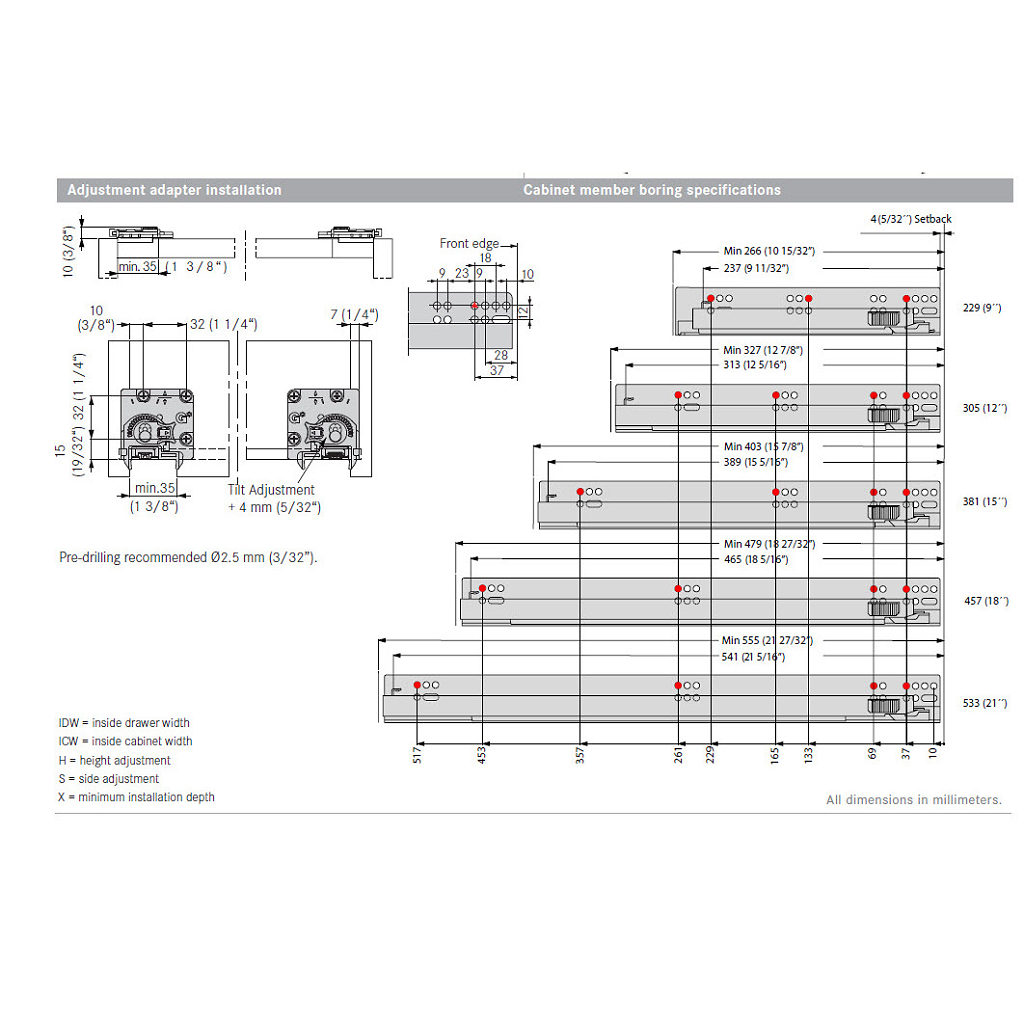

• Line art
