Richelieu GRDY163HD18 DYNAPRO16 HD Full Extension Undermount Slide with Soft-Close for Face Frame or Frameless Cabinets

Richelieu GRDY163HD18 DYNAPRO16 HD Full Extension Undermount Slide with Soft-Close for Face Frame or Frameless Cabinets

3D adjustment - Face frame or frameless applications from 1/2" (12.7 mm) up to 5/8" (16 mm) drawer material
- Face frame applications must be blocked out
- Full extension with a synchronized mechanism
- Soft-close damping system
- Required self-latching front locking device offers comfortable release
- Height adjustment ±3.5 mm
- Side adjustment ±1.5 mm
- Tilt adjustment +4.0 mm
- Depth adjustment +4.5 mm (optional)

Resources

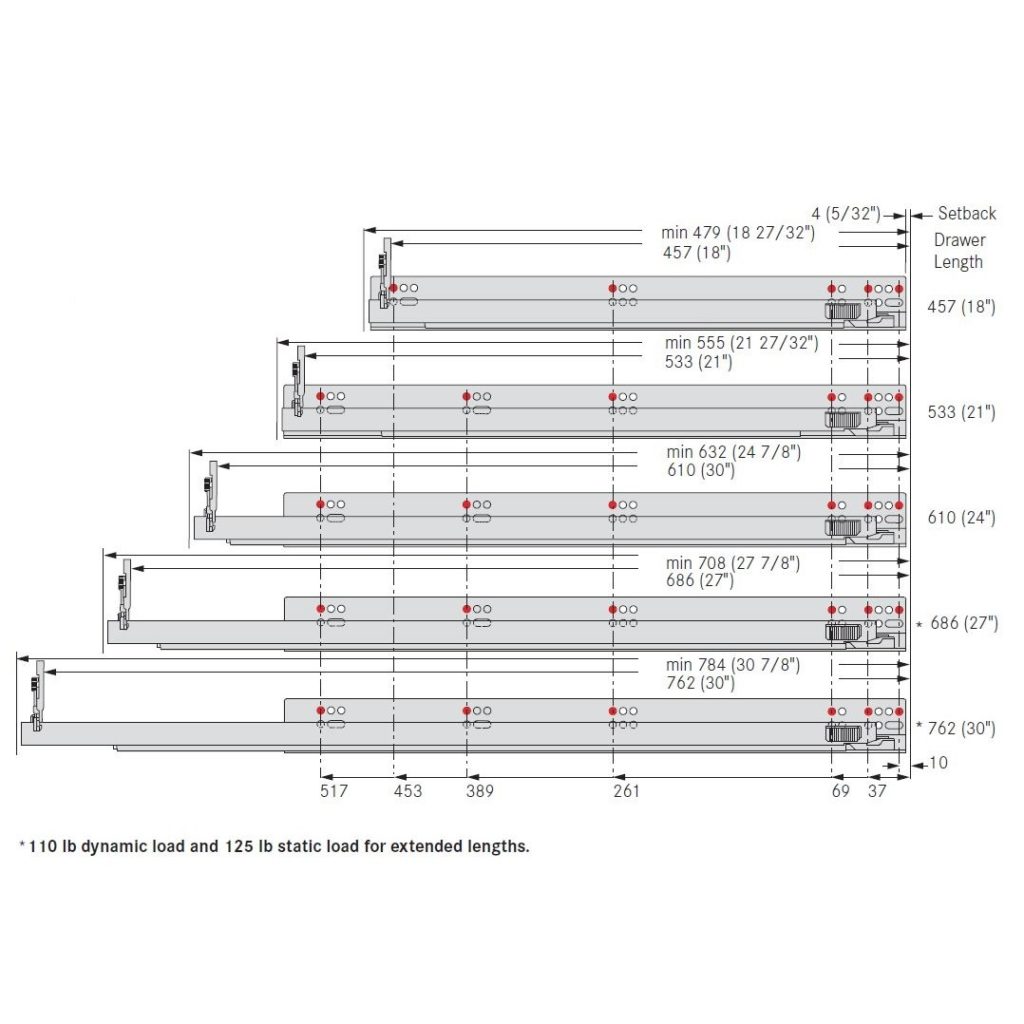

• Line art
