Richelieu KITAMB24SS25MM Tambour Door - Stainless Steel Finish 25 mm Slats

Richelieu KITAMB24SS25MM Tambour Door - Stainless Steel Finish 25 mm Slats

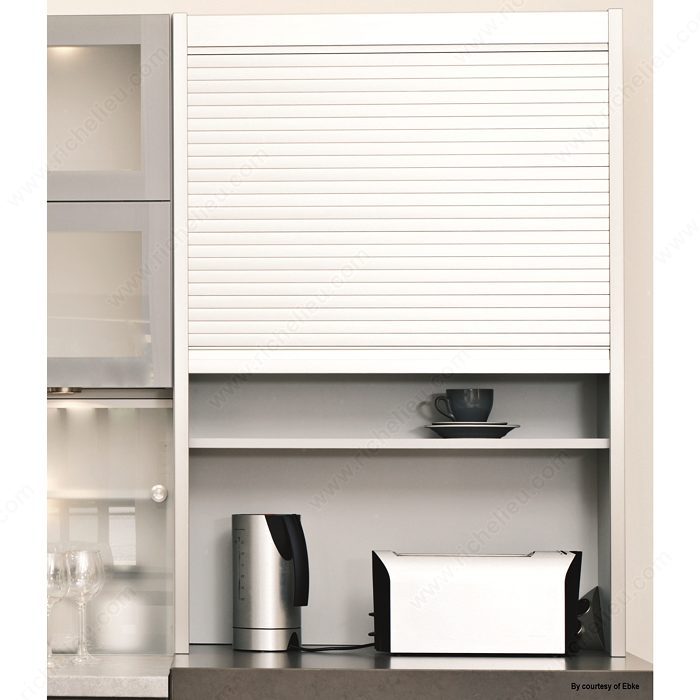

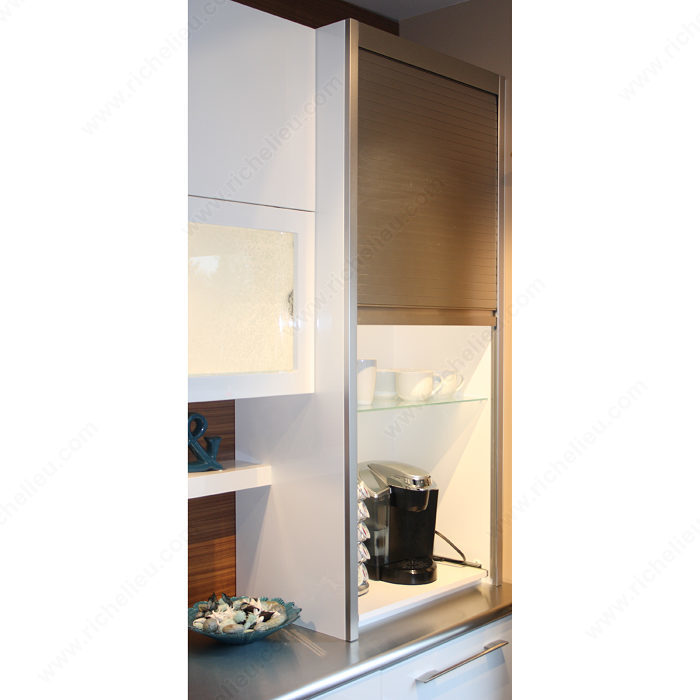

Robust rolling mechanism - C3 Tambour doors provide a unique and high quality detail to interior design, especially in kitchens and offices.

Advantages and benefits

- Does not require cutting.
- Quick installation.
- Complete components in the box.
- Practical: full access to the contents of the cabinet.
- Space-saving: the door opens inside the cabinet and does not obstruct the work area.
- Functional: soft-opening vertical door.
- Versatile: use for new applications and renovation.

Important information

The dimensions of the set are based on the external dimensions of cabinets and are suitable for a three-sided cabinet. A notch in the rail is required for a four-sided cabinet. Using a panel with a thickness of 5/8" (16 mm) gives a precise finish between the panel and rail, while the use of a panel with a thickness of 3/4" (19 mm) gives a finish that reveals 3 mm of panel.
An internal depth of >=290 mm is required for installation.

Application

- Kitchen and bathroom cabinets
- Audio-video furniture
- Residential cabinets and closets
- Shop displays
- Office furniture

Included products

Slats
Non-Locking Metallic Handle Profile
Handle Gliders
Rail (Track)
End Caps
Cover Profile
Cover Profile Base
Heavy-Duty Roller System (C3 Counterbalance)
#6 x 1/2" Flat Head Screws
#6 x 1/2" Pan Head Screws
8 - 18 x 1" Tapping Screws
5/16 x 1" Wooden Dowels
1 Grip Handle Stopper

Resources

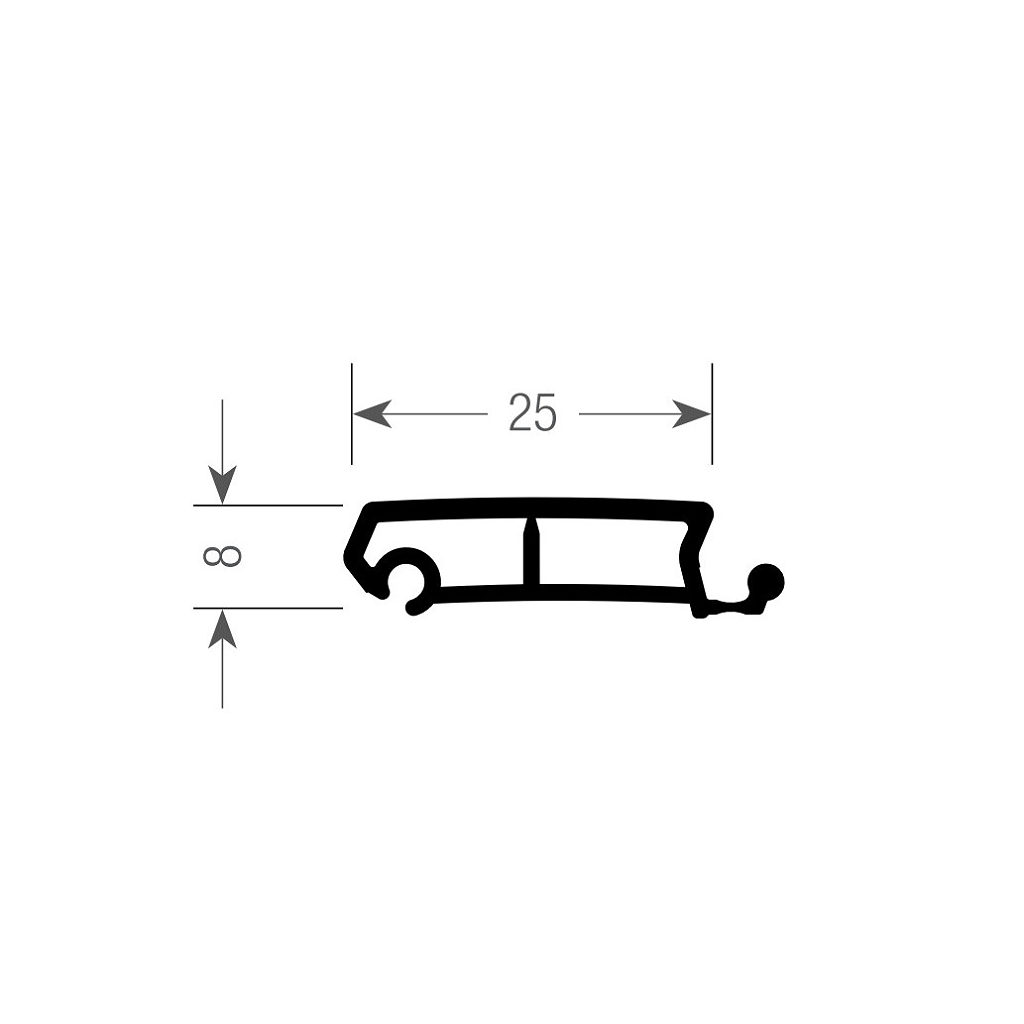

• Line art - Slats
• Instructions

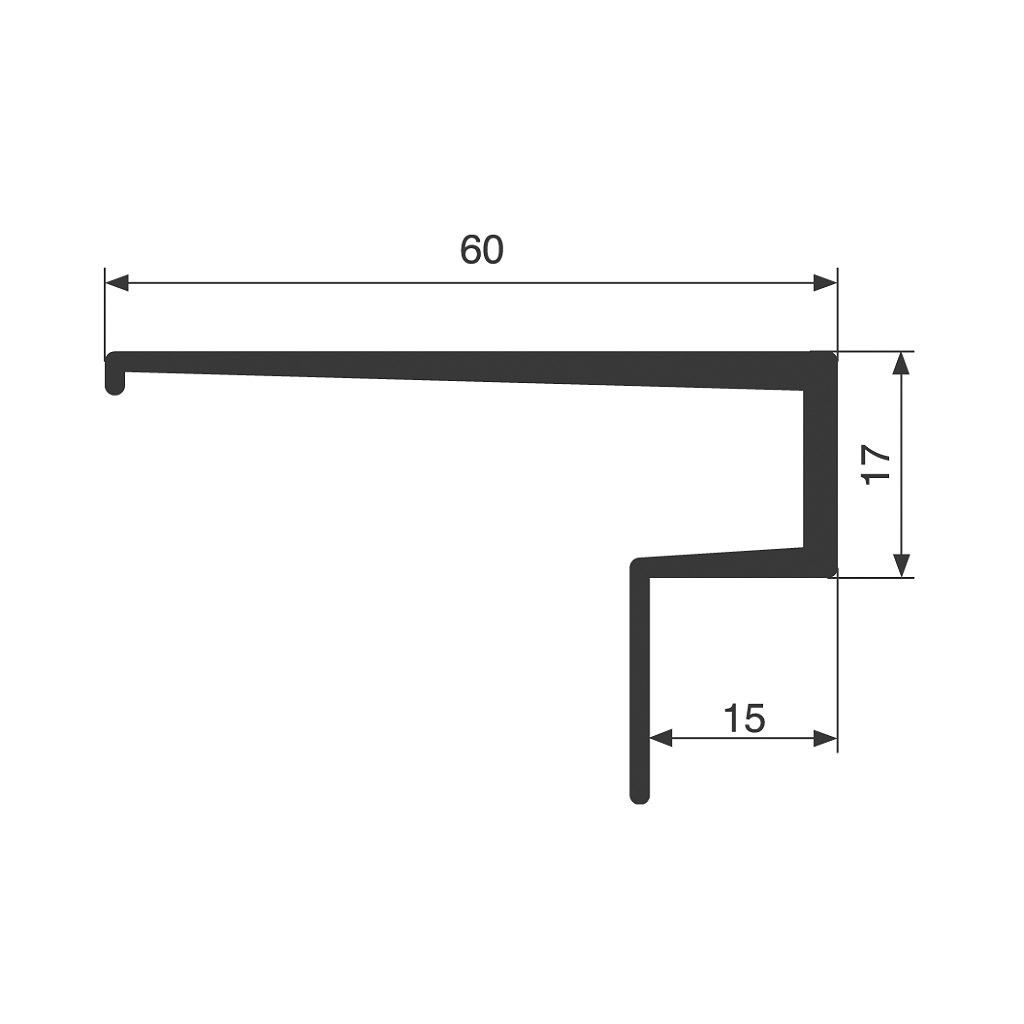

• Line art - Cover profile
