Richelieu SLUELANS4 Swing Lift-Up Stay

Richelieu SLUELANS4 Swing Lift-Up Stay

Sugatsune Swing Lift-Up Stay

*** Connecting bar not included (needed for installation). See available length below. ***

Advantages and benefits

- Lift assist mechanism for extra light opening
- Door stays in any desired position
- Damper equipped for soft and silent closing at the end

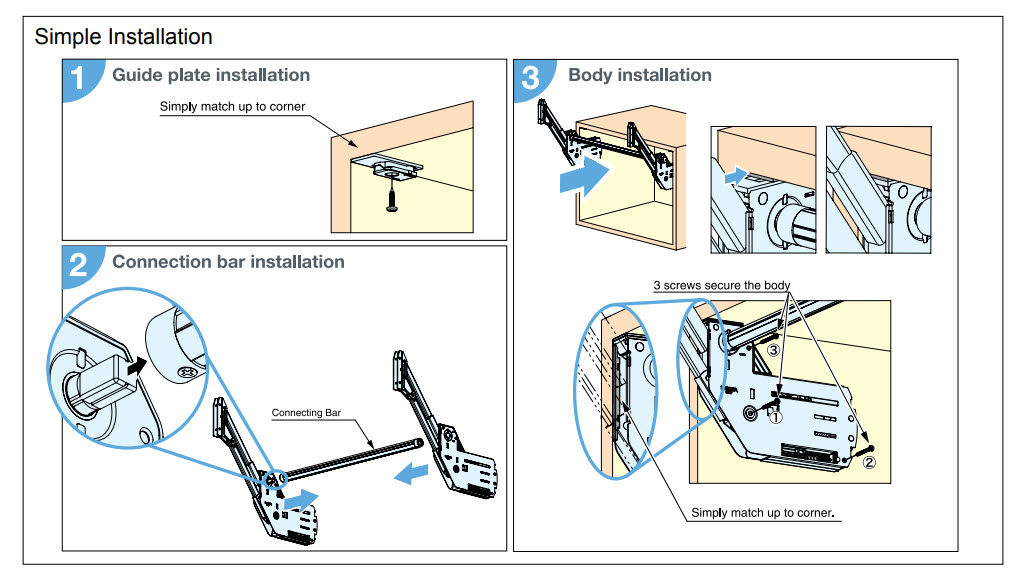

- Simple installation by mounting guide plate and slide in main body
- No hinges required
- Connecting bar stays on top for maximum access inside the cabinet

Important information

Minimum inside cabinet height is 14 13/16 in (360 mm)

Door weight includes handle

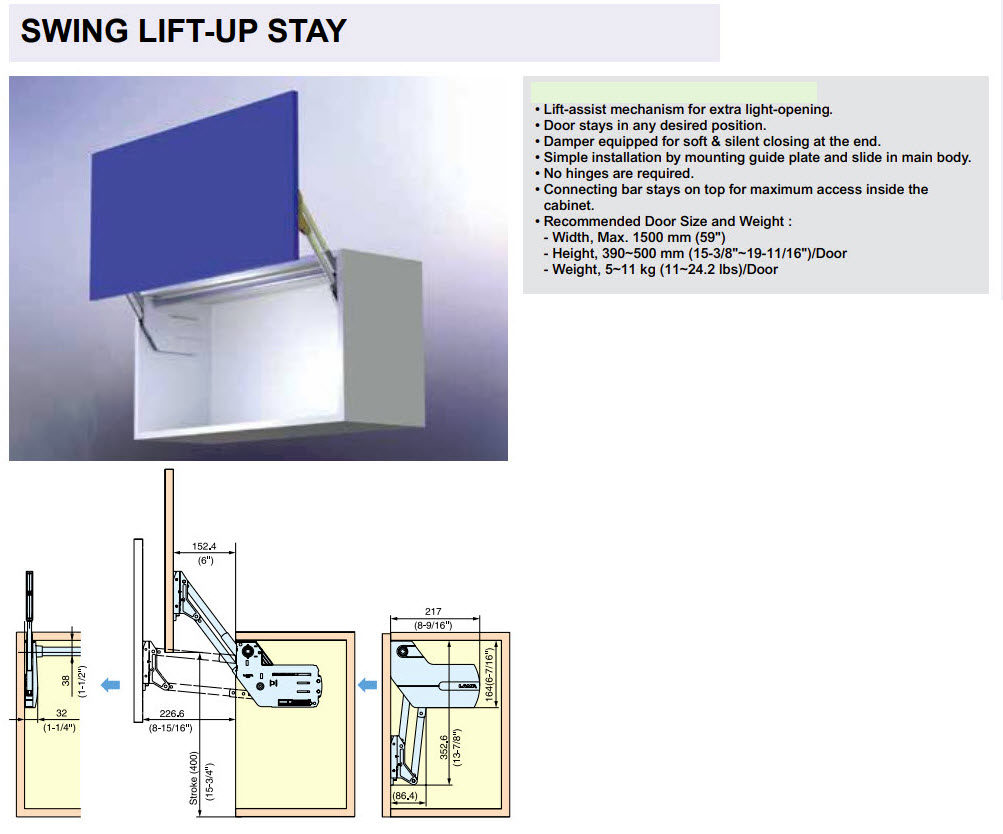

Recommended door size and weight:
- Max width: 59 in (1500 mm)
- Height: 15 3/8 in to 19 11/16 in (390 mm to 500 mm) per door
- Weight: 11 lb to 24.2 lb (5 kg to 11 kg) per door

*** Connecting bar not included (see required products) ***

Resources

• Line art
• Instructions
