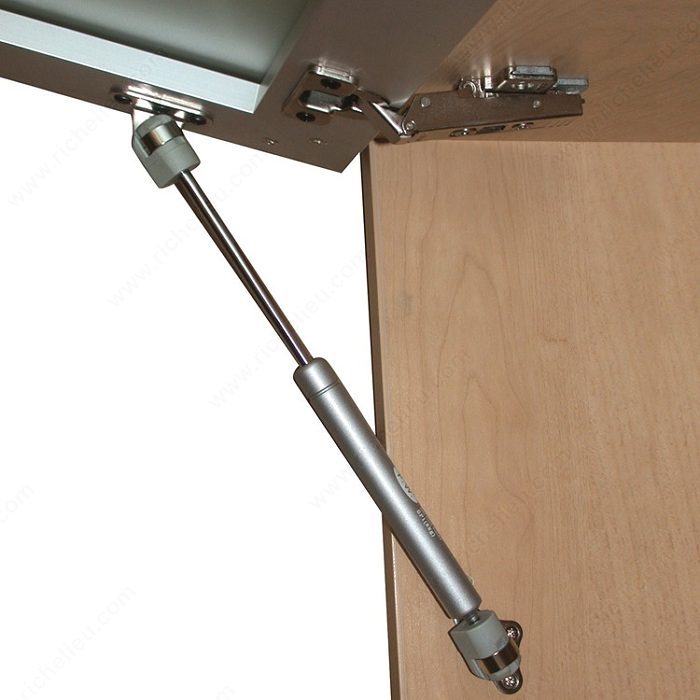

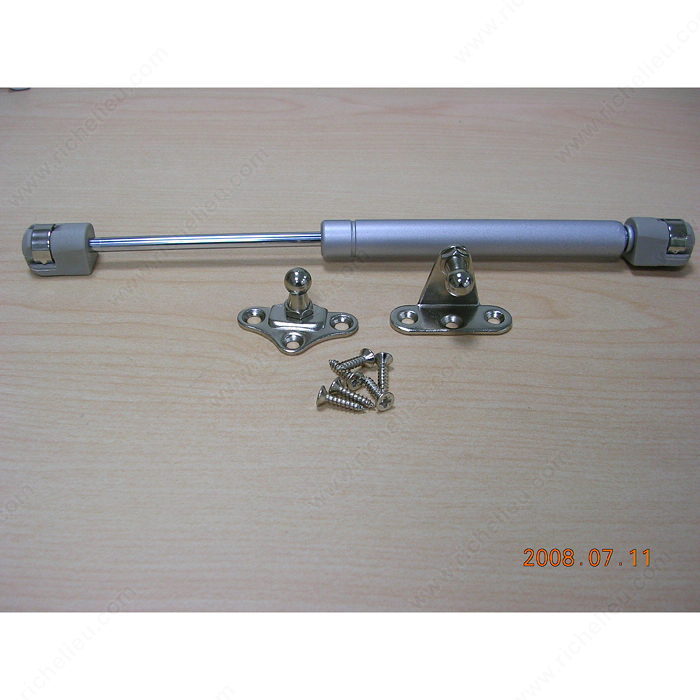

Mechanism for lift-up doors. Opening is activated by a gas piston for smooth movement.

Advantages and benefits

- Weight capacity: max. 12 kg (26.45 lb.)
- Opening angle: 80° to 100°
- Can be installed on wood or aluminum-framed doors (brackets not included).

Important information

- 100° hinges are required for installation (not included).
- Note: for doors less than 3 kg, use 1 piston; for doors more than 3 kg, use 2 pistons.
- 2 pistons are required for doors over 750 mm (29-1/2") in height.

Application

Multiple applications including kitchens, closets, offices, and more.

Resources

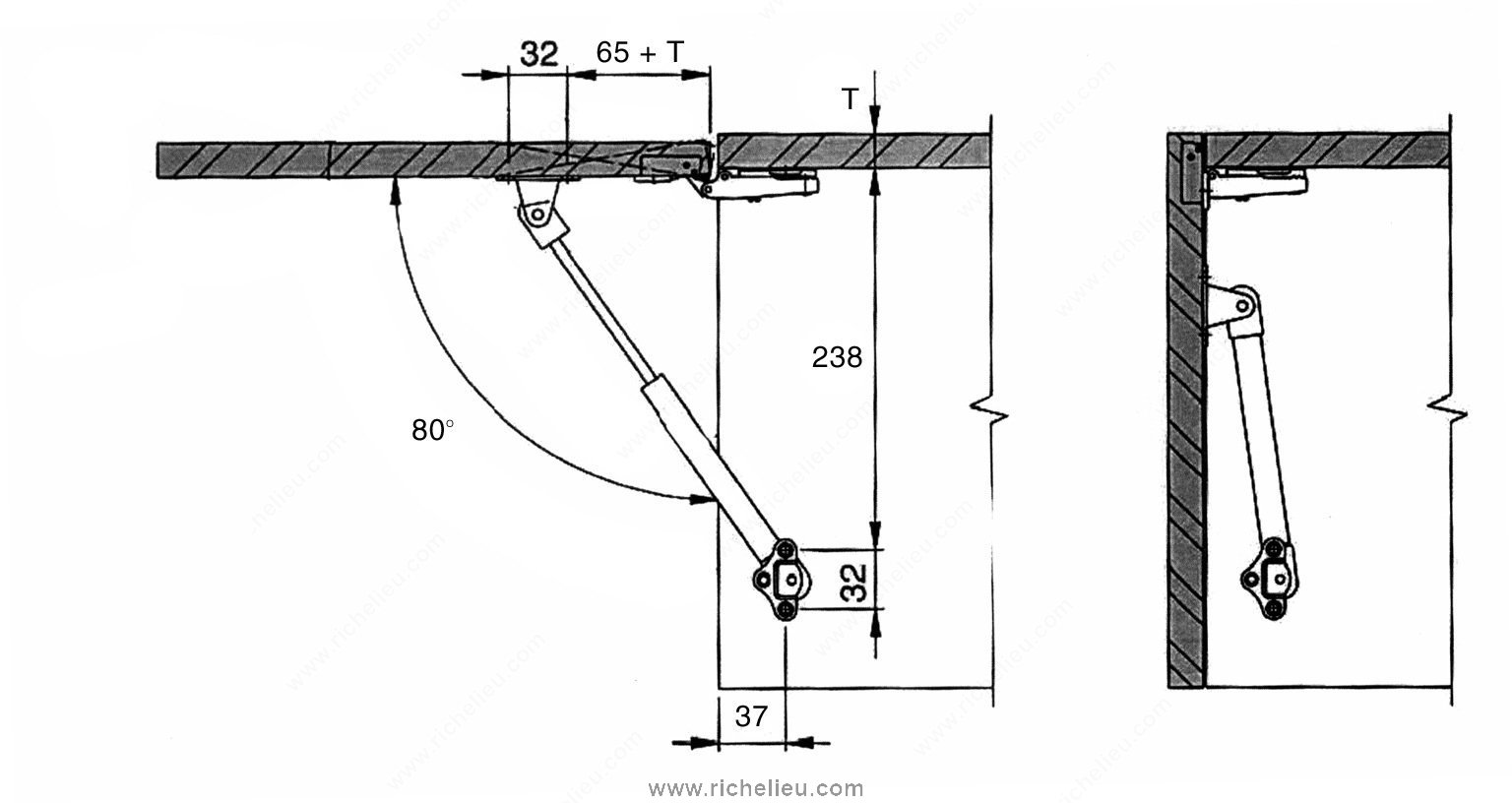

• Line art

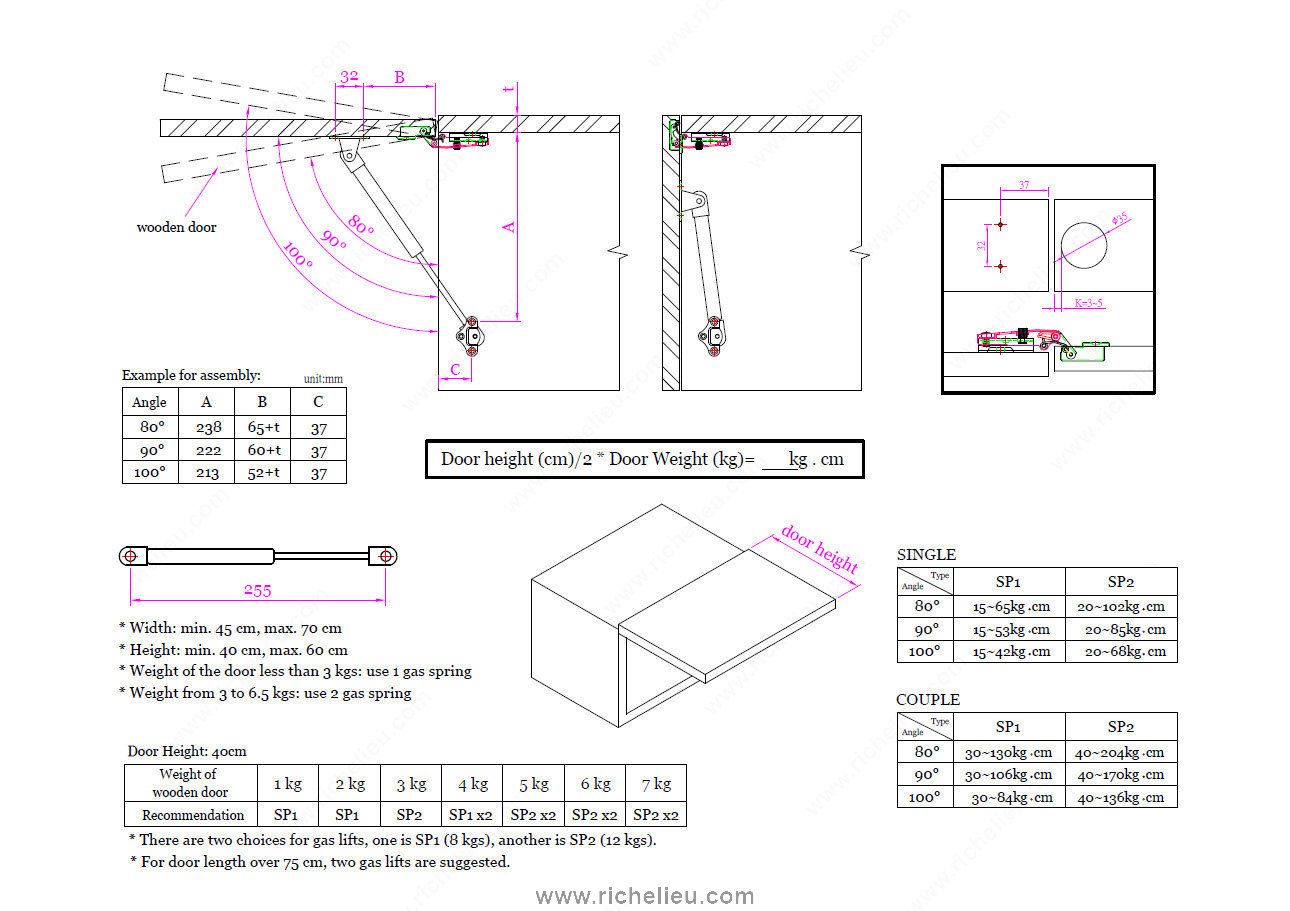

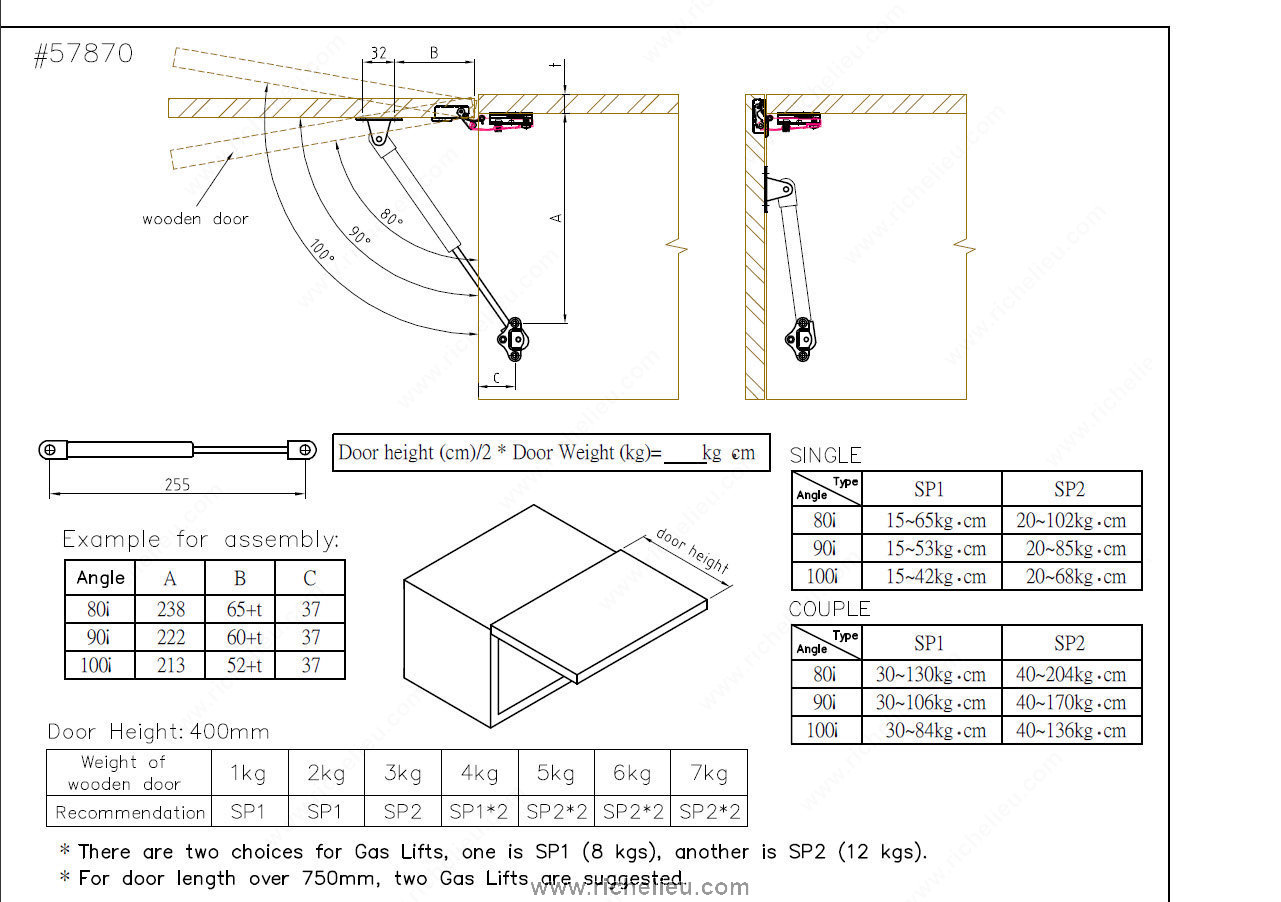

• Instructions
