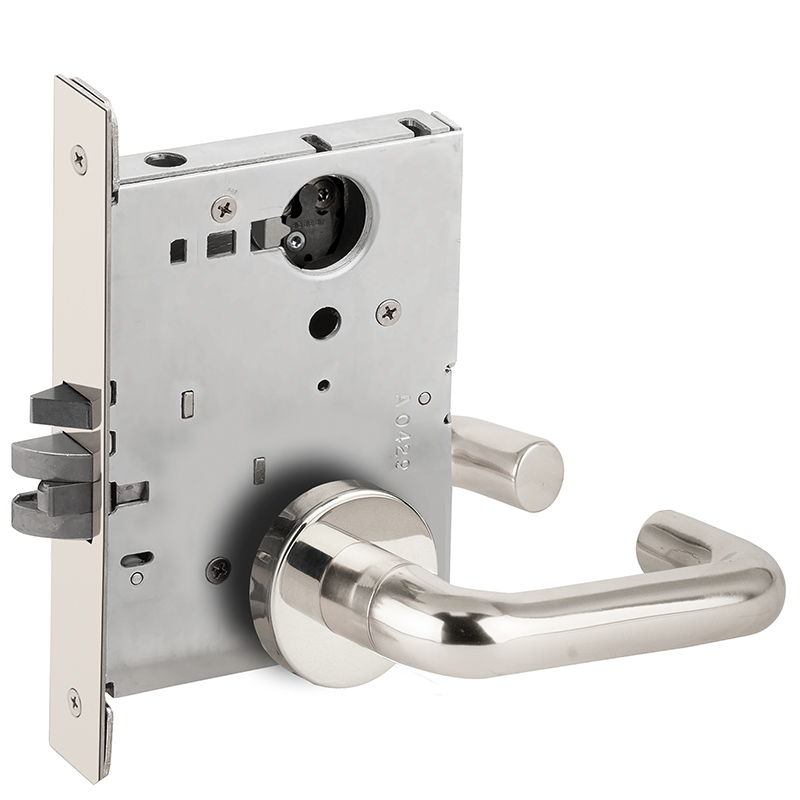

Schlage L9080L 03A 625 Lock Mortise Lock

Attributes

Ship via: Can Ship UPS

Ansi Function: F07 - Storeroom/Exit

Baa Qualified: Yes

Bolt Protection: 3/4"

Country of Origin: Mexico

Cylinder Type: Less Cylinder

Door Thickness: 1-3/4"

Dust Box: Plastic

Finish: 625/US26

Finish Description: Bright Chrome

Fire Rated: 3 Hours {A}

Function: 9080-Storeroom Lock

Function Family: Storeroom

Grade: Grade 1

Hand: Field Reversible

Latch Backset Dim: 2-3/4"

Latch Type: Dead Latch (Guarded)

Lever Knob Design: 03 - Lever

Lever Knob Design Family: Straight Return Lever

Limited Warranty: 3 Years

Lock Face Size: 8" x 1-1/4"

Manufacturer Function Description: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

Pocket Dimensions: 6-5/8" x 4-1/2"

Projection: 2.813"

Restrictions: None

Rose Escutcheon Design: A - Rose

Rose Escutcheon Dimensions: 2-1/8"

Screws: Combination

Series: L9000 Series Mortise Lock

Strike Height: 4-7/8"

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4"

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks
