Product Assemble-to-Order. Lead Time 2-5 days
Ship via: Can Ship UPS
Ansi Function: F30 - Asylum
Baa Qualified: Yes
Bolt Protection: 3/4"
Country of Origin: Mexico
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9082-Institution Lock
Grade: Grade 1
Hand: Field Reversible
Latch Backset Dim: 2-3/4"
Latch Type: Dead Latch (Guarded)

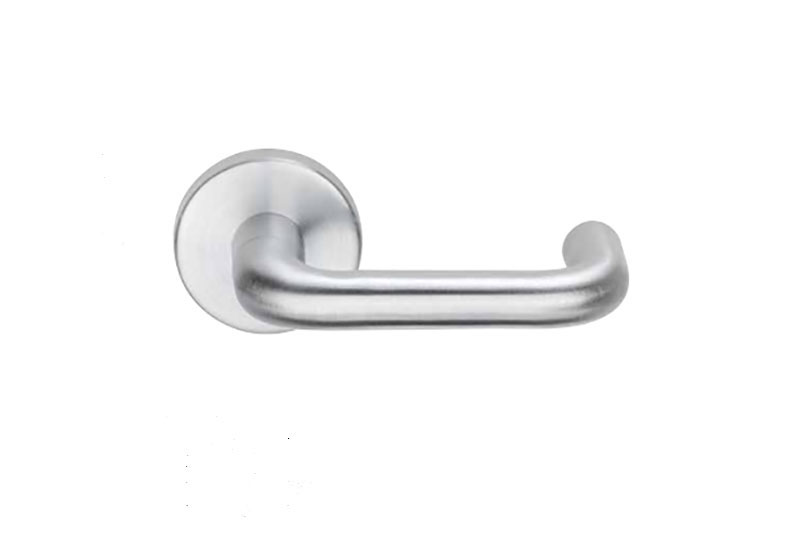

Lever Knob Design: 03 - Lever
Lever Knob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by key from either side. Knob/lever on both sides always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.
Projection: 2.813"
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L9000 Series Mortise Lock
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
