Product Assemble-to-Order. Lead Time 2-5 days
Ship via: Can Ship UPS
Ansi Function: F19 - Privacy/Bed/Bath
Bolt Protection: 3/4 In.
Country of Origin: Mexico
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9440-Privacy w Deadbolt
Grade: Grade 1
Hand: Field Reversible
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 2-3/4"
Latch Type: Combination Latch and Bolt
Lever Knob Design: 03 - Lever
Lever Knob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Function Description: Latchbolt retracted by lever/knob from either side. Deadbolt actuated by inside thumbturn. Throwing deadbolt locks outside knob/lever. Inside lever retracts both deadbolt and latchbolt and unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate. Inside lever always free for immediate egress.
Mechanical Option Description: Exterior Indicator DO NOT DISTURB
Projection: 2.813"
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Screws: Combination

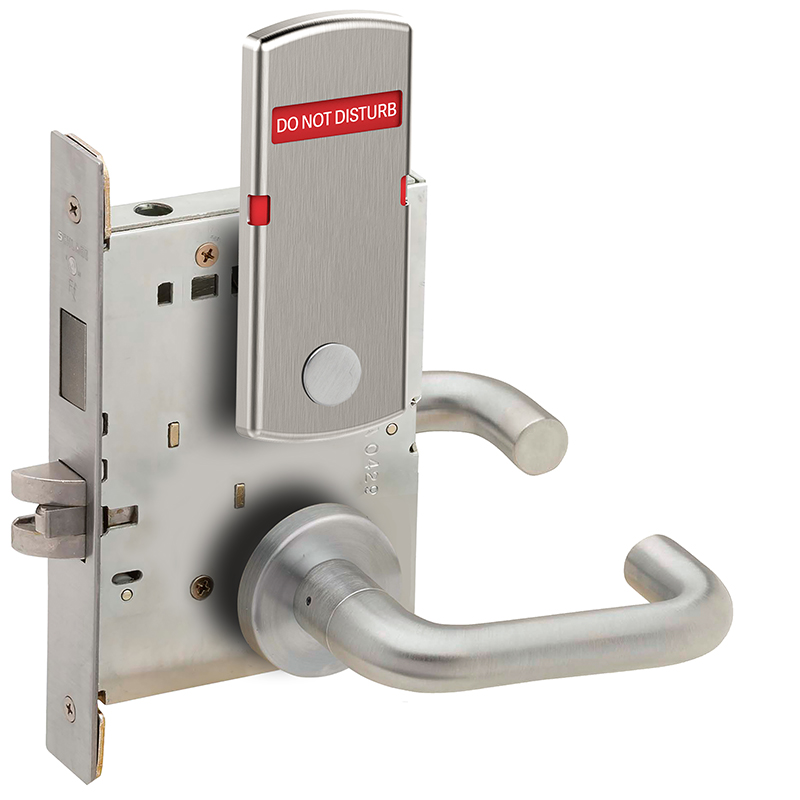

Series: L9000 Series Mortise Lock
Strike Height: 4-7/8 In.
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
