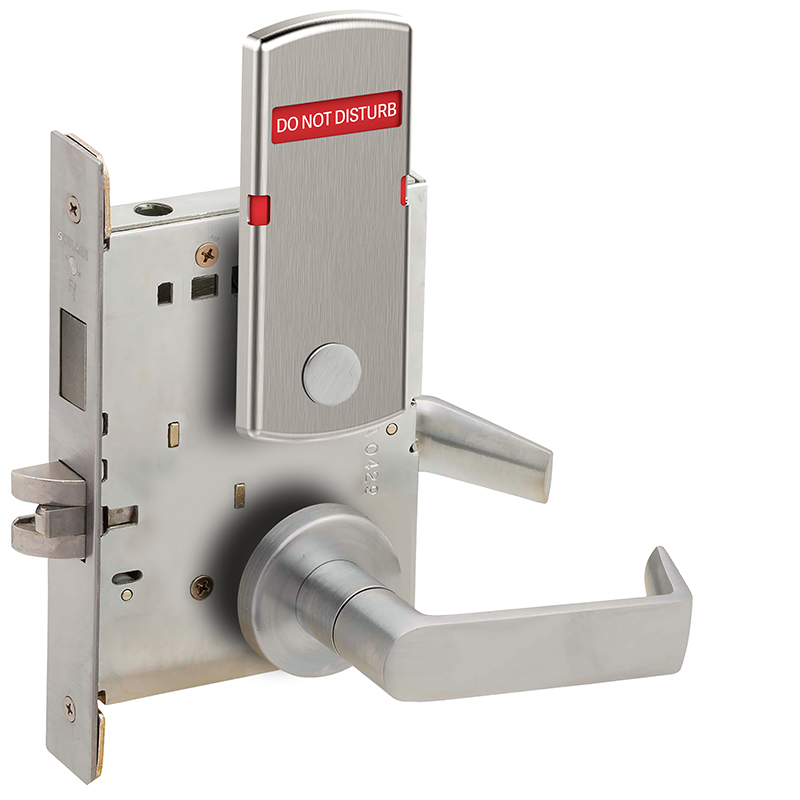

Schlage L9440 06A 626 L283-723 Lock Mortise Lock

0 Review(s) Write a Review
Your Price: $756.54
Retail Price:$1,297.00
You Save:$540.46(42%)

Schlage L9440 06A 626 L283-723 Lock Mortise Lock

Privacy Mortise Lock with Deadbolt, 06A Design, DO NOT DISTURB Indicator for Outside of Door, Satin Chrome
Part Number: SCH_L944006A626L283723
Availability: In Stock.

Choose Options

Schlage L9440 06A 626 L283-723 Lock Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Product Assemble-to-Order. Lead Time 2-5 days


Ship via: Can Ship UPS

Ansi Function: F19 - Privacy/Bed/Bath

Bolt Protection: 3/4 In.

Country of Origin: Mexico

Door Thickness: 1-3/4"

Dust Box: Plastic

Finish: 626/US26D

Finish Description: Satin Chrome

Fire Rated: 3 Hours {A}

Function: 9440-Privacy w Deadbolt

Grade: Grade 1

Hand: Field Reversible

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 2-3/4"

Latch Type: Combination Latch and Bolt

Lever Knob Design: 06 - Lever

Lever Knob Design Family: Straight Return Lever

Limited Warranty: 3 Years

Lock Face Size: 8 In. x 1-1/4 In.

Manufacturer Function Description: Latchbolt retracted by lever/knob from either side. Deadbolt actuated by inside thumbturn. Throwing deadbolt locks outside knob/lever. Inside lever retracts both deadbolt and latchbolt and unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate. Inside lever always free for immediate egress.

Mechanical Option Description: Exterior Indicator DO NOT DISTURB

Projection: 2-1/2"

Rose Escutcheon Design: A - Rose

Rose Escutcheon Dimensions: 2-1/8"

Screws: Combination

Series: L9000 Series Mortise Lock

Strike Height: 4-7/8 In.

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks
