Schlage L9440 12A 626 LH L283-711 Lock Mortise Lock

0 Review(s) Write a Review
Your Price: $756.54
Retail Price:$1,297.00
You Save:$540.46(42%)

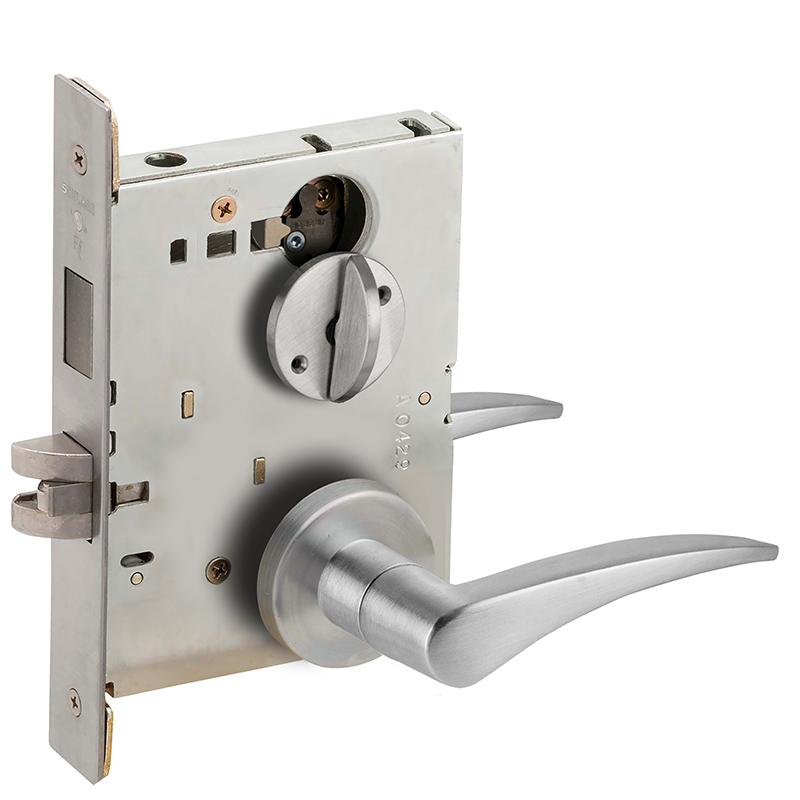

Schlage L9440 12A 626 LH L283-711 Lock Mortise Lock

Privacy Deadbolt Mortise with Emergency Turn, 12A Design, LOCKED/UNLOCKED Indicator for Inside of Door, Left Hand, Satin Chrome
Part Number: SCH_L944012A626LHL283711
Availability: In Stock.

Choose Options

Schlage L9440 12A 626 LH L283-711 Lock Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Product Assemble-to-Order. Lead Time 2-5 days


Ship via: Can Ship UPS

Ansi Function: F19 - Privacy/Bed/Bath

Baa Qualified: Yes

Bolt Protection: 3/4" Latch, 1" Deadbolt

Country of Origin: Mexico

Door Thickness: 1-3/4 In.

Dust Box: Plastic

Finish: 626/US26D

Finish Description: Satin Chrome

Fire Rated: 3 Hours {A}

Function: 9480-Storeroom Lock w Deadbolt

Grade: Grade 1

Hand: LH

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 2-3/4"

Latch Type: Combination Latch and Bolt

Lever Knob Design: 12 - Lever

Lever Knob Design Family: Straight Lever

Limited Warranty: 3 Years

Lock Face Size: 8 In. x 1-1/4 In.

Manufacturer Function Description: Latchbolt retracted by lever/knob from either side. Deadbolt actuated by inside thumbturn. Throwing deadbolt locks outside knob/lever. Inside lever retracts both deadbolt and latchbolt and unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate. Inside lever always free for immediate egress.

Mechanical Option Description: Interior Indicator LOCKED/UNLOCKED

Projection: 3.063"

Rose Escutcheon Design: A - Rose

Rose Escutcheon Dimensions: 2-1/8"

Screws: Combination

Series: L9000 Series Mortise Lock

Strike Height: 4-7/8 In.

Strike Number: 10-072 1316

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks
