Product Assemble-to-Order. Lead Time 2-5 days
Ship via: Can Ship UPS
Baa Qualified: Yes
Bolt Protection: 3/4" Latch, 1" Deadbolt
Country of Origin: Mexico
Door Thickness: 1-3/4 In.
Dust Box: Plastic
Finish: 626/US26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9480-Storeroom Lock w Deadbolt
Grade: Grade 1
Hand: Field Reversible
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 2-3/4"
Latch Type: Combination Latch and Bolt
Lever Knob Design: 01 - Lever
Lever Knob Design Family: Straight Lever
Limited Warranty: 3 Years
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Function Description: Latchbolt retracted by lever/knob from either side. Deadbolt actuated by inside thumbturn or outside coin turn. Throwing deadbolt locks outside knob/lever. Inside lever retracts both deadbolt and latchbolt and unlocks outside lever. Rotating coin turn retracts deadbolt and unlocks outside lever. Inside lever always free for immediate egress.
Mechanical Option Description: Interior Indicator LOCKED/UNLOCKED
Projection: 2.688"
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Screws: Combination

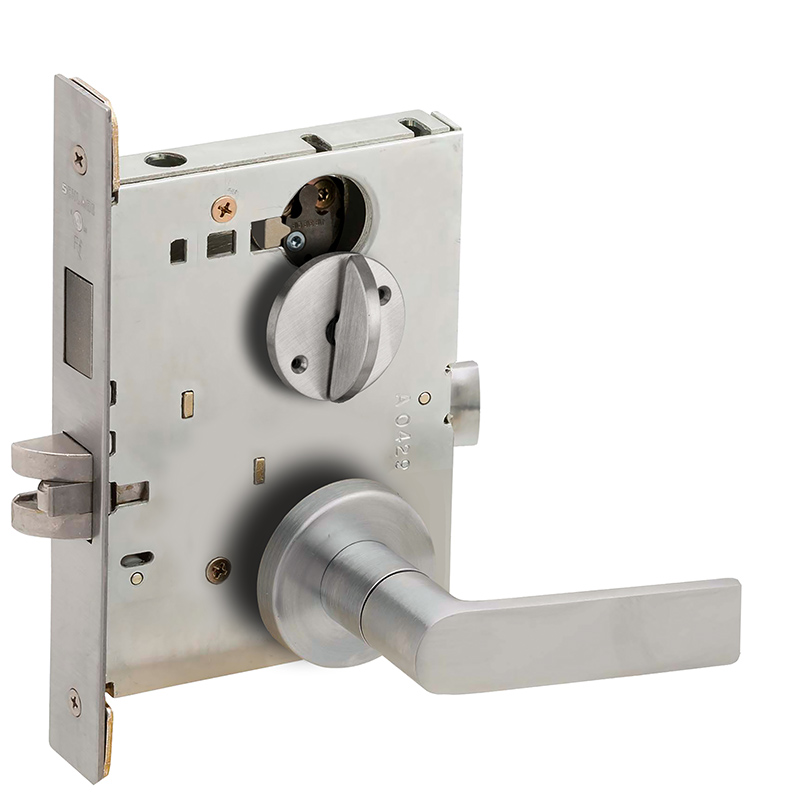

Series: L9000 Series Mortise Lock
Strike Height: 4-7/8 In.
Strike Number: 10-072 1316
Strike Type: ASA
Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
